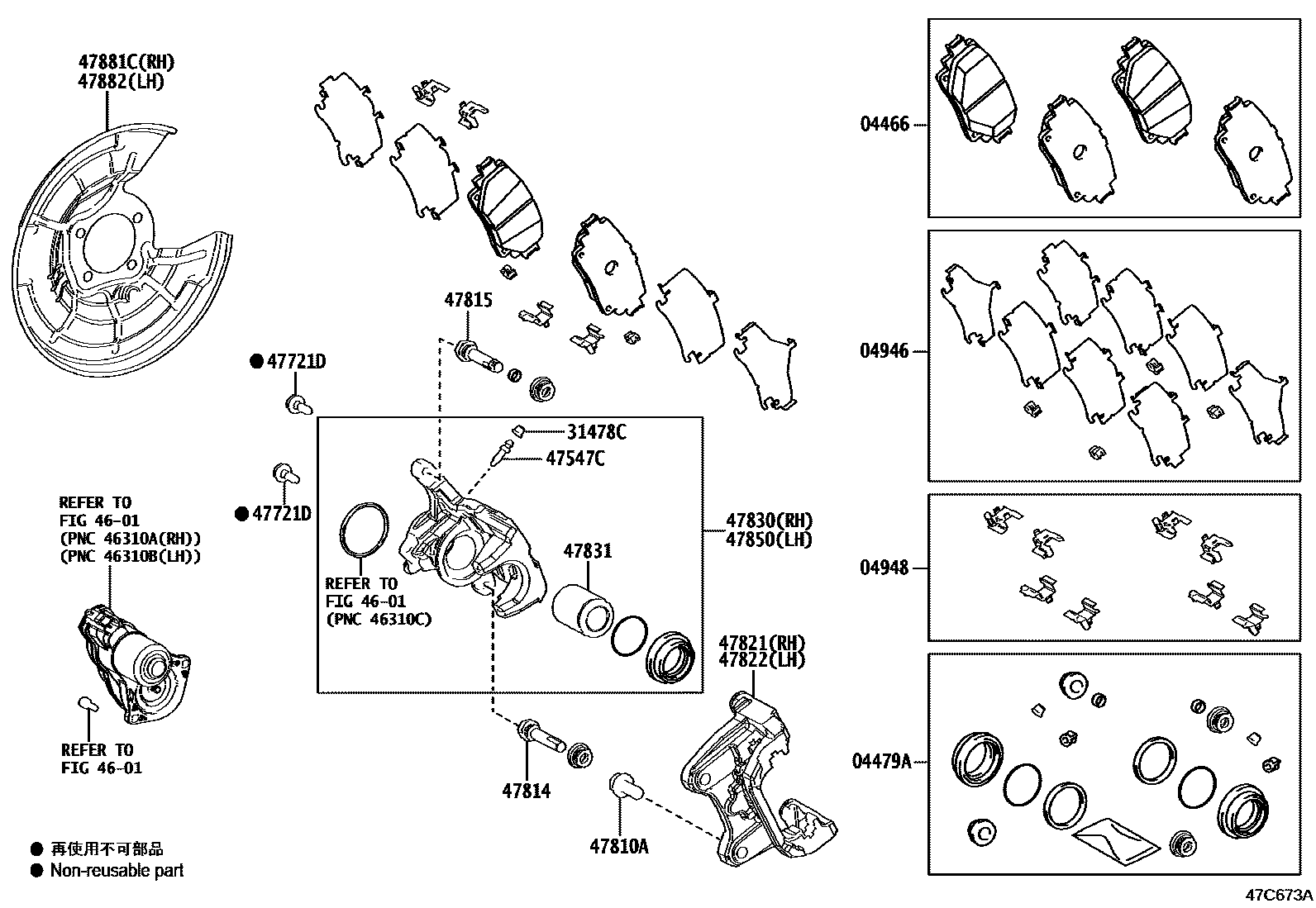

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02460iAXLH4#202410

MARK NBK D6360-FF

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02470iAXLH4#202011-202204

main04479-02520iAXLH4#202410

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02180iAXLH4#202410

04948FITTING KIT, DISC BRAKE, REAR

main04948-02150iAXLH4#202307-202410

main04948-02180iAXLH4#202011-202306

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×4iAXLH4#202410

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iAXLH4#202011-202410

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA614×4iAXLH4#202410

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-14196×4iAXLH4#202410

(J)

main90105-A0425×4iAXLH4#202011-202410

(L)

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-0R050×2iAXLH4#202011-202410

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-0R050×2iAXLH4#202410

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-08020iAXLH4#202410

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-08020iAXLH4#202410

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-08020iAXLH4#202011-202410

47831PISTON, REAR DISC BRAKE

main47831-08020×2iAXLH4#202011-202306

main47831-0E111×2iAXLH4#202410

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-08020iAXLH4#202011-202410

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-08010iAXLH4#202410

47882COVER, DISC BRAKE DUST, REAR LH

main47882-08010iAXLH4#202410

18 parts on this diagram · 1 diagram in section
