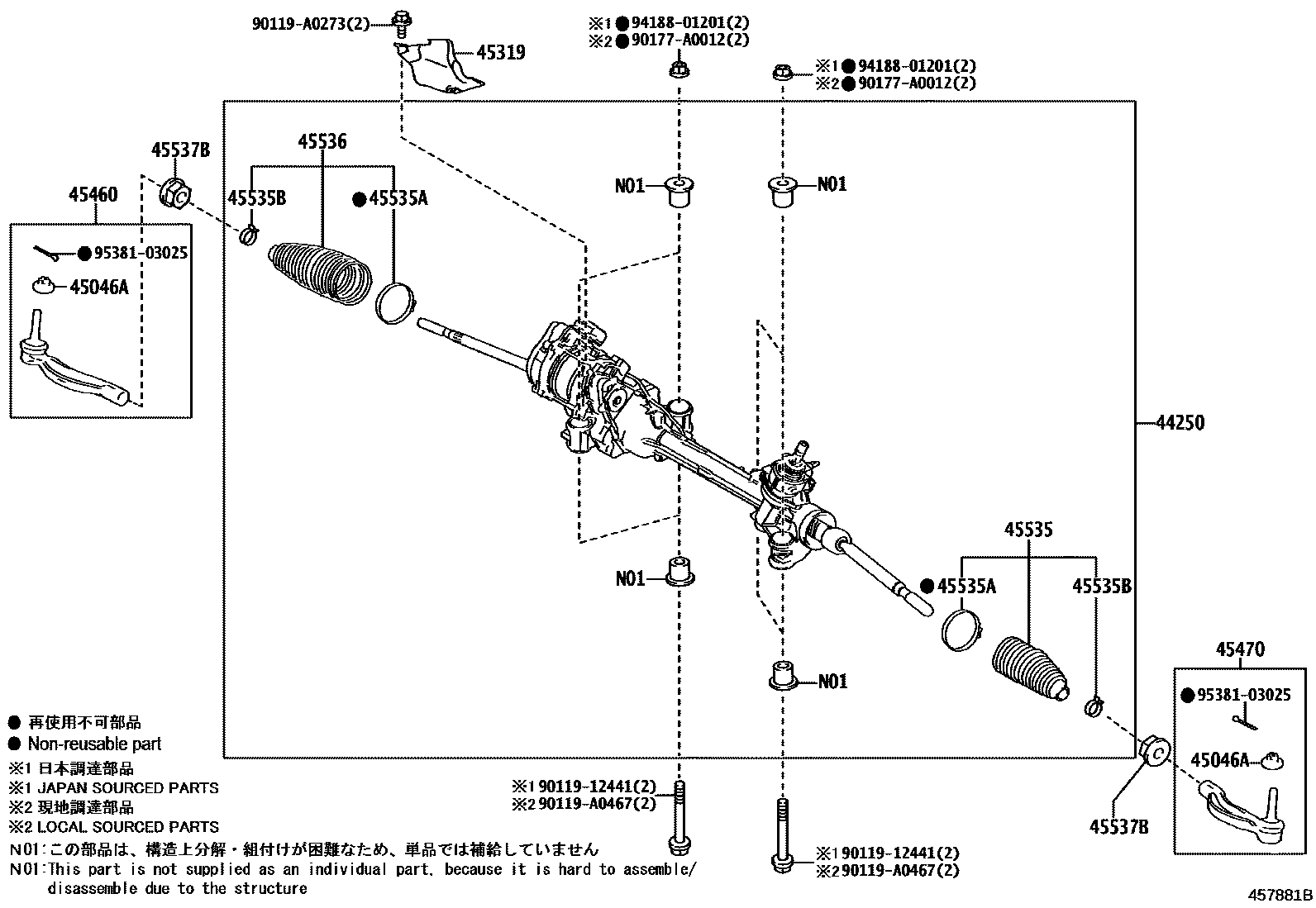

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-08080supersedes 44250-08111iAXLH4#..E,L,X; AXLH40..L202011-202410

*614; MEXICO SPEC&PLATINUM,*614

main44250-08081iAXLH4#..E,L,X; AXLH40..S202410

MEXICO SPEC

main44250-08100iAXLH45..S202011-202410

*614

main44250-08101iAXLH45..S202410

main44250-08090iAXLH40..L202011-202410

KOREA SPEC,*614; PLATINUM,*614; TAIWAN SPEC,*614

main44250-08091iAXLH40..L202410-202511

PLATINUM

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015×2iAXLH4#202011-202410

45319INSULATOR, STEERING GEAR HEAT

main45319-0R010iAXLH4#202410

45460ROD ASSY, TIE, RH

main45460-09400iAXLH4#202011-202409

main45460-09480iAXLH4#202410

45470ROD ASSY, TIE, LH

main45470-09230iAXLH4#202011-202409

main45470-09260iAXLH4#202410

45535BOOT, STEERING RACK, NO.1

main45535-09630iAXLH4#202011-202410

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-0T010×2iAXLH4#202410

45535BCLIP(FOR STEERING RACK BOOT)

main45537-08020×2iAXLH4#202011-202410

45536BOOT, STEERING RACK, NO.2

main45535-09630iAXLH4#202011-202410

45537BNUT, RACK END LOCK

main90178-18003×2iAXLH4#202011-202410

9011912441

main90119-12441

90119A0273

main90119-A0273

90119A0467

main90119-A0467

90177A0012

main90177-A0012

9418801201

main94188-01201

9538103025

main95381-03025

16 parts on this diagram · 1 diagram in section
