FUEL INJECTION SYSTEM

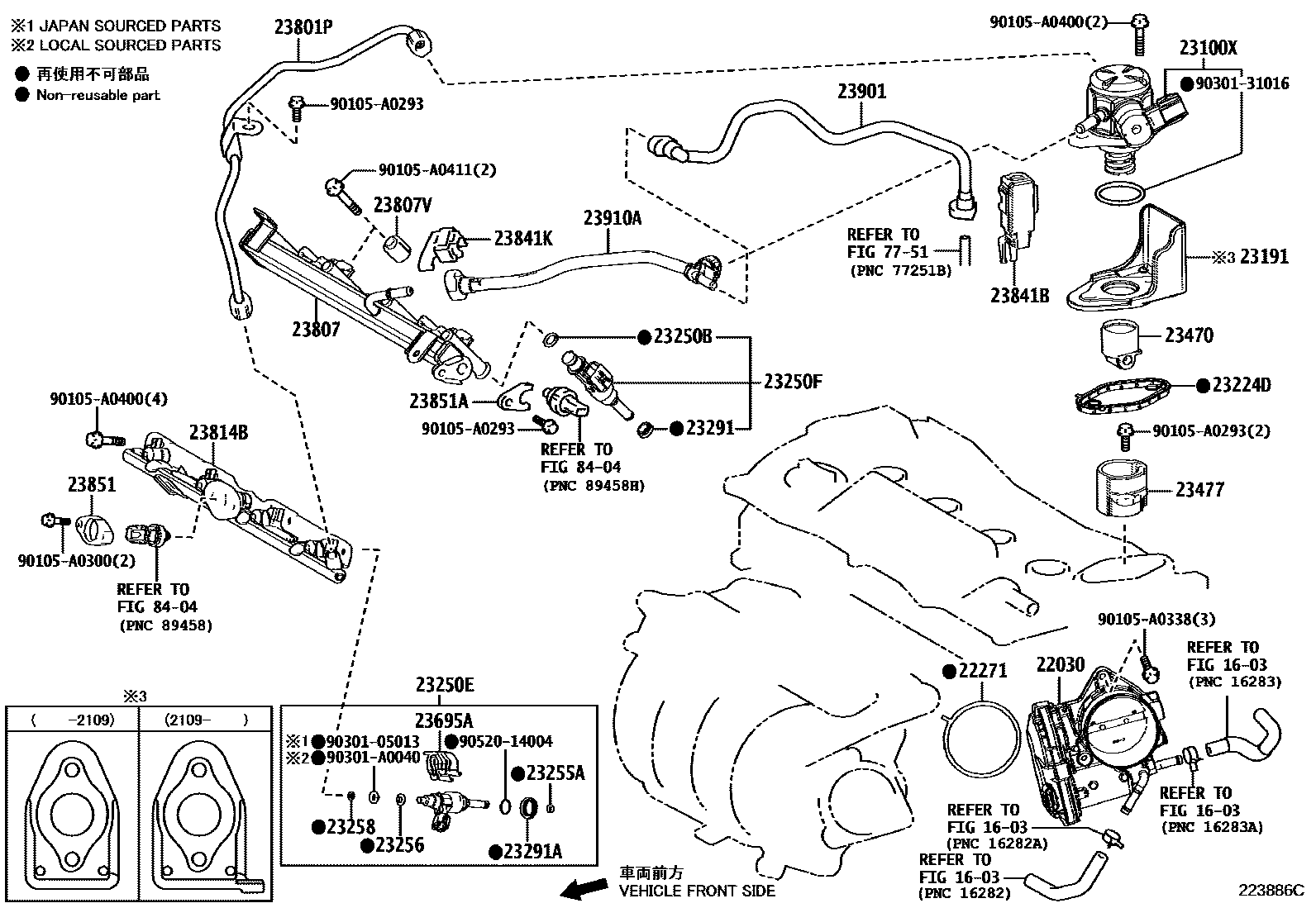

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-F0020i202410

22271GASKET, THROTTLE BODY

main22271-F0020i202011-202410

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-F0010i202410

23191FLANGE, FUEL PUMP

main23191-25050i202011-202109

main23191-25070i202109-202410

23224DGASKET, FUEL PUMP SPACER

main23224-F0010i202011-202110

main23224-F0011i202410

23250BRING, O(FOR FUEL INJECTOR)

main90301-A0036×4i202410

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-F0010-01×4i202410

MARK 1

main23209-F0010-02×4i202011-202410

MARK 2

main23209-F0010-03×4i202410

MARK 3

main23209-F0010-04×4i202410

MARK 4

main23209-F0010-05×4i202011-202410

MARK 5

main23209-F0010-06×4i202011-202410

MARK 6

main23209-F0010-07×4i202011-202410

MARK 7

main23209-F0010-08×4i202410

MARK 8

main23209-F0010-09×4i202011-202410

MARK 9

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29175×4i202011-202104

main23209-F9080×4i202410

(L)

23255ASEAL, FUEL INJECTOR

main23255-25010×4i202011-202410

(J)

main23255-F0010×4i202011-202410

(L)

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4i202410

(J)

main23256-F0010×4i202410

(L)

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-36010×4i202410

23291INSULATOR, INJECTOR VIBRATION

main23291-0V020×4i202410

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020×4i202410

23470LIFTER ASSY, FUEL PUMP

main23470-F0010i202011-202410

23477GUIDE, FUEL PUMP LIFTER

main23477-25010i202410

(J)

main23477-F2010i202410

(L)

23695ACLAMP, NOZZLE HOLDER

main23695-25010×4i202410

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-F0011i202410

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-F0022i202011-202107

main23814-F0023i202108-202410

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-25010×2i202410

23814BPIPE, FUEL DELIVERY

main23814-25010i202011-202210

main23814-25011i202211-202410

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31070i202410

23841KCLAMP, FUEL PIPE

main23841-25040i202011-202410

(J)

main23841-F0010i202011-202410

(L)

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020i202410

MADE IN JAPAN

main23851-F2010i202410

MADE IN USA

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030i202410

(J)

main23851-F2080i202402-202410

(L)

23901TUBE SUB-ASSY, FUEL

main23901-F0290i202410

23910ATUBE SUB-ASSY, FUEL

main23901-25061i202011-202410

(J)

main23901-F0111i202410

(L)

7751FUEL TANK & TUBE

→ Go to FIG 77-51

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

90105A0293

main90105-A0293

90105A0300

main90105-A0300

90105A0338

main90105-A0338

90105A0400

main90105-A0400

90105A0411

main90105-A0411

9030105013

main90301-05013

9030131016

main90301-31016

90301A0040

main90301-A0040

9052014004

main90520-14004

38 parts on this diagram · 1 diagram in section
