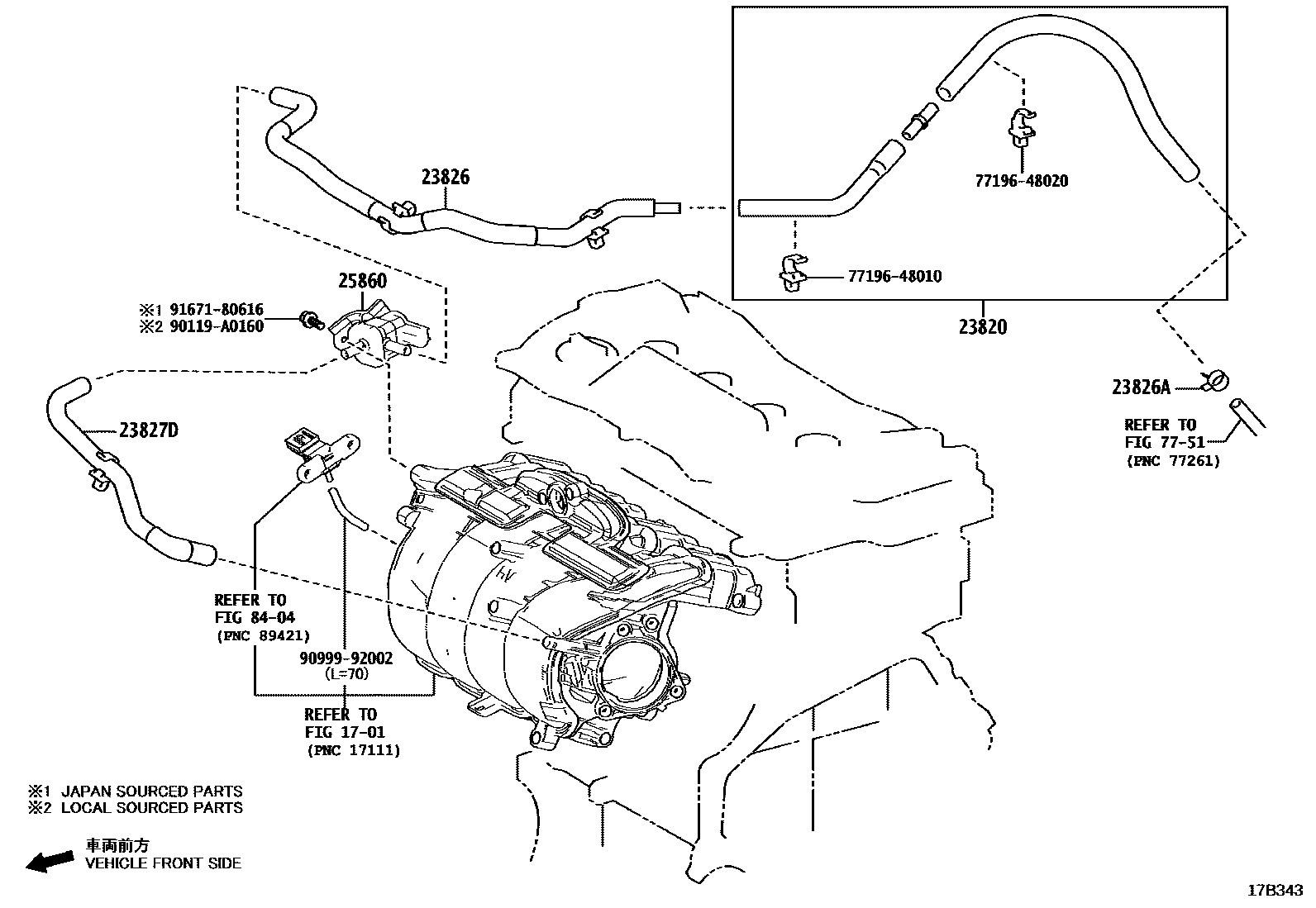

VACUUM PIPING

1701MANIFOLD

→ Go to FIG 17-01

23820HOSE ASSY, FUEL VAPOR FEED

main23820-F0310iA25AFXS..AXLH4#202011-202410

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25AFXS..AXLH4#202011-202410

(J)

main23820-F0081iA25AFXS..AXLH4#202410

(L)

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96133-41501iA25AFXS..AXLH4#202410

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25AFXS..AXLH4#202410

(J)

main23820-F0150iA25AFXS..AXLH4#202011-202410

(L)

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25AFXS..AXLH4#202410

(J)

main25860-F0020iA25AFXS..AXLH4#202011-202410

(L)

7751FUEL TANK & TUBE

→ Go to FIG 77-51

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

7719648010CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-48010

7719648020CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-48020

90119A0160

main90119-A0160

9099992002

main90999-92002

9167180616

main91671-80616

13 parts on this diagram · 1 diagram in section
