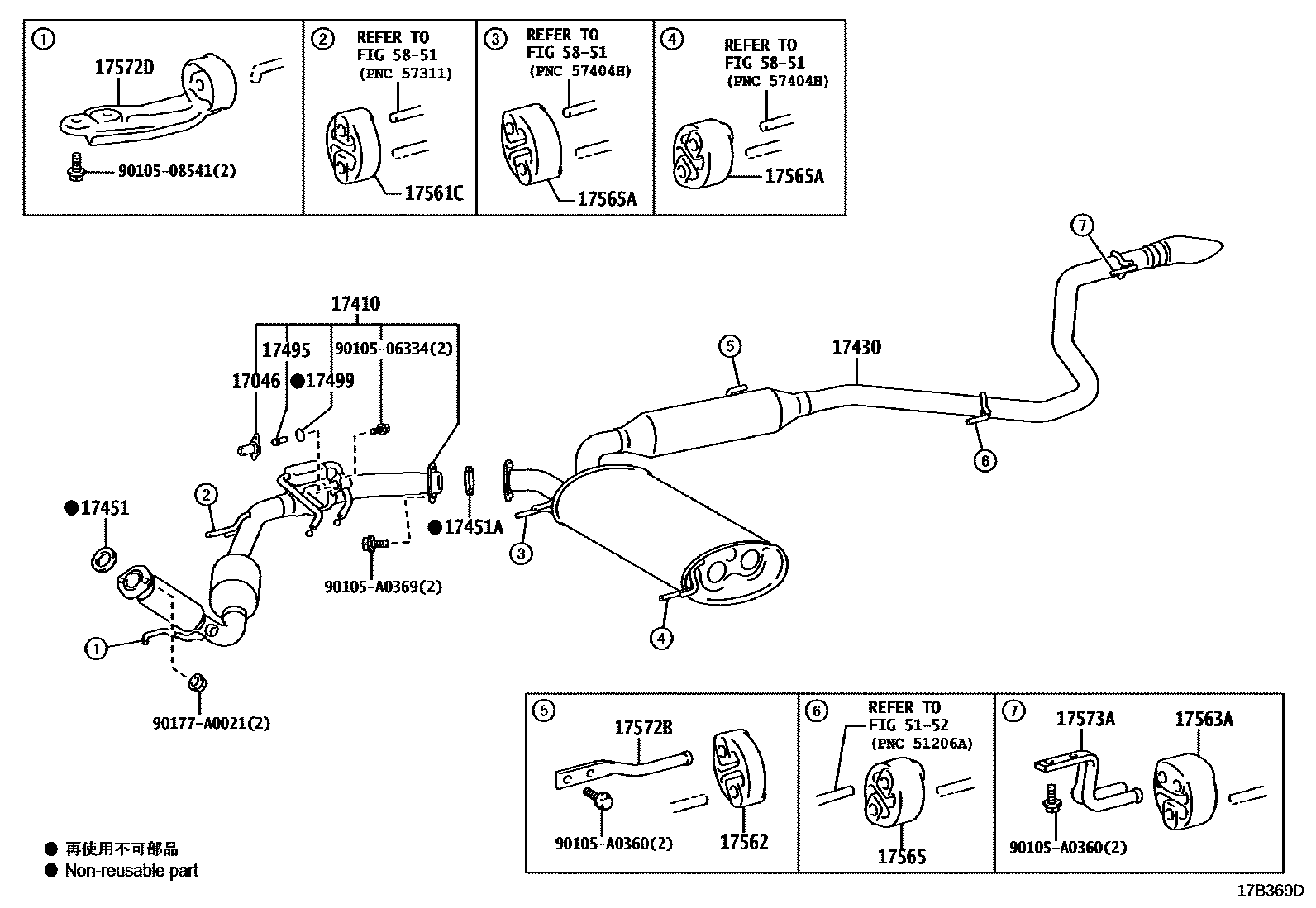

EXHAUST PIPE
17046ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL
17410PIPE ASSY, EXHAUST, FRONT
MEXICO SPEC; TAIWAN SPEC
17430PIPE ASSY, EXHAUST, TAIL
TAIWAN SPEC
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17495ACTUATOR, EXHAUST PIPE GAS CONTROL
17499GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR
17561CSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17572DBRACKET, EXHAUST PIPE SUPPORT, NO.1
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
5152SUSPENSION CROSSMEMBER & UNDER COVER
5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER
9010506334
main90105-06334
9010508541
main90105-08541
90105A0360
main90105-A0360
90105A0369
main90105-A0369
90177A0021
main90177-A0021
22 parts on this diagram · 2 diagrams in section
