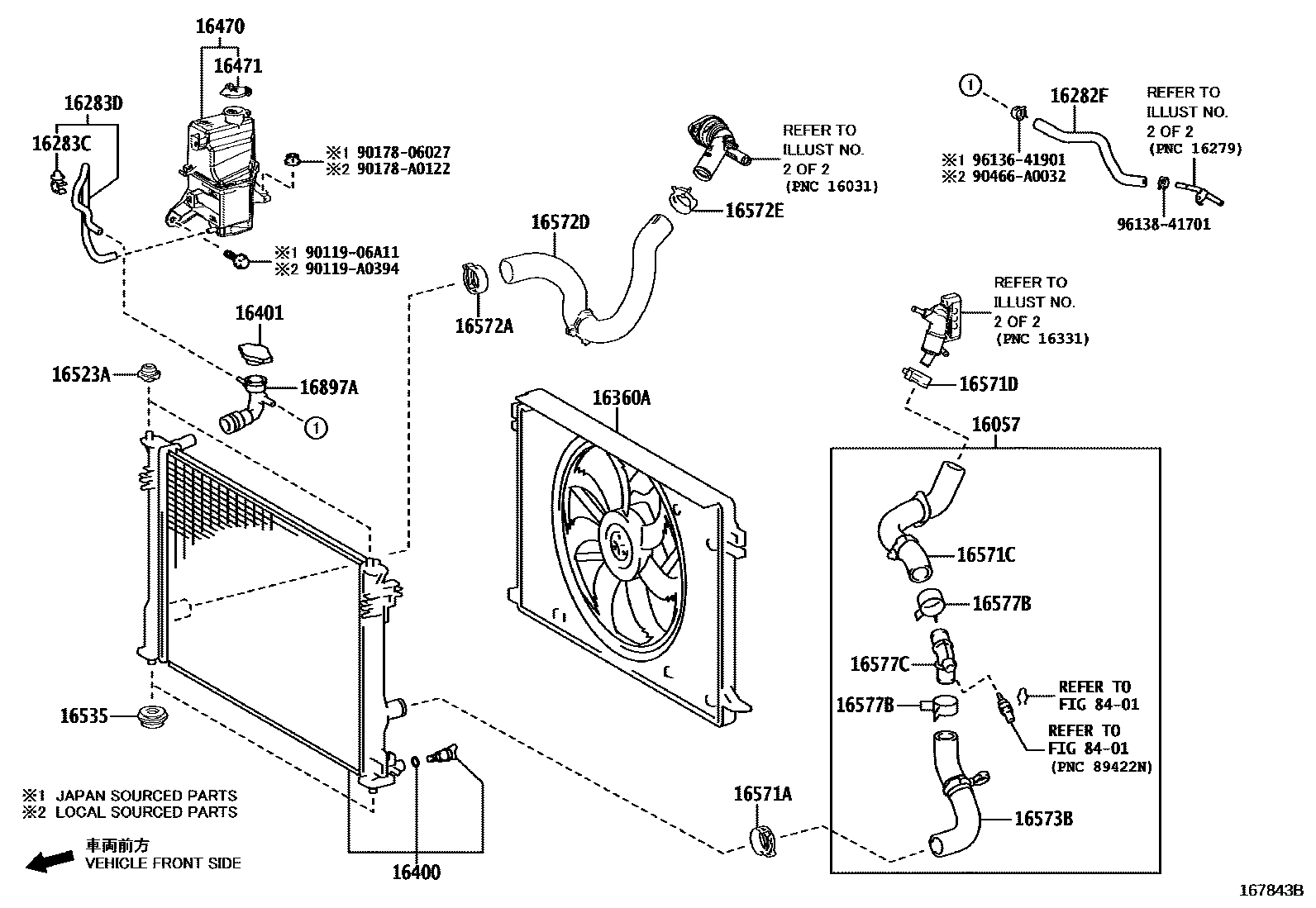

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE(MEXICO SPEC) 0003 1ENGINE SIDE 0004 1ENGINE SIDE 0005 1ENGINE SIDE(MEXICO,TAIWAN SPE0006 1ENGINE SIDE(MEXICO,TAIWAN SPE

16057HOSE SUB-ASSY, RADIATOR

main16057-F0070iA25AFXS..AXLH4#202410

16282HOSE, WATER BY-PASS, NO.5

main16282-25040iA25AFXS..AXLH4#202410

16282FHOSE, WATER BY-PASS, NO.5

main16282-F0230iA25AFXS..AXLH4#202410

16283HOSE, WATER BY-PASS, NO.6

main16283-25020iA25AFXS..AXLH4#202410

16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)

main90469-12014iA25AFXS..AXLH4#202410

16283DHOSE, WATER BY-PASS, NO.6

main16283-0P060iA25AFXS..AXLH4#202410

16360AFAN ASSY, W/MOTOR

main16360-F0150iA25AFXS..AXLH4#202410

16400RADIATOR ASSY

main16400-F0120iA25AFXS..AXLH4#202011-202410

main16400-F0110iA25AFXS..AXLH4#..L; A25AFXS..AXLH40; A25AFXS..AXLH40..07S..(L,X)202410

KOREA SPEC; MEXICO SPEC; TAIWAN SPEC

16401CAP SUB-ASSY, RADIATOR

main16401-36030iA25AFXS..AXLH4#202410

16470TANK ASSY, RADIATOR RESERVE

main16470-0P130iA25AFXS..AXLH4#202410

16471CAP SUB-ASSY, RESERVE TANK

main16405-F0030iA25AFXS..AXLH4#202410

16523ACUSHION, RADIATOR SUPPORT

main16523-F0020×2iA25AFXS..AXLH4#202410

16535SUPPORT, RADIATOR, LOWER

main16535-0H030×2iA25AFXS..AXLH4#202410

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-39002iA25AFXS..AXLH4#202410

(J)

main90466-A0038iA25AFXS..AXLH4#202410

(L)

16571CHOSE, RADIATOR, NO.1

main16571-F0240iA25AFXS..AXLH4#202011-202410

main16571-F0200iA25AFXS..AXLH40..S202310-202410

MEXICO SPEC

16571DCLIP, RADIATOR HOSE, NO.1

main90466-43002iA25AFXS..AXLH4#202410

(J)

main90466-A0037iA25AFXS..AXLH4#202410

(L)

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-39002iA25AFXS..AXLH4#202410

(J)

main90466-A0038iA25AFXS..AXLH4#202011-202410

(L)

16572DHOSE, RADIATOR, NO.2

main16572-F0150iA25AFXS..AXLH4#202410

16572ECLIP, RADIATOR HOSE, NO.2

main90466-43002iA25AFXS..AXLH4#202011-202410

(J)

main90466-A0037iA25AFXS..AXLH4#202410

(L)

16573BHOSE, RADIATOR, NO.3

main16573-F0130iA25AFXS..AXLH4#202011-202410

16577BCLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)

main90466-A0037×2iA25AFXS..AXLH4#202410

16577CPIPE, RADIATOR

main16577-F0050iA25AFXS..AXLH4#202410

16897ANECK, FILLER

main16897-F0080iA25AFXS..AXLH4#202410

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906A11

main90119-06A11

90119A0394

main90119-A0394

9017806027

main90178-06027

90178A0122

main90178-A0122

90466A0032

main90466-A0032

9613641901

main96136-41901

9613841701

main96138-41701

31 parts on this diagram · 6 diagrams in section
