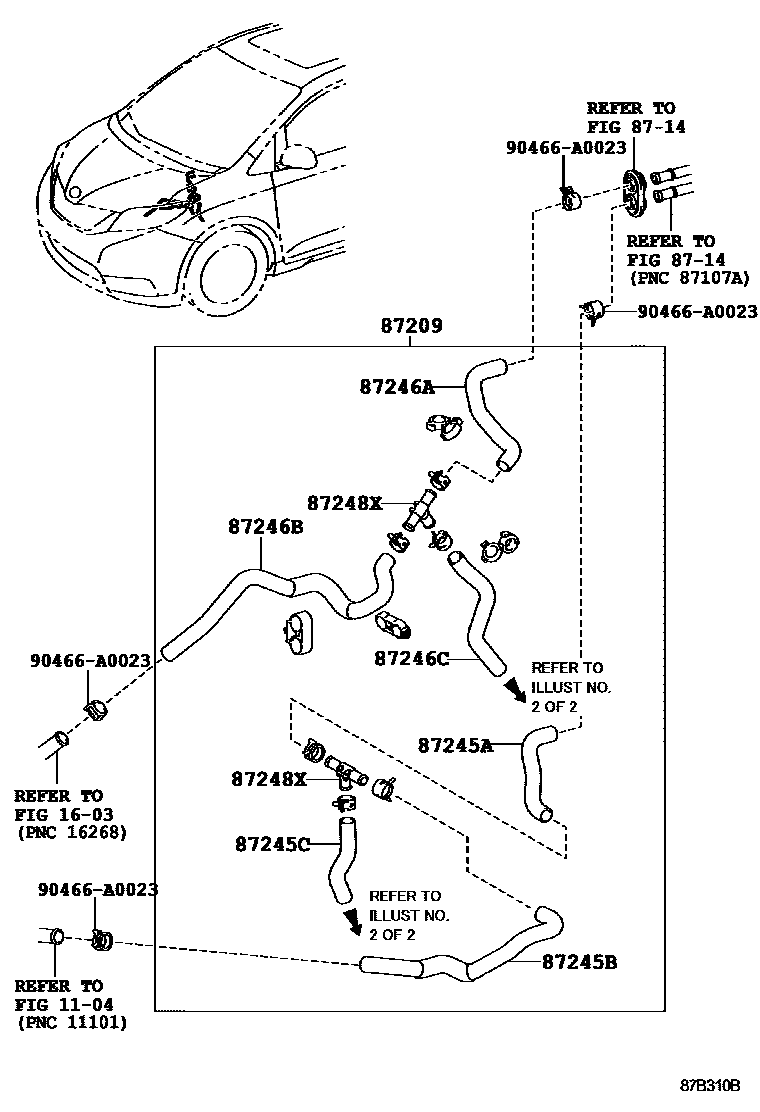

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1REAR 0005 1REAR

87209HOSE SUB-ASSY, WATER

main87209-08030iGSL35..STD201001-201308

main87209-08040iASL30201005-201308

main87209-08050iGSL3#201608-201711

87245AHOSE, HEATER WATER, INLET A

main87243-08010iGSL3#201711-202009

main87245-08280iGSL30,33;GSL35..LE,XLE201001-201409

main87245-08410iASL30201005-201308

87245BHOSE, HEATER WATER, INLET B

main87245-08300iGSL30,33;GSL35..LE,XLE201001-201409

main87245-08440iASL30201005-201308

main87254-08010iGSL3#201608-201711

87245CHOSE, HEATER WATER ,INLET C

main87244-08010iGSL3#201711-202009

main87245-08320iGSL30,33;GSL35..LE,XLE201001-201409

main87245-08450iASL30201005-201308

87246HOSE, HEATER WATER, OUTLET

main87245-08470iGSL3#201608-201711

87246AHOSE, HEATER WATER, OUTLET A

main87245-08290iGSL35..STD201001-201308

main87245-08380iGSL3#201608-201711

main87245-08420iASL30201005-201308

87246BHOSE, HEATER WATER, OUTLET B

main87245-08310iGSL35..STD201001-201308

main87245-08430iASL30201005-201308

main87246-08130iGSL3#201608-201711

87246CHOSE, HEATER WATER, OUTLET C

main87242-08010iGSL3#201608-201711

main87245-08330iGSL30,33;GSL35..LE,XLE201001-201409

main87245-08460iASL30201005-201308

87248XPIPE, HEATER WATER

main87248-26880×2iGSL35..STD201001-201308

90466A0023

main90466-A0023

10 parts on this diagram · 5 diagrams in section
