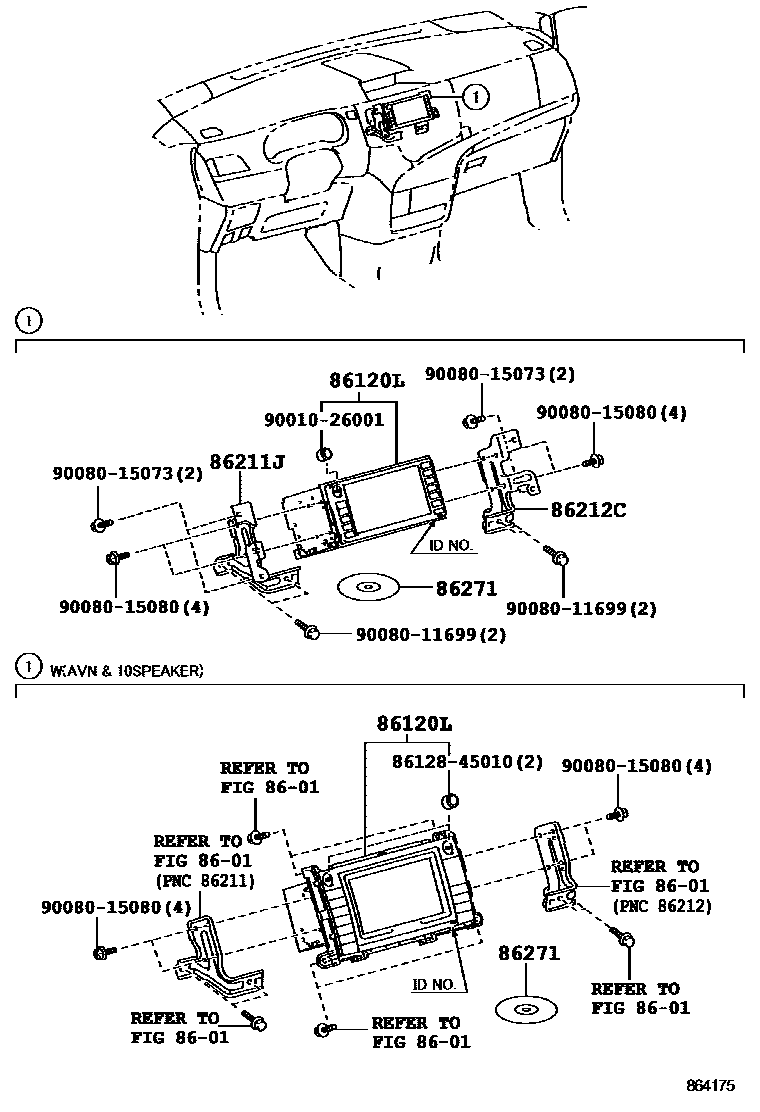

NAVIGATION & FRONT MONITOR DISPLAY
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
86120LRECEIVER ASSY, NAVIGATION
DENSO ID=E7023,AUDIO-AVN 6SPEAKER
DENSO ID=E7027,CANADA SPEC&AUDIO-AVN & 10SPEAKER & BLUETOOTH
PANASONIC,ID=510026,AUDIO-AVN(AM/FM/CD) & 6SPEAKER
PANASONIC,ID=510027,AUDIO-AVN(AM/FM/CD) & 10SPEAKER JBL
PANASONIC,ID=510157,AUDIO-AVN(AM/FM/CD) & 6SPEAKER
PANASONIC,ID=510158,AUDIO-AVN(AM/FM/CD) & 10SPEAKER JBL
86211JBRACKET, RADIO RECEIVER, NO.1
AUDIO-ACCESSORY AUDIO 6SPEAKER
86212CBRACKET, RADIO RECEIVER, NO.2
AUDIO-AVN 6SPEAKER
86271DISC, DISC PLAYER
main86271-0E182iGSL30,35..07S..XLE; GSL30,35..SE,XLE; GSL30..07S..XLE; GSL30..SE,XLE; GSL30..SE;GSL30,35..07S..XLE; GSL30..XLE201409-201506
AUDIO-AVN(AM/FM/CD) & 10SPEAKER JBL,MICRO SD CARD; AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD; CANADA SPEC&AUDIO-AVN(AM/FM/CD) & 10SPEAKER JBL,MICRO SD CARD; CANADA SPEC&AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD; MEXICO SPEC&AUDIO-AVN(AM/FM/CD) & 10SPEAKER JBL,MICRO SD CARD; MEXICO SPEC&AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD; USA POSSESSIONS SPEC&AUDIO-AVN(AM/FM/CD) & 10SPEAKER JBL,MICRO SD CARD; USA POSSESSIONS SPEC&AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD
main86271-0E183iGSL30,35..07S..XLE; GSL30,35..SE,XLE; GSL30..07S..XLE; GSL30..SE,XLE; GSL30..SE;GSL30,35..07S..XLE; GSL30..XLE201507-201608
AUDIO-AVN(AM/FM/CD) & 10SPEAKER JBL,MICRO SD CARD; AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD; CANADA SPEC&AUDIO-AVN(AM/FM/CD) & 10SPEAKER JBL,MICRO SD CARD; CANADA SPEC&AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD; MEXICO SPEC&AUDIO-AVN(AM/FM/CD) & 10SPEAKER JBL,MICRO SD CARD; MEXICO SPEC&AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD; USA POSSESSIONS SPEC&AUDIO-AVN(AM/FM/CD) & 10SPEAKER JBL,MICRO SD CARD; USA POSSESSIONS SPEC&AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD
main86271-0E184iGSL30,35..07S..XLE; GSL30,35..SE,XLE; GSL30..07S..XLE; GSL30..SE,XLE; GSL30..SE;GSL30,35..07S..XLE; GSL30..XLE201609-201709
AUDIO-AVN(AM/FM/CD) & 10SPEAKER,MICRO SD CARD; AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD; CANADA SPEC&AUDIO-AVN(AM/FM/CD) & 10SPEAKER,MICRO SD CARD; CANADA SPEC&AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD; MEXICO SPEC&AUDIO-AVN(AM/FM/CD) & 10SPEAKER,MICRO SD CARD; MEXICO SPEC&AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD; USA POSSESSIONS SPEC&AUDIO-AVN(AM/FM/CD) & 10SPEAKER,MICRO SD CARD; USA POSSESSIONS SPEC&AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD
main86271-0E185iGSL30,35..07S..XLE; GSL30,35..SE,XLE; GSL30..07S..XLE; GSL30..SE,XLE; GSL30..SE;GSL30,35..07S..XLE; GSL30..XLE201709-201711
AUDIO-AVN(AM/FM/CD) & 10SPEAKER,MICRO SD CARD; AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD; CANADA SPEC&AUDIO-AVN(AM/FM/CD) & 10SPEAKER,MICRO SD CARD; CANADA SPEC&AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD; MEXICO SPEC&AUDIO-AVN(AM/FM/CD) & 10SPEAKER,MICRO SD CARD; MEXICO SPEC&AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD; USA POSSESSIONS SPEC&AUDIO-AVN(AM/FM/CD) & 10SPEAKER,MICRO SD CARD; USA POSSESSIONS SPEC&AUDIO-AVN(AM/FM/CD) & 6SPEAKER,MICRO SD CARD
AUDIO-AVN 6SPEAKER
AUDIO-AVN 6SPEAKER
AUDIO-AVN 6SPEAKER
AUDIO-AVN 6SPEAKER
AUDIO-AVN & 10SPEAKER & BLUETOOTH; CANADA SPEC&AUDIO-AVN & 10SPEAKER & BLUETOOTH
AUDIO-AVN & 10SPEAKER & BLUETOOTH; CANADA SPEC&AUDIO-AVN & 10SPEAKER & BLUETOOTH
AUDIO-AVN & 10SPEAKER & BLUETOOTH; CANADA SPEC&AUDIO-AVN & 10SPEAKER & BLUETOOTH
AUDIO-AVN & 10SPEAKER & BLUETOOTH; CANADA SPEC&AUDIO-AVN & 10SPEAKER & BLUETOOTH
AUDIO-AVN & 10SPEAKER & BLUETOOTH; CANADA SPEC&AUDIO-AVN & 10SPEAKER & BLUETOOTH
AUDIO-AVN & 10SPEAKER & BLUETOOTH; CANADA SPEC&AUDIO-AVN & 10SPEAKER & BLUETOOTH
8612845010KNOB, RADIO RECEIVER
main86128-45010
9001026001
main90010-26001
9008011699
main90080-11699
9008015073
main90080-15073
9008015080
main90080-15080
10 parts on this diagram · 2 diagrams in section
