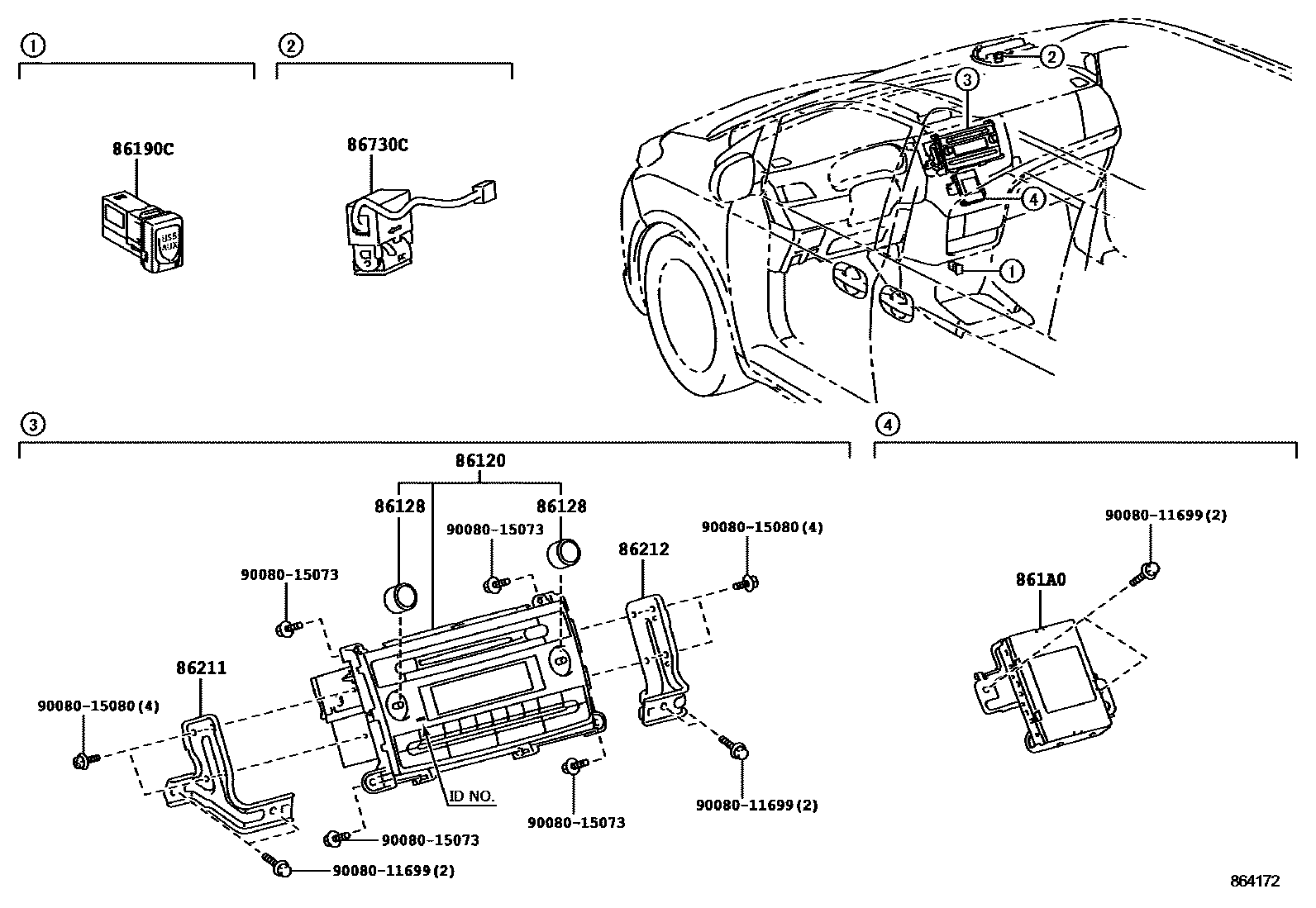

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86120RECEIVER ASSY, RADIO

main86120-08230iGSL30,35..LE,SE201001-201308

PIONEER,ID=P1841

main86120-08270iGSL30,35..XLE201001-201409

PIONEER,ID=P1842

main86120-08240iASL30;GSL30,35..XLE201001-201409

PIONEER,ID=P1844,AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT

main86120-08260iASL30;GSL30,35..07S..XLE201001-201409

PIONEER,ID=P1845,CANADA SPEC&AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT

main86120-08280iASL30,GSL30,35..LE,SE201001-201308

PIONEER,ID=P1843,CANADA SPEC&AUDIO-AM/FM & CD & 6SPEAKER & BLUETOOTH

86128KNOB, RADIO RECEIVER

main86128-08010×2iASL30,GSL3#201001-201409

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-02010iGSL30,33..STD201001-201409

main86190-0C020iGSL30,35..LE,SE201308-201409

main86190-0R010iGSL3#201608-201711

main86190-12040iGSL3#201711-202009

861A0COMPUTER ASSY, MULTI-MEDIA INTERFACE

main861A0-08010iASL30,GSL30,35..LE,SE; GSL30,35..XLE201001-201109

AUDIO-AM/FM & CD & 6SPEAKER & BLUETOOTH

main861A0-08011iGSL30,35..XLE201110-201409

86211BRACKET, RADIO, NO.1

main86211-08030iASL30;GSL35..STD201001-201308

86212BRACKET, RADIO, NO.2

main86212-08030iASL30;GSL35..STD201001-201308

86730CMICROPHONE ASSY, TELEPHONE

main86730-48040iGSL30,35..XLE201001-201409

9008011699

main90080-11699

9008015073

main90080-15073

9008015080

main90080-15080

10 parts on this diagram · 3 diagrams in section
