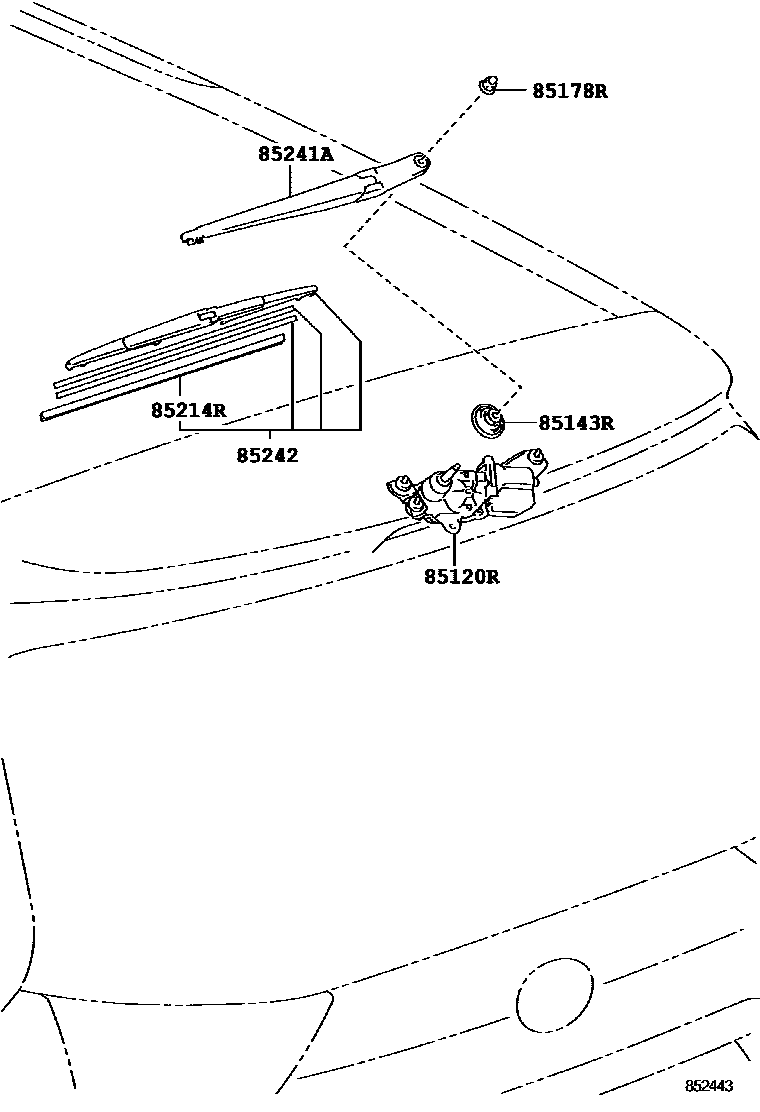

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85130-08010iASL30;GSL35..STD201001-201308

85143RGROMMET, REAR WIPER MOTOR

main85143-0C020iASL30;GSL35..STD201001-201308

85178RNUT (FOR REAR WIPER ARM SETTING)

main85113-58020iASL30,GSL3#201001-201202

main90179-06226iASL30,GSL3#201203-201306

main90182-A0032iASL30;GSL35..STD201307-201308

85214RRUBBER, REAR WIPER

main85214-0E050iASL30;GSL35..STD201001-201308

85241AARM, REAR WIPER

main85241-08020iASL30;GSL35..STD201001-201308

85242BLADE, RR WIPER

main85242-08020iASL30;GSL35..STD201001-201308

6 parts on this diagram · 1 diagram in section
