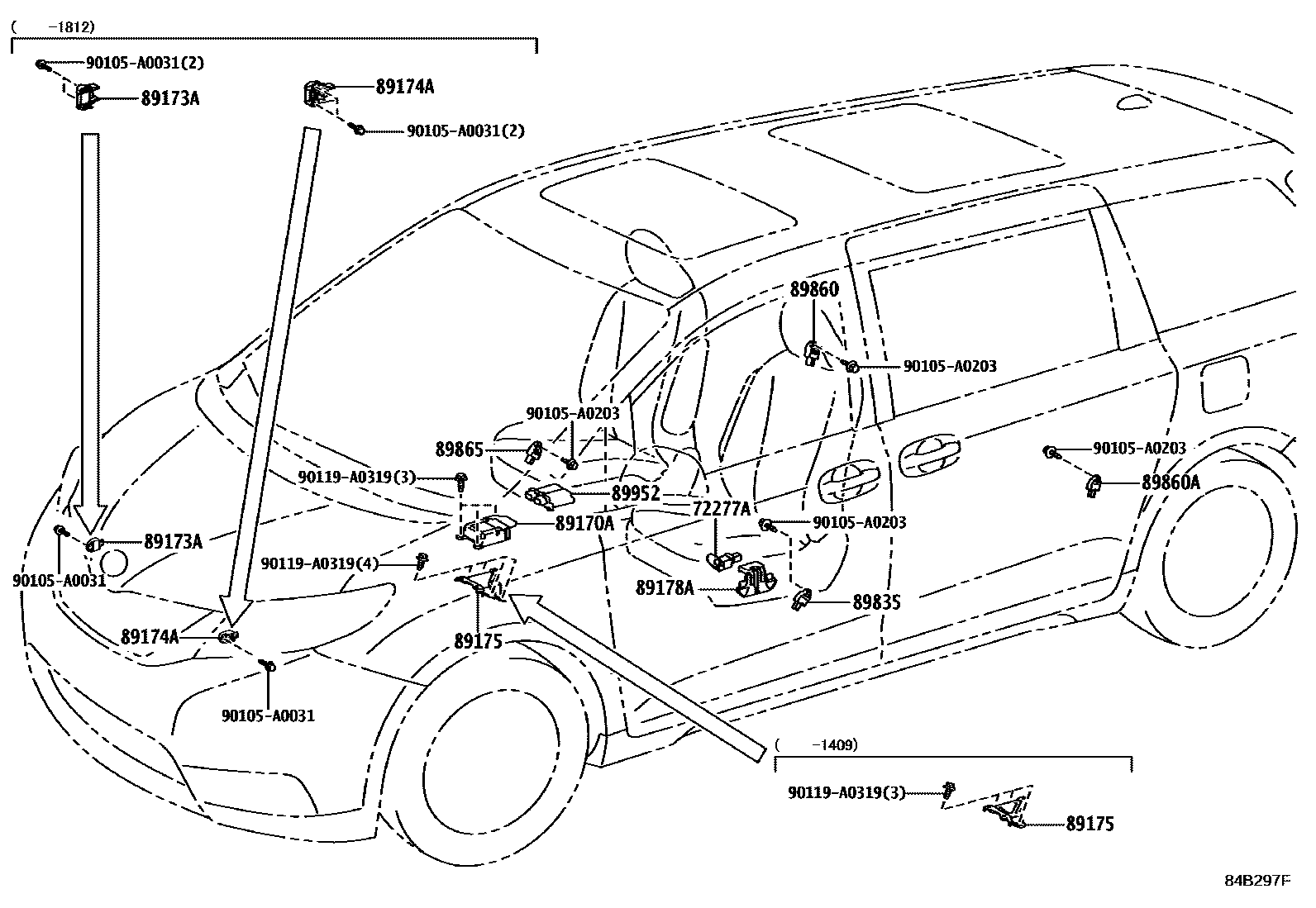

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-08010iGSL3#201001-202009

89170ACOMPUTER ASSY, AIRBAG

main89170-08090iASL30,GSL3#201001-201109

main89170-08100iASL30,GSL3#201109-201208

main89170-08120iASL30,GSL3#201208-201307

main89170-08140iGSL3#201409-201608

main89170-08150iGSL3#201308-201409

main89170-08160iGSL3#201608-201711

main89170-08200iGSL3#201711-201812

main89170-08240iGSL3#201812-202009

89173ASENSOR, AIRBAG, FRONT RH

main89173-09590iASL30;GSL35..STD201109-201409

main89173-09620iASL30,GSL3#201001-201109

main89173-09640iGSL3#201812-202009

main89173-09899iGSL3#201409-201812

89174ASENSOR, AIRBAG, FRONT LH

main89173-09590iGSL30,33;GSL35..LE,XLE201109-201409

main89173-09620iASL30,GSL3#201001-201109

main89173-09640iGSL3#201812-202009

main89173-09899iGSL3#201409-201812

89175BRACKET, AIRBAG SENSOR

main89175-08010iGSL30,33;GSL35..LE,XLE201001-201409

main89175-08020iGSL3#201409-202009

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06040iASL30,GSL3#201001-202009

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-08020iASL30,GSL3#201001-201409

main89831-08040iGSL3#201409-201812

main89831-08100iGSL3#201812-202009

main89831-0T020iASL30,GSL3#201109-201208

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-08030iASL30;GSL35..STD201001-201409

main89831-08050iGSL3#201409-201812

main89831-08090iGSL3#201812-202009

main89831-0T010iASL30,GSL3#201109-201208

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-08030iASL30;GSL35..STD201001-201409

main89831-08050iGSL3#201409-201812

main89831-08090iGSL3#201812-202009

main89831-0T010iASL30,GSL3#201109-201208

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-08020iGSL30,33;GSL35..LE,XLE201001-201409

main89831-08040iGSL3#201409-201812

main89831-08100iGSL3#201812-202009

main89831-0T020iASL30,GSL3#201109-201208

89952COMPUTER, OCCUPANT DETECTION

main89952-08011iGSL30,35201001-202009

90105A0031

main90105-A0031

90105A0203

main90105-A0203

90119A0319

main90119-A0319

14 parts on this diagram · 1 diagram in section
