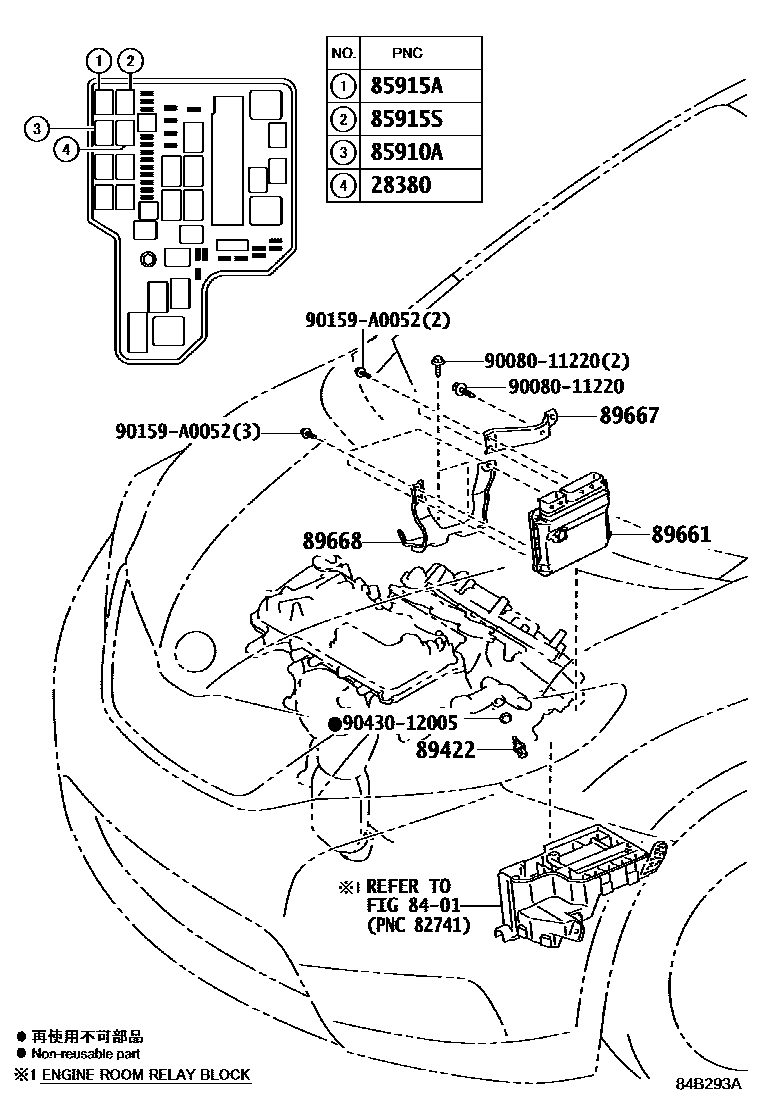

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

28380RELAY ASSY, FUEL PUMP

main90084-98032i2GRFE..GSL3#201409-201608

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87026iASL30;GSL35..STD201001-201308

85915ARELAY, MAIN

main90080-87026iASL30;GSL35..STD201001-201308

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90080-87026iGSL3#201608-201711

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iASL30;GSL35..STD201001-201308

main89422-47010iGSL3#201608-201711

89661COMPUTER, ENGINE CONTROL

main89661-08160iGSL30,33201608-201609

main89661-08163iGSL30,33201609-201701

main89661-08164iGSL30,33201702-201704

DENSO

main89661-08165iGSL30,33201705-201711

DENSO

main89661-08220iGSL30,33201109-201208

P/N LABEL=8966108220

main89661-08230iGSL35201109-201208

P/N LABEL=8966108230

main89661-08300iGSL30,33201001-201109

P/N LABEL=8966108300

main89661-08310iGSL35201001-201107

P/N LABEL=8966108310

main89661-08311iGSL35201107-201109

P/N LABEL=8966108311

main89661-08330iASL30201208-201308

main89661-08360iASL30201005-201010

main89661-08361iASL30201011-201208

main89661-08370iGSL30,33201208-201303

P/N LABEL=8966108370

main89661-08371iGSL30,33201304-201409

main89661-08380iGSL35201208-201303

P/N LABEL=8966108380

main89661-08381iGSL35..STD201304-201308

main89661-08400iGSL30,33201711-201802

DENSO,MARK 89661-08400

main89661-08410iGSL30,33201409-201608

main89661-08420iGSL35201409-201608

main89661-08440iGSL35201608-201609

main89661-08443iGSL35201609-201701

main89661-08444iGSL35201702-201704

DENSO

main89661-08445iGSL35201705-201711

DENSO

main89661-08460iGSL35201711-201802

DENSO,MARK 89661-08460

main89661-08490iGSL30,33201808-201904

DENSO,MARK 89661-08490

main89661-08500iGSL35201808-201904

DENSO,MARK 89661-08500

main89661-08580iGSL30,33201802-201806

DENSO,MARK 89661-08580

main89661-08581iGSL30,33201807-201808

DENSO

main89661-08590iGSL35201802-201806

DENSO

main89661-08591iGSL35201807-201808

DENSO

main89661-08670iGSL30,33201904-202009

DENSO

main89661-08680iGSL35201904-202009

DENSO

main89661-08260iGSL30..LE,STD,XLE201109-201208

MEXICO SPEC

main89661-08320iGSL30..LE,STD,XLE201001-201109

MEXICO SPEC

main89661-08390iGSL30..LE,STD,XLE201208-201409

MEXICO SPEC

main89661-08430iGSL30..LE,STD,XLE201409-201608

MEXICO SPEC

main89661-08450iGSL30..LE,STD,XLE201608-201609

MEXICO SPEC

main89661-08451iGSL30..LE,STD,XLE201711-201802

DENSO,MEXICO SPEC,MARK 89661-08451

main89661-08550iGSL30..LE,STD,XLE201802-202009

DENSO,MEXICO SPEC,MARK 89661-08550

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-08040iGSL30,33;GSL35..LE,XLE201001-201409

main89667-08050iGSL3#201608-201711

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-08030iASL30;GSL35..STD201001-201308

9008011220

main90080-11220

90159A0052

main90159-A0052

9043012005

main90430-12005
