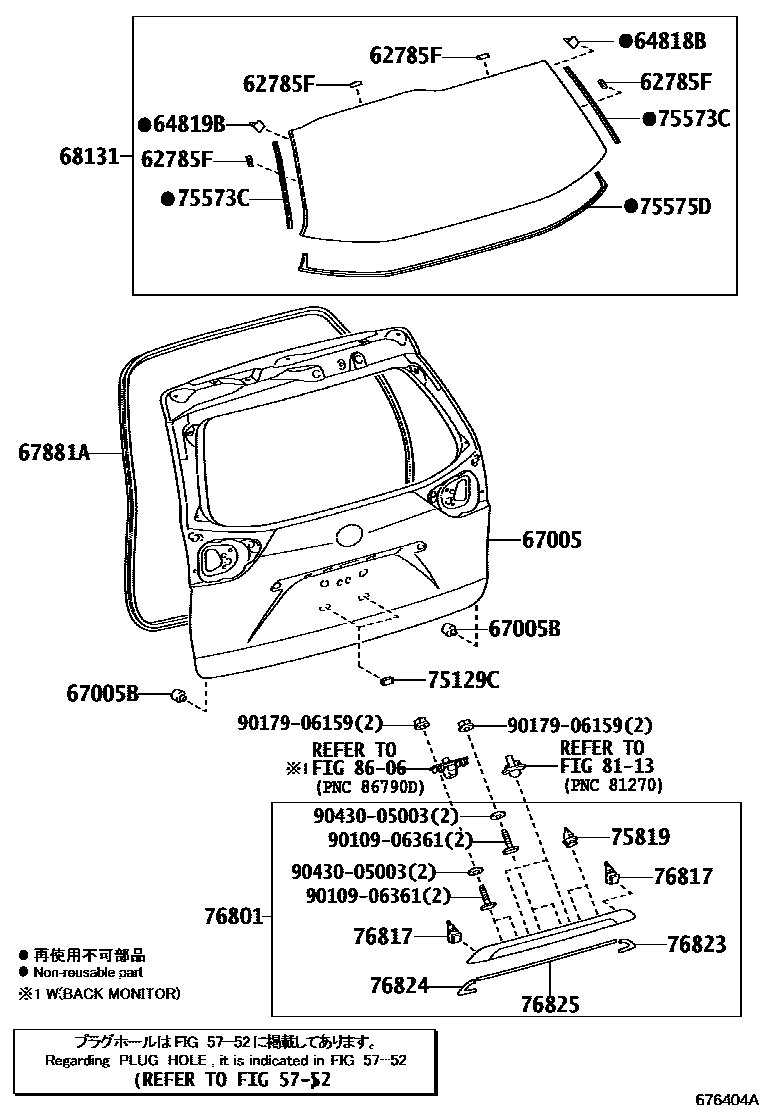

BACK DOOR PANEL & GLASS
5752
62785FSPACER, BACK DOOR GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
DE-CONTENT PACKAGE
WITH(POWER SLIDE DOOR & POWER BACK DOOR)
MOBILITY BASE VEHICLE
WITH(LIFT UP SEAT)
67005BCUSHION(FOR BACK DOOR PANEL)
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*HSEA,T=3.5,GREEN
*TEM,T=3.5,PRIVACY
*TEM,T=3.5,PRIVACY,BACK GLASS-PRIVATE
BACK GLASS-PRIVATE
*TEM,T=3.5,PRIVACY,CANADA SPEC
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
75575DMOULDING, BACK WINDOW, LOWER
75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
76817CLIP, BACK DOOR OUTSIDE GARNISH
76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
8113
8606
9010906361
main90109-06361
9017906159
main90179-06159
9043005003
main90430-05003
22 parts on this diagram · 2 diagrams in section
