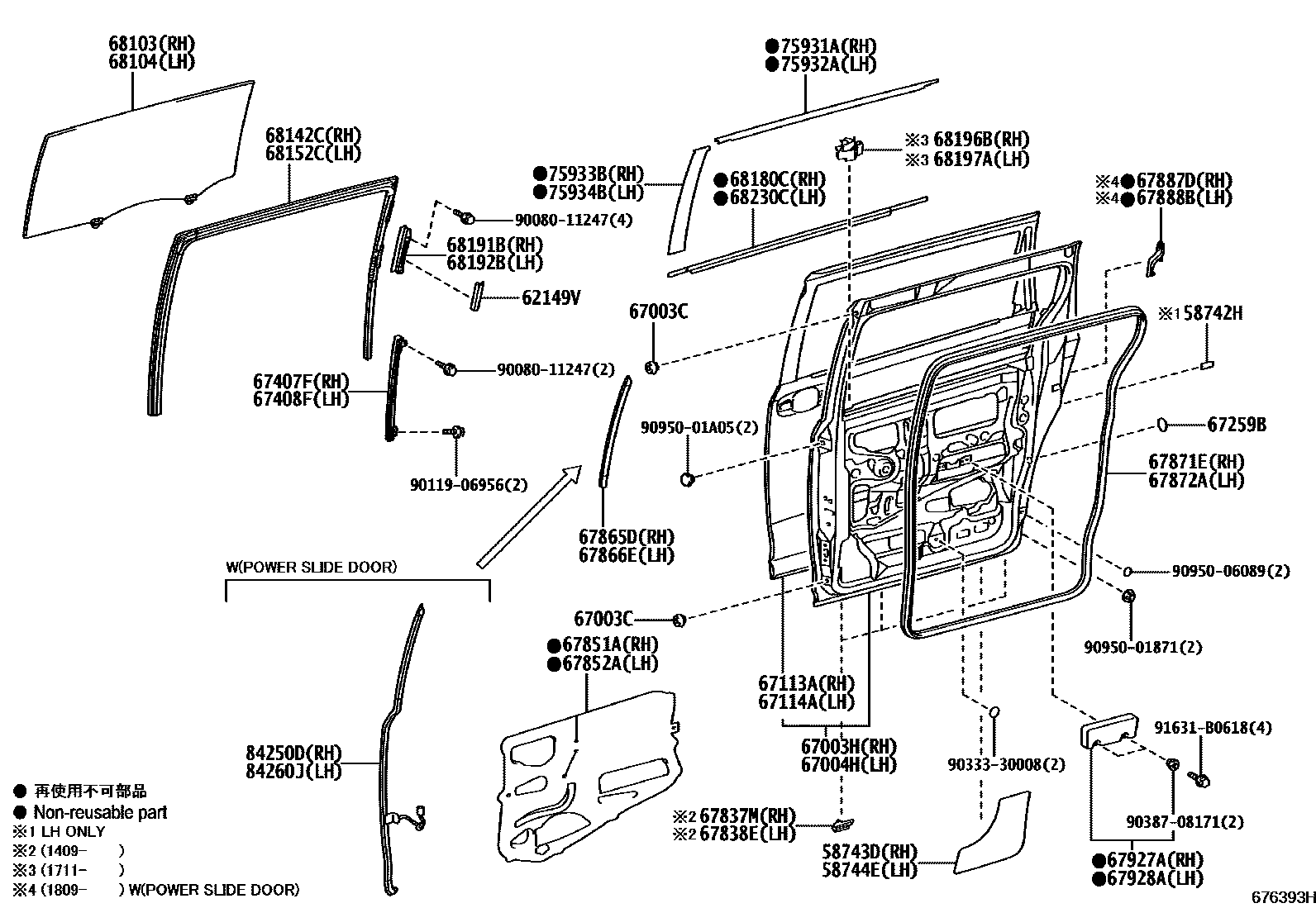

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1DOOR TRIM 0004 1DOOR TRIM

58742HPROTECTOR, SLIDE DOOR, LH

main58743-28010iGSL3#201711-202009

58743DPROTECTOR, SLIDE DOOR PANEL, RH

main58743-08030iASL30;GSL35..STD201001-201308

58744EPROTECTOR, SLIDE DOOR PANEL, LH

main58744-08010iASL30;GSL35..STD201001-201308

62149VTAPE, REAR SIDE WINDOW FRAME

main62149-08010×2iGSL3#201711-202009

67003CCUSHION, REAR DOOR PANEL

main90541-10040×4iASL30;GSL35..STD201001-201308

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-08111iGSL30,35..LE,SE,XLE201711-202009

main67003-08121iGSL30,33..STD; GSL30..07S..LE; GSL30..08S..LE201711-202009

DE-CONTENT PACKAGE; WITHOUT(POWER SLIDE DOOR)

main67003-08130iGSL30,35..LE,SE,XLE201409-201608

main67003-08140iASL30;GSL35..STD201001-201308

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-08111iGSL30,35..LE,SE,XLE201711-202009

main67004-08121iGSL30,33..STD; GSL30..07S..LE; GSL30..08S..LE201711-202009

DE-CONTENT PACKAGE; WITHOUT(POWER SLIDE DOOR)

main67004-08130iGSL30,35..LE,SE,XLE201608-201711

main67004-08140iGSL30,33..STD; GSL30,35..LE201001-201409

DE-CONTENT PACKAGE

67113APANEL, SLIDE DOOR, OUTER RH

main67113-08030iGSL30,33;GSL35..LE,XLE201001-201409

67114APANEL, SLIDE DOOR, OUTER LH

main67114-08030iASL30;GSL35..STD201001-201308

67259BREFLECTOR, SLIDE DOOR

main67259-AE010×2iASL30;GSL35..STD201001-201308

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-08020iGSL30,33;GSL35..LE,XLE201001-201409

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-08020iASL30;GSL35..STD201001-201308

67837MSEAL, DOOR VENTILATION DUCT, RH

main67837-08020×3iGSL3#201711-202009

67838ESEAL, DOOR VENTILATION DUCT, LH

main67838-08020×3iGSL3#201711-202009

67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1

main67851-08020iGSL3#201711-202009

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-08020iGSL30,33;GSL35..LE,XLE201001-201409

67865DWEATHERSTRIP, CENTER PILLAR UPPER END, RH

main67865-08010iASL30;GSL35..STD201001-201308

67866EWEATHERSTRIP, CENTER PILLAR UPPER END, LH

main67866-08010iGSL30,33..STD; GSL30..07S..LE; GSL30..08S..LE201608-201711

W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT); WITHOUT(POWER SLIDE DOOR)

67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main67871-08030-B0iGSL30,33;GSL35..LE,XLE201001-201409

GRAY,TRIM1#

main67871-08030-B1iGSL30,35..07S..XLE; GSL30..08S..(LE,XLE);GSL3#..(02S,07S)..(LE,STD)201711-201904

MD.GRAY,TRIM1#; MD.GRAY,TRIM14

main67871-08030-C0iGSL30,35..07S..XLE; GSL30..SE201608-201711

BLACK,TRIM15,43; BLACK,TRIM2#

main67871-08030-E0iGSL30,35..07S..XLE; GSL30..08S..(LE,XLE);GSL3#..(02S,07S)..(LE,STD)201711-201904

ASH BROWN,TRIM4#; ASH BROWN,TRIM42

main67871-08031iGSL3#201904-202009

67872AWEATHERSTRIP, SLIDE DOOR, NO.1 LH

main67872-08030-B0iASL30;GSL35..STD201001-201308

GRAY,TRIM1#

main67872-08030-B1iGSL30,35..07S..XLE; GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD)201608-201711

MD.GRAY,TRIM1#; MD.GRAY,TRIM14

main67872-08030-C0iGSL30,35..07S..XLE; GSL30..SE201409-201608

BLACK,TRIM15,43; BLACK,TRIM2#

main67872-08030-E0iGSL30,35..07S..XLE; GSL30..08S..(LE,XLE);GSL3#..(02S,07S)..(LE,STD)201711-201904

ASH BROWN,TRIM4#; ASH BROWN,TRIM42

main67872-08031iGSL3#201904-202009

67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-08040iGSL30,35..LE,SE,XLE201809-202009

67888BWEATHERSTRIP, SLIDE DOOR, NO.2 LH

main67888-08030iGSL30,35..LE,SE,XLE201809-202009

67927ACUSHION, REAR DOOR STIFFENER, RH

main67927-08020iASL30;GSL35..STD201001-201308

67928ACUSHION, REAR DOOR STIFFENER, LH

main67928-08020iASL30;GSL35..STD201001-201308

68103GLASS SUB-ASSY, REAR DOOR, RH

main62750-08050iASL30,GSL30,35..LE,SE,XLE; GSL30,35..STD201001-201304

*TEM,T=4.0,PRIVACY; *TEM,T=4.0,PRIVACY,CANADA SPEC

main62750-08051supersedes 62750-08061iGSL30,35..LE,SE,XLE; GSL30..STD201409-201608

*TEM,T=4.0,PRIVACY; *TEM,T=4.0,PRIVACY,REAR SIDE GLASS-PRIVATE

main62750-08060iGSL3#..STD201001-201304

*HSEA,T=4.0,GREEN

main62750-08061iGSL30,33..STD201608-201711

68104GLASS SUB-ASSY, REAR DOOR, LH

main62760-08050iASL30,GSL30,35..LE,SE,XLE; GSL30,35..STD201001-201304

*TEM,T=4.0,PRIVACY; *TEM,T=4.0,PRIVACY,CANADA SPEC

main62760-08051supersedes 62760-08061iGSL30,35..LE,SE,XLE; GSL30..STD201608-201711

REAR SIDE GLASS-PRIVATE

main62760-08060iGSL3#..STD201001-201304

*HSEA,T=4.0,GREEN

main62760-08061iGSL30,33..STD201409-201608

*HSEA,T=4.0,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-08020iASL30;GSL35..STD201001-201308

68152CRUN, REAR DOOR GLASS, LH

main68152-08020iASL30;GSL35..STD201001-201308

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-08020iASL30;GSL35..STD201001-201308

68191BRUN, REAR DOOR GLASS, NO.2 RH

main68191-08010iASL30;GSL35..STD201001-201308

68192BRUN, REAR DOOR GLASS, NO.2 LH

main68192-08010iASL30;GSL35..STD201001-201308

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-08010iGSL3#201711-202009

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-08010iGSL3#201711-202009

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-08020iASL30;GSL35..STD201001-201308

75931ATAPE, BLACK OUT, OUTER UPPER RH

main75931-08010iASL30;GSL35..STD201001-201308

75932ATAPE, BLACK OUT, OUTER UPPER LH

main75932-08010iASL30;GSL35..STD201001-201308

75933BTAPE, BLACK OUT, OUTER FRONT RH

main75933-08010iASL30;GSL35..STD201001-201308

75934BTAPE, BLACK OUT, OUTER FRONT LH

main75934-08010iASL30;GSL35..STD201001-201308

84250DSENSOR ASSY, POWER SLIDE DOOR, RH

main84250-08070iGSL30,35..LE; GSL30,35..LE,SE,XLE201001-201409

DE-CONTENT PACKAGE

main84250-08071iGSL30,35..LE,SE,XLE; GSL30..07S..LE; GSL30..08S..LE201711-202009

DE-CONTENT PACKAGE; WITHOUT(POWER SLIDE DOOR)

84260JSENSOR ASSY, POWER SLIDE DOOR, LH

main84260-08050iGSL30,35..LE; GSL30,35..LE,SE,XLE201001-201409

DE-CONTENT PACKAGE

main84260-08051iGSL30,35..LE,SE,XLE; GSL30..07S..LE; GSL30..LE201506-201608

DE-CONTENT PACKAGE; WITHOUT(POWER SLIDE DOOR)

9008011247

main90080-11247

9011906956

main90119-06956

9033330008

main90333-30008

9038708171

main90387-08171

9095001871

main90950-01871

9095001A05

main90950-01A05

9095006089

main90950-06089

91631B0618

main91631-B0618

48 parts on this diagram · 4 diagrams in section
