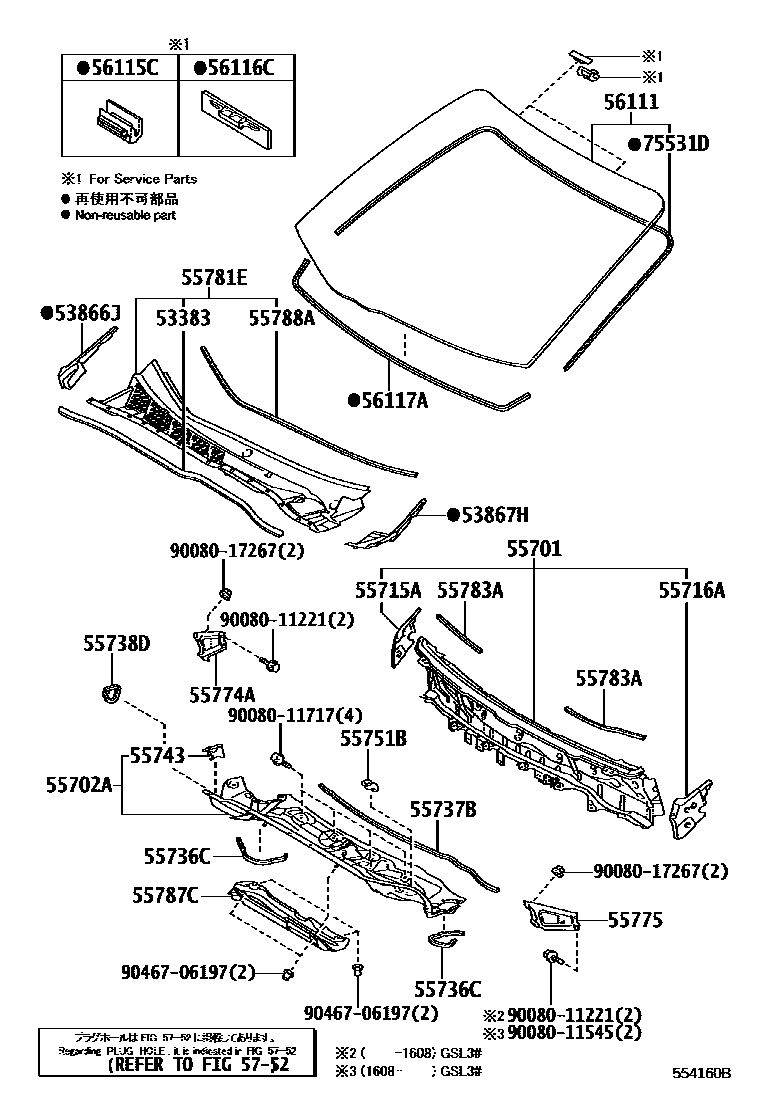

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55736CSEAL, WATER GUARD PLATE
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55743PANEL, COWL TOP OUTSIDE CORNER, RH
55751BHOSE, COWL WATER EXTRACT, NO.1
55774ABRACKET, COWL TOP INNER TO PILLAR BRACE, RH
55775BRACKET, COWL TOP INNER TO PILLAR BRACE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55783APAD, COWL TOP SILENCER
55787CINSULATOR, COWL TOP PANEL, NO.1
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*EHL,T=4.76,GREEN
*EHL,T=4.76,GREEN
*LAM,T=4.76,GREEN,HIGH GRADE PACKAGE&WINDSHIELD WIPER-RAIN SENSING
*EHL,T=4.76,GREEN,WINDSHIELD DEICER-WITH
*EHL,T=4.76,GREEN,WINDSHIELD DEICER-WITH
*EHL,T=4.76,GREEN,HIGH GRADE PACKAGE&WINDSHIELD DEICER-WITH&WINDSHIELD WIPER-RAINSENSING
*EHL,T=4.76,GREEN,HIGH GRADE PACKAGE&WINDSHIELD WIPER-RAIN SENSING
*EHL,T=4.76,GREEN,HIGH GRADE PACKAGE&WINDSHIELD WIPER-RAIN SENSING
WINDSHIELD DEICER-WITH
WINDSHIELD WIPER-RAIN SENSING
MEXICO SPEC
MEXICO SPEC
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1816; *D,L=1816,HIGH GRADE PACKAGE&WINDSHIELD WIPER-RAIN SENSING; *D,L=1816,WINDSHIELD DEICER-WITH
5752HOLE PLUG
75531DMOULDING, WINDSHIELD, OUTSIDE UPPER
9008011221
main90080-11221
9008011545
main90080-11545
9008011717
main90080-11717
9008017267
main90080-17267
9046706197
main90467-06197
29 parts on this diagram · 2 diagrams in section
