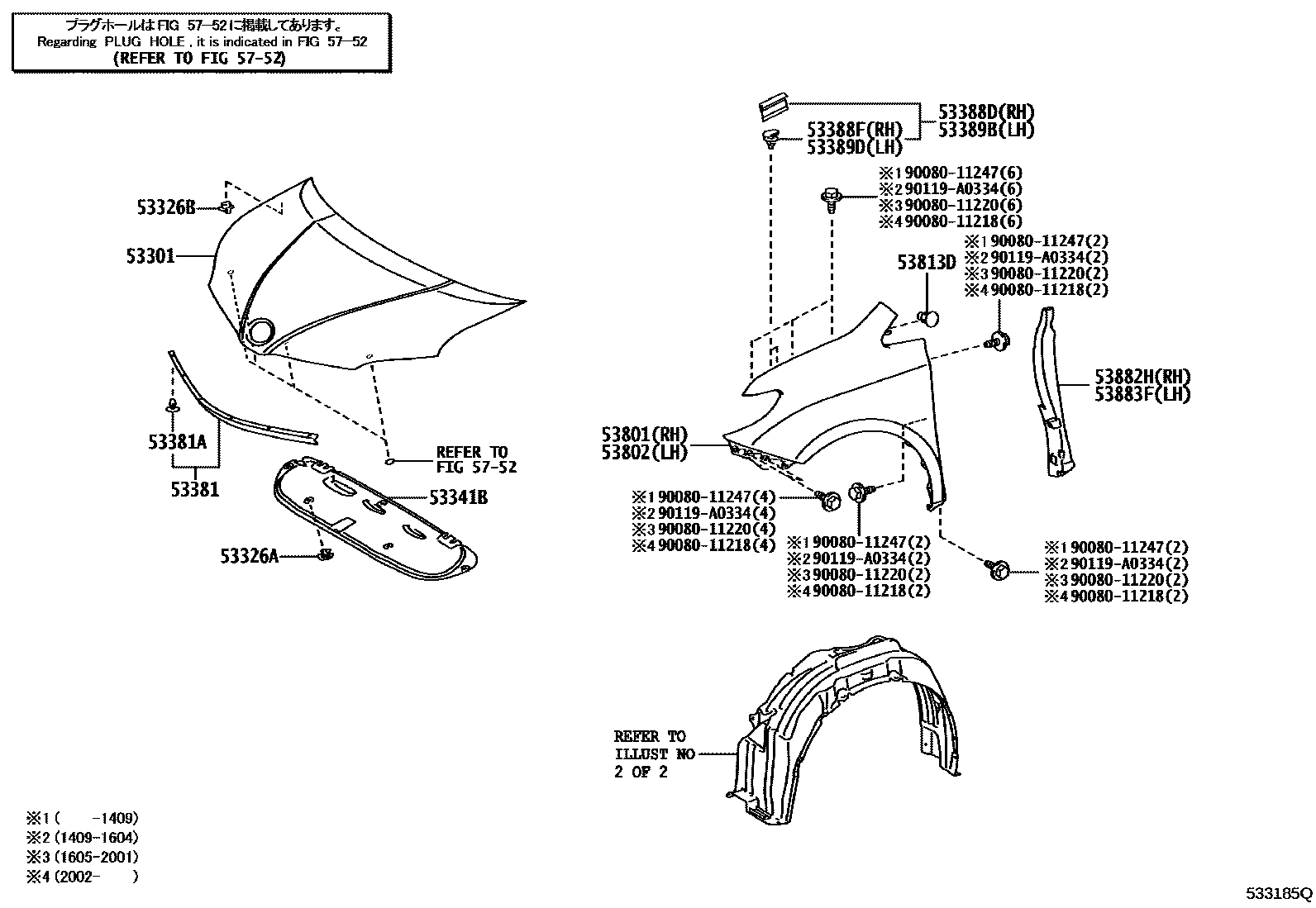

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-08040iGSL3#201409-201608

main53301-08050iGSL3#201711-202009

53326ACLIP, HOOD MOULDING

main53326-08010×5iGSL3#201409-201608

53326BCLIP, HOOD MOULDING

main53326-52010iGSL3#201711-202009

53341BINSULATOR, HOOD

main53341-08010iGSL3#201409-201608

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-08020iGSL3#201608-201711

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×6iGSL3#201608-201711

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-08010iASL30,GSL3#201001-201212

main53388-08020iGSL3#201608-201711

53388FRETAINER, HOOD TO FRONT FENDER SEAL

main67867-12150×3iGSL3#201409-201608

53389BSEAL, HOOD TO FRONT FENDER, LH

main53388-08010iASL30,GSL3#201001-201212

main53389-08020iGSL3#201409-201608

53389DRETAINER, HOOD TO FRONT FENDER SEAL

main67867-12150×3iGSL3#201409-201608

53801FENDER SUB-ASSY, FRONT RH

main53811-08040iGSL3#201711-202009

main53811-08050iASL30,GSL3#201001-201409

main53811-08060iGSL3#201409-201608

53802FENDER SUB-ASSY, FRONT LH

main53812-08020iGSL3#201711-202009

main53812-08030iGSL3#201409-201608

53813DEXTENSION, FRONT FENDER

main53813-45010×2iGSL3#201001-201002

main53813-45011×2iGSL3#201409-201608

main53813-48011×2iASL30,GSL3#201002-201202

53882HSEAL, FRONT FENDER MAIN, RH

main53882-08020iGSL3#201409-201608

53883FSEAL, FRONT FENDER MAIN, LH

main53883-08020iASL30,GSL3#201001-201409

main53883-08021iGSL3#201409-201608

5752HOLE PLUG

→ Go to FIG 57-52

9008011218

main90080-11218

9008011220

main90080-11220

9008011247

main90080-11247

90119A0334

main90119-A0334

20 parts on this diagram · 2 diagrams in section
