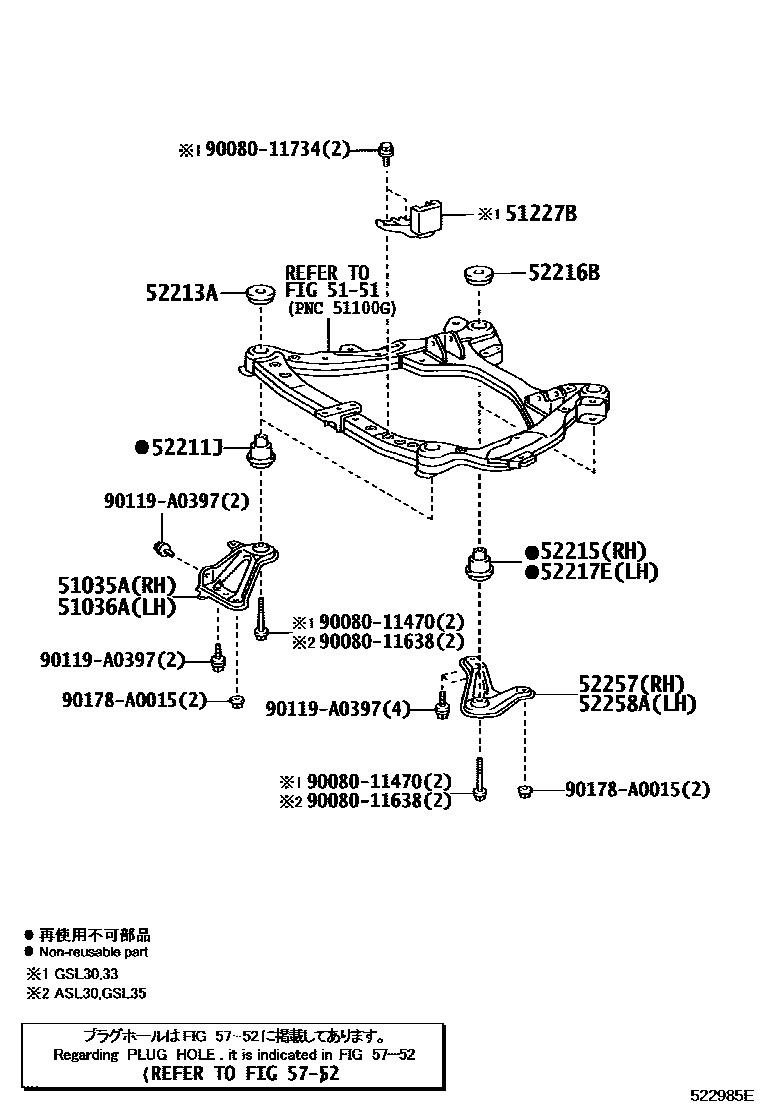

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

51035APLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-08010iGSL30,33201711-202009

main51035-08020iGSL35201608-201711

51036APLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-08010iGSL30,33201409-201608

main51036-08020iGSL35..LE,XLE201001-201409

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-08010iGSL30,33201001-201409

5151FRAME

→ Go to FIG 51-51

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06030×2iGSL30,33201608-201711

main52211-08020×2iGSL35201409-201608

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06030×2iGSL30,33201608-201711

main52213-58010×2iGSL35201409-201608

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06030iGSL30,33201711-202009

main52215-08020iGSL35..LE,XLE201001-201409

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06030×2iGSL30,33201001-201409

main52216-08020×2iGSL35..LE,XLE201001-201409

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06010iGSL30,33201409-201608

main52217-08010iASL30;GSL35..STD201001-201308

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-08010iGSL30,33201001-201409

main51023-08030iASL30;GSL35..STD201001-201308

main51023-08040iGSL30,33201711-202009

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-08010iGSL30,33201001-201409

main51024-08030iGSL35201608-201711

main51024-08040iGSL30,33201608-201711

5752HOLE PLUG

→ Go to FIG 57-52

9008011470

main90080-11470

9008011638

main90080-11638

9008011734

main90080-11734

90119A0397

main90119-A0397

90178A0015

main90178-A0015

17 parts on this diagram · 2 diagrams in section
