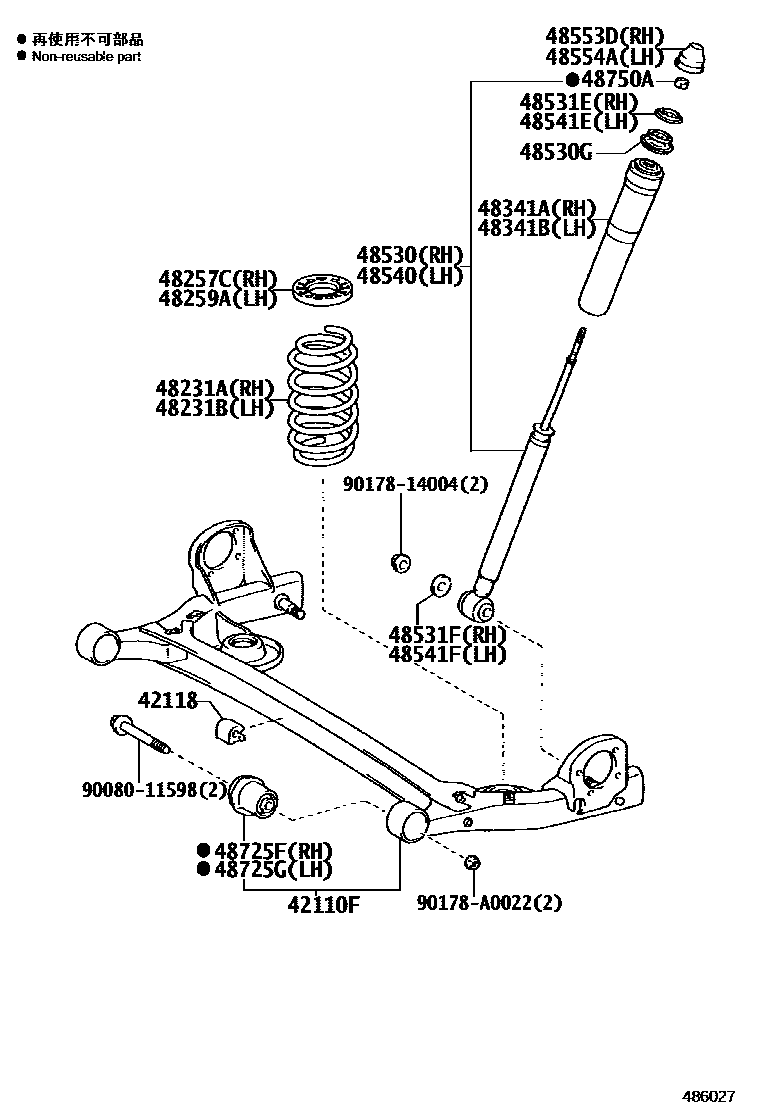

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-08040iGSL30,33;GSL35..LE,XLE201001-201409

42118DAMPER, REAR AXLE BEAM

main42118-08010iGSL30,33;GSL35..LE,XLE201001-201409

48231ASPRING, COIL, REAR RH

main48231-08010iGSL30,33..LE,STD,XLE201001-201409

main48231-08020iGSL35..STD201001-201308

main48231-08030iGSL30..SE201005-201409

main48231-08040iASL30201005-201308

main48231-08050iGSL30,33..LE,STD,XLE201409-201604

main48231-08051iGSL30,33..LE,STD,XLE201608-201711

main48231-08060iGSL30..07S..(LE,XLE); GSL35201409-201604

MOBILITY BASE VEHICLE

main48231-08061iGSL30..07S..(LE,XLE); GSL35201605-201608

MOBILITY BASE VEHICLE

main48231-08070iGSL30..SE201409-201604

main48231-08071iGSL30..SE201608-201711

48231BSPRING, COIL, REAR LH

main48231-08010iGSL30,33..LE,STD,XLE201001-201409

main48231-08020iGSL35..STD201001-201308

main48231-08030iGSL30..SE201005-201409

main48231-08040iASL30201005-201308

main48231-08050iGSL30,33..LE,STD,XLE201409-201604

main48231-08051iGSL30,33..LE,STD,XLE201608-201711

main48231-08060iGSL30..07S..(LE,XLE); GSL35201409-201604

MOBILITY BASE VEHICLE

main48231-08061iGSL30..07S..(LE,XLE); GSL35201711-202009

MOBILITY BASE VEHICLE

main48231-08070iGSL30..SE201409-201604

main48231-08071iGSL30..SE201608-201711

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-08020iASL30;GSL35..STD201001-201308

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-08020iASL30;GSL35..STD201001-201308

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-08040iGSL30,33;GSL35..LE,XLE201001-201409

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-08040iGSL3#201608-201711

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-09850iGSL30,33..LE,STD,XLE201001-201409

MARK 48531-08010

main48531-09860iGSL35..LE,XLE201001-201409

MARK 48531-08020

main48531-09870iGSL30..SE201005-201409

MARK 48531-08030

main48531-09880iASL30201005-201308

MARK 48531-08040

main48531-09A80iGSL30,33..LE,STD,XLE201409-201608

MARK 48531-08050

main48531-09A90iGSL30..07S..(LE,XLE); GSL35201608-201711

MARK 48531-08060; MARK 48531-08060,MOBILITY BASE VEHICLE

main48531-09B00iGSL30..SE201409-201608

MARK 48531-08070

main48531-09C10iGSL30,33..LE,STD,XLE201711-202009

MARK 48531-08080

main48531-09C30iGSL30..SE201608-201711

MARK 48531-08100

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90080-94196×2iASL30;GSL35..STD201001-201308

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90080-94195iASL30;GSL35..STD201001-201308

48531FRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER RH)

main90080-94194iASL30;GSL35..STD201001-201308

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-09850iGSL30,33..LE,STD,XLE201001-201409

MARK 48531-08010

main48531-09860iGSL35..LE,XLE201001-201409

MARK 48531-08020

main48531-09870iGSL30..SE201005-201409

MARK 48531-08030

main48531-09880iASL30201005-201308

MARK 48531-08040

main48531-09A80iGSL30,33..LE,STD,XLE201409-201608

MARK 48531-08050

main48531-09A90iGSL30..07S..(LE,XLE); GSL35201409-201608

MARK 48531-08060; MARK 48531-08060,MOBILITY BASE VEHICLE

main48531-09B00iGSL30..SE201409-201608

MARK 48531-08070

main48531-09C10iGSL30,33..LE,STD,XLE201711-202009

MARK 48531-08080

main48531-09C30iGSL30..SE201711-202009

MARK 48531-08100

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90080-94195iGSL3#201608-201711

48541FRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER LH)

main90080-94194iASL30;GSL35..STD201001-201308

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-08010iASL30;GSL35..STD201001-201308

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-08010iGSL30,33;GSL35..LE,XLE201001-201409

48725FBUSH, REAR AXLE CARRIER, RH

main48725-08020iGSL3#201711-202009

48725GBUSH, REAR AXLE CARRIER, LH

main48725-08020iASL30;GSL35..STD201107-201308

48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90177-12002×2iGSL30,33;GSL35..LE,XLE201001-201409

9008011598

main90080-11598

9017814004

main90178-14004

90178A0022

main90178-A0022

23 parts on this diagram · 1 diagram in section
