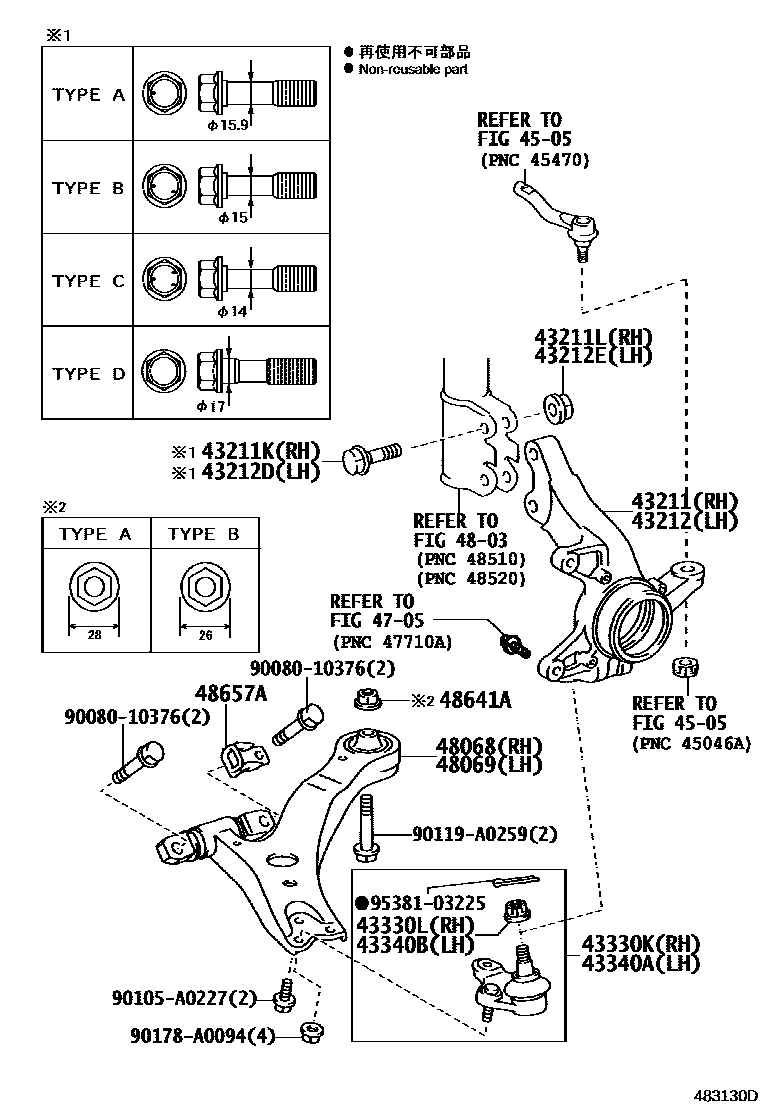

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-08030iGSL30,33201001-202009

main43211-0E010iGSL35..LE,XLE201001-202009

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17013iASL30;GSL35..STD201001-202009

OD=15.9,TYPE A:REFER ILLUST.

main90105-17014iGSL3#201001-202009

OD=15,TYPE B:REFER ILLUST.

main90105-17015iGSL3#201001-202009

OD=14,TYPE C:REFER ILLUST.

main90105-A0052iGSL3#201001-202009

OD=17,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-A0027iASL30;GSL35..STD201001-202009

43212KNUCKLE, STEERING, LH

main43212-08030iGSL30,33201001-202009

main43212-0E010iGSL35201001-202009

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17013iASL30;GSL35..STD201001-202009

OD=15.9,TYPE A:REFER ILLUST.

main90105-17014iGSL3#201001-202009

OD=15,TYPE B:REFER ILLUST.

main90105-17015iGSL3#201001-202009

OD=14,TYPE C:REFER ILLUST.

main90105-A0052iGSL3#201001-202009

OD=17,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-A0027iGSL3#201001-202009

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09780iASL30;GSL35..STD201001-202009

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90080-17214iASL30;GSL35..STD201001-202009

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-09140iGSL3#201001-202009

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90080-17214iGSL30,33;GSL35..LE,XLE201001-202009

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

4705FRONT DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-05

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-08040iASL30;GSL35..STD201001-202009

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-08040iGSL3#201001-202009

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90080-17223iGSL3#201604-202009

TYPE B:REFER ILLUST.

main90179-14045iGSL3#201604-202009

TYPE A:REFER ILLUST.

main90179-14045iASL30;GSL35..STD201001-201604

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-06010iASL30;GSL35..STD201001-202009

9008010376

main90080-10376

90105A0227

main90105-A0227

90119A0259

main90119-A0259

90178A0094

main90178-A0094

9538103225

main95381-03225

22 parts on this diagram · 1 diagram in section
