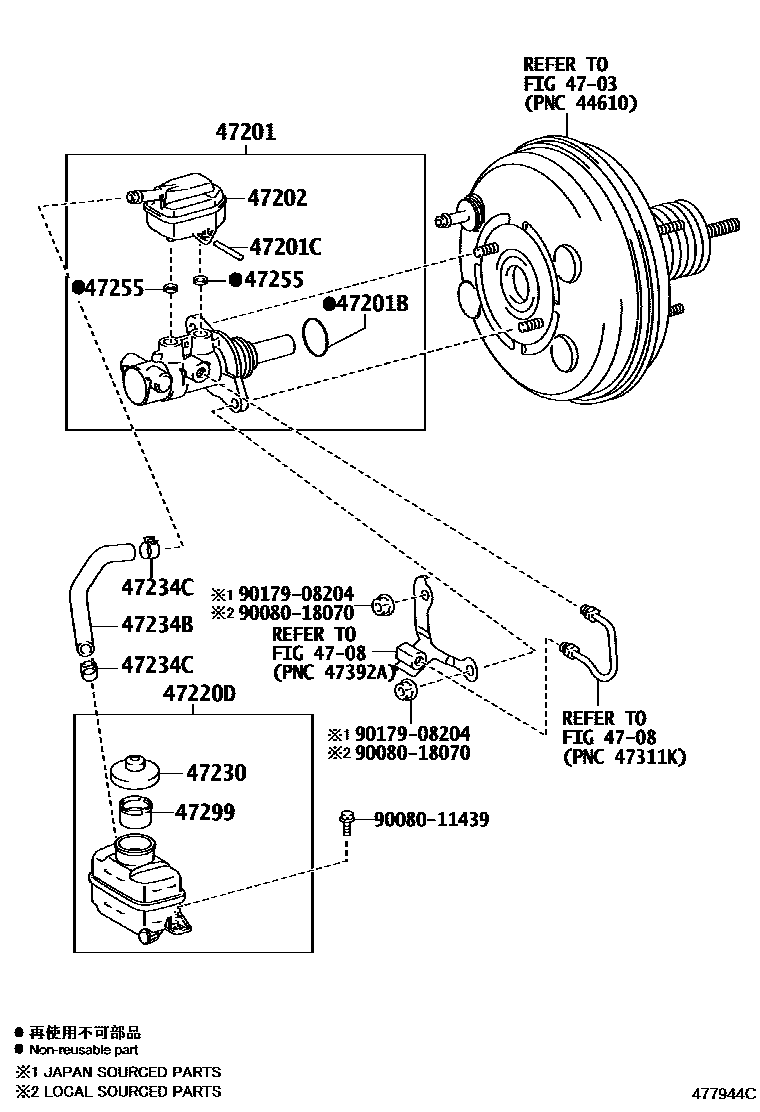

BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-08080iGSL3#201709-201711

main47201-0E060iGSL3#201802-202009

main47201-48200iASL30,GSL3#201001-201206

main47201-48202iGSL30,33;GSL35..LE,XLE201206-201409

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASL30;GSL35..STD201001-201308

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGSL30,33;GSL35..LE,XLE201001-201409

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48200iASL30;GSL35..STD201001-201308

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0E060iASL30;GSL35..STD201001-201308

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iGSL3#201409-201412

main47230-01031iGSL3#201412-201608

47234BTUBE, RESERVOIR, NO.1

main47234-45010iGSL3#201409-201608

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90080-46354×2iASL30;GSL35..STD201001-201308

(L)

main90466-A0013×2iGSL3#201409-201608

(J)

main96133-41500×2iGSL30,33;GSL35..LE,XLE201001-201311

(J)

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iGSL30,33;GSL35..LE,XLE201001-201409

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iASL30;GSL35..STD201001-201308

9008011439

main90080-11439

9008018070

main90080-18070

9017908204

main90179-08204

15 parts on this diagram · 2 diagrams in section
