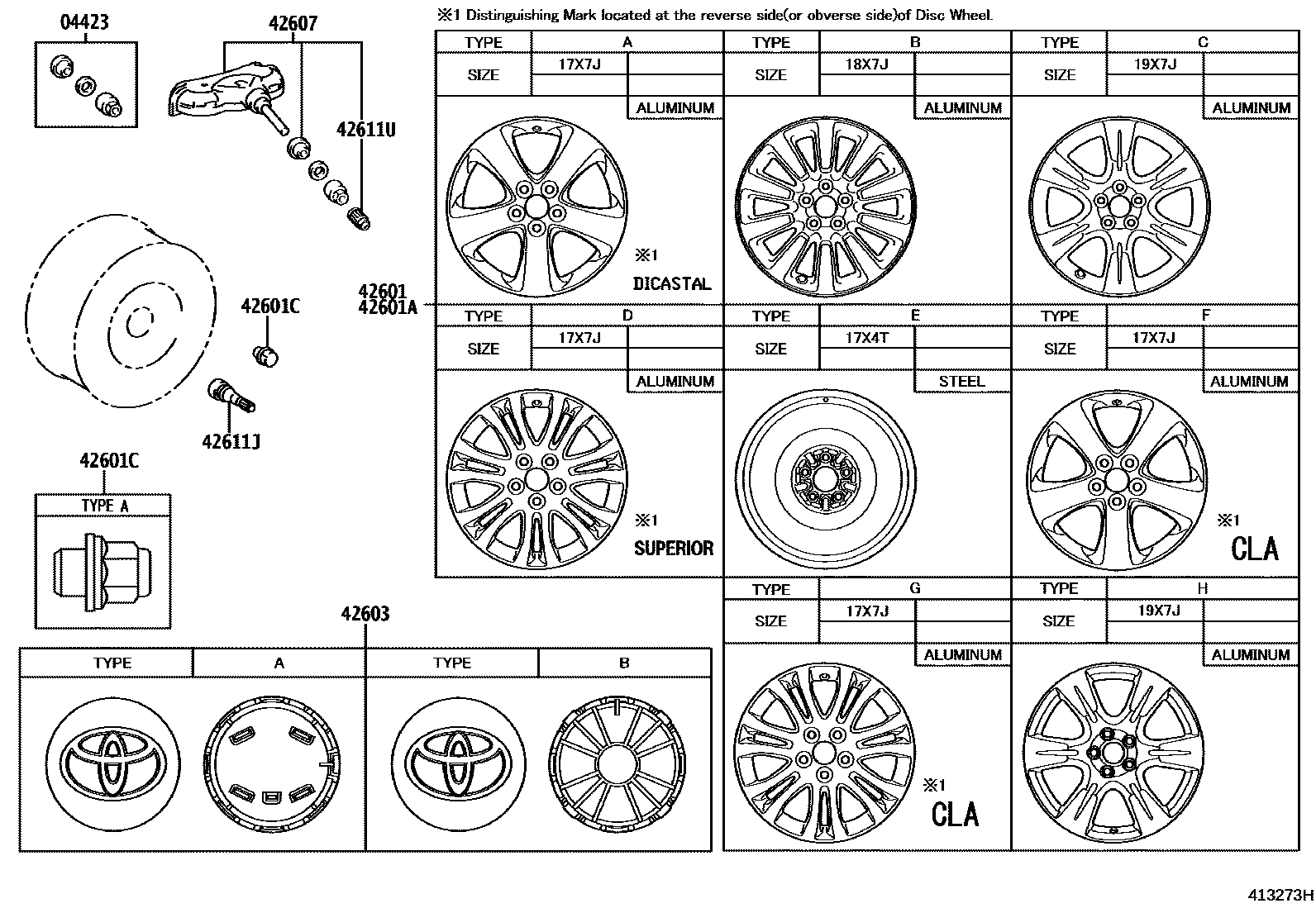

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
18X7J,#,TYPE B:REFER ILLUST.
18X7J,#,TIRE & DISK WHEEL-235/55R18 (7J ALLOY),TYPE B:REFER ILLUST.
18X7J,#,TYPE B:REFER ILLUST.
18X7J,#,TIRE & DISC WHEEL-235/55R18 (7J ALLOY),TYPE B:REFER ILLUST.
17X7J,#,TYPE F:REFER ILLUST.
17X7J,#,TYPE A:REFER ILLUST.
18X7J,#,MEXICO SPEC&TIRE & DISC WHEEL-235/55R18 (7J ALLOY),TYPE B:REFER ILLUST.
18X7J,#,TYPE B:REFER ILLUST.
18X7J,#,TIRE & DISC WHEEL-235/55R18 (7J ALLOY),TYPE B:REFER ILLUST.
17X7J,#,TYPE D:REFER ILLUST.
17X7J,#,TYPE D:REFER ILLUST.
19X7J,#,TYPE C:REFER ILLUST.
19X7J,#,TYPE H:REFER ILLUST.
19X7J,#,TYPE C:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE E:REFER ILLUST.
17X4T,TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
*ALU,TYPE A:REFER ILLUST.
*ALU,TYPE B:REFER ILLUST.
*ALU,TYPE A:REFER ILLUST.
*ALU,TIRE & DISC WHEEL-235/55R18 (7J ALLOY),TYPE A:REFER ILLUST.
*ALU,TIRE & DISK WHEEL-235/55R18 (7J ALLOY),TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-235/55R18 (7J ALLOY),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
*ALU,TYPE A:REFER ILLUST.
*ALU,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
8 parts on this diagram · 1 diagram in section
