30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90080-10299×2i201005-201308

*10-1.25PX50-30,NO.1

main90080-10338i201608-201711

*10-1.25PX41-30,NO.3

main90080-11310×6i201001-201308

*12-1.25PX55-30,NO.1

main90080-11604i201001-201308

*12-1.25PX50-30,NO.2

31406ABRACKET SUB-ASSY, FLEXIBLE HOSE

main31406-08010i201001-201409

main31406-0T010i201005-201308

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-35230i201409-201608

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24030i201001-201409

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064i201409-201501

TRANSAXLE NO.=2XXXXX

main90341-A0003i201501-201608

TRANSAXLE NO.=3XXXXX

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-07010i201001-201202

main35102-07011i201202-201409

main35102-07012i201411-201608

TRANSAXLE NO.=3XXXXX

main35102-33060i201001-201308

main35102-33061i201309-201409

main35102-33090i201005-201308

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08431×2i201001-201308

*8-1.25PX28-22,NO.1

main90105-A0109×2i201409-201608

*8-1.25PX28-22,NO.1

main90105-A0213×12i201001-201409

*8-1.25PX28-22,NO.2

main91551-00828×12i201001-201409

*8-1.25PX28-22,NO.2

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90080-34016i201001-201409

main90341-08001i201001-201308

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90080-30075i201501-201608

NO.1

main90080-30105×2i201501-201608

*325,NO.2

main90301-06196i201409-201501

TRANSAXLE NO.=2XXXXX

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90080-36120i201501-201608

main90364-18010i201409-201501

TRANSAXLE NO.=2XXXXX

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008i201001-201409

main90430-A0003i201501-201608

TRANSAXLE NO.=3XXXXX

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001×2i201001-201409

main90341-A0001×2i201409-201608

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149i201001-201308

main90930-03216i201608-201711

NO.1

main90930-03230i201608-201711

NO.2

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03187i201001-201308

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-48030i201608-201711

TOYOTA:REFER 35-01

main35104-48040i201608-201711

AISIN:REFER 35-01

main35141-07011i201001-201205

main35141-07012i201409-201411

main35141-07014i201501-201510

TRANSAXLE NO.=3XXXXX

main35141-07015i201510-201608

main35141-33071i201001-201203

main35141-33072i201203-201402

main35141-33073i201402-201409

main35141-33140i201005-201308

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×8i201711-202009

main90341-A0001×3i201409-201608

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3i201001-201308

main90341-A0005×3i201001-201409

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90080-30105×3i201001-201409

main90301-06196×3i201001-201308

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018×4i201108-201409

main90301-10189×4i201001-201108

main90301-A0016×4i201001-201409

main90430-14008×3i201711-202009

35104VHOSE (FOR BREATHER PLUG)

main35121-33050i201005-201308

main35121-45020i201608-201711

main35121-73010i201001-201308

main35121-73011i201409-201608

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5i201001-201308

35104XRING, O (FOR BREATHER PLUG)

main90301-06005i201001-201105

main90301-06021i201105-201308

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3i201409-201608

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034i201001-201409

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008i201001-201409

main90430-A0002i201501-201608

TRANSAXLE NO.=3XXXXX

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-07010i201501-201608

TRANSAXLE NO.=3XXXXX

main35106-33061i201001-201308

main35106-33070i201005-201308

main35106-48010i201409-201501

TRANSAXLE NO.=2XXXXX

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90080-11496i201409-201608

NO.2

main90119-06173×18i201001-201308

main90119-A0298×17i201001-201409

NO.1

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007i201001-201308

main90253-A0012i201411-201608

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08432×3i201001-201308

*8-1.25PX45-22,NO.1

main90105-A0110×3i201501-201608

*8-1.25PX45-22,AXLE NO.=3XXXXX,NO.1

main90105-A0111×17i201409-201608

*8-1.25PX45-22,NO.2

main91551-00835×12i201711-202009

*8-1.25PX35-22,NO.2

main91551-00840×6i201608-201711

*8-1.25PX40-22,NO.1

main91551-10845×17i201001-201409

*8-1.25PX45-22,NO.2

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-07020i201409-201608

main35125-33130i201001-201409

main35125-48090i201608-201711

main35125-73010i201005-201308

35145CGASKET, TRANSAXLE CASE

main35145-07010i201001-201409

main35145-33010i201001-201308

35148GASKET, GOVERNOR APPLY, NO.1

main35145-07010×2i201501-201608

TRANSAXLE NO.=3XXXXX

main35145-33010×2i201001-201308

35163APLATE, TRANSAXLE REAR COVER

main35163-07010i201001-201409

main35163-33010i201001-201308

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90080-14046×2i201501-201608

main90148-60055×2i201001-201308

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-08010i201501-201608

TRANSAXLE NO.=3XXXXX

main35168-33080i201409-201501

TRANSAXLE NO.=2XXXXX

main35168-73010i201005-201308

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-08010×2i201001-201409

main35394-30011×2i201001-201308

main35394-48010×3i201608-201711

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9008011209

main90080-11209

9011908C73

main90119-08C73

9094901C99

main90949-01C99

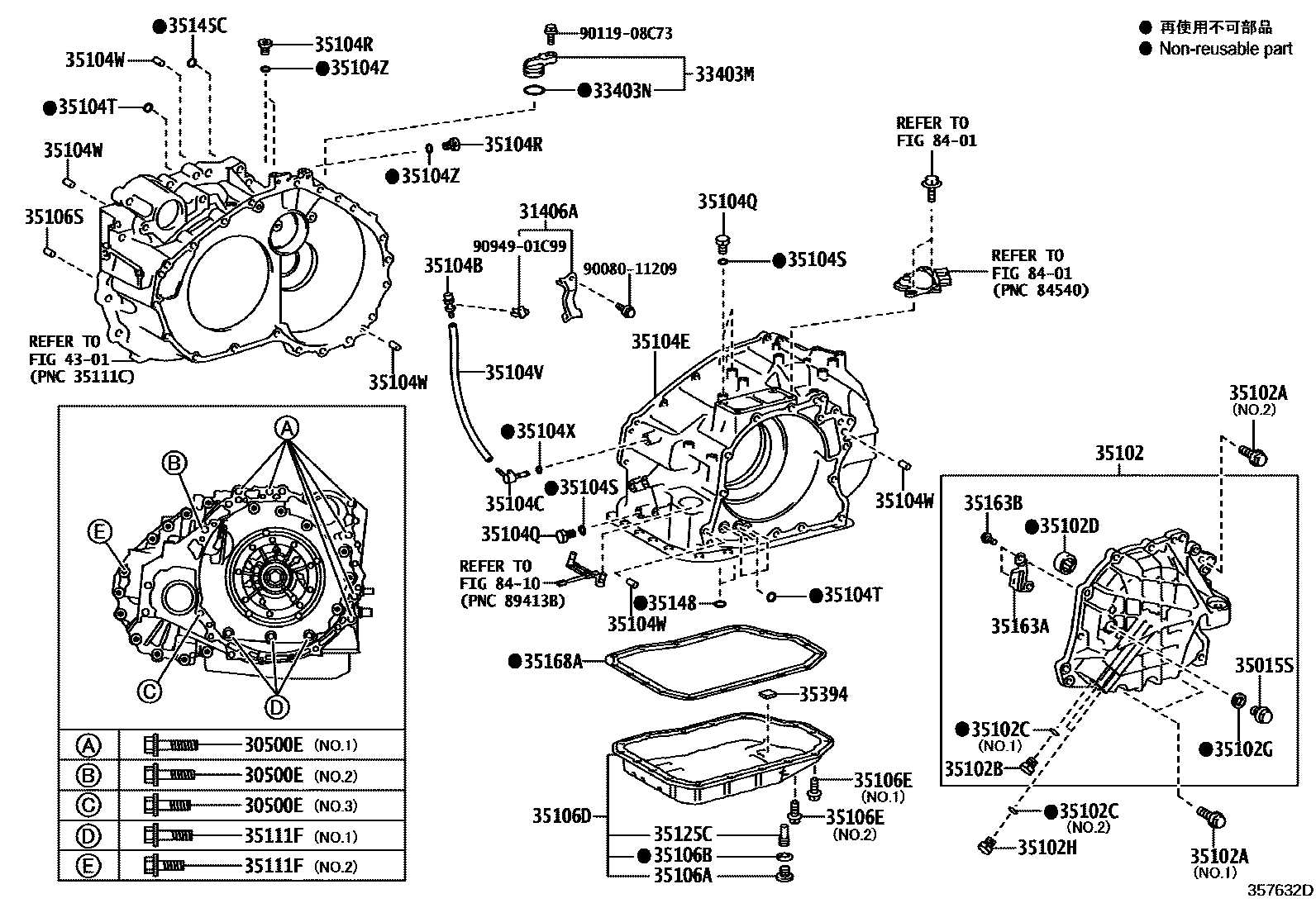

TRANSMISSION CASE & OIL PAN (ATM)
