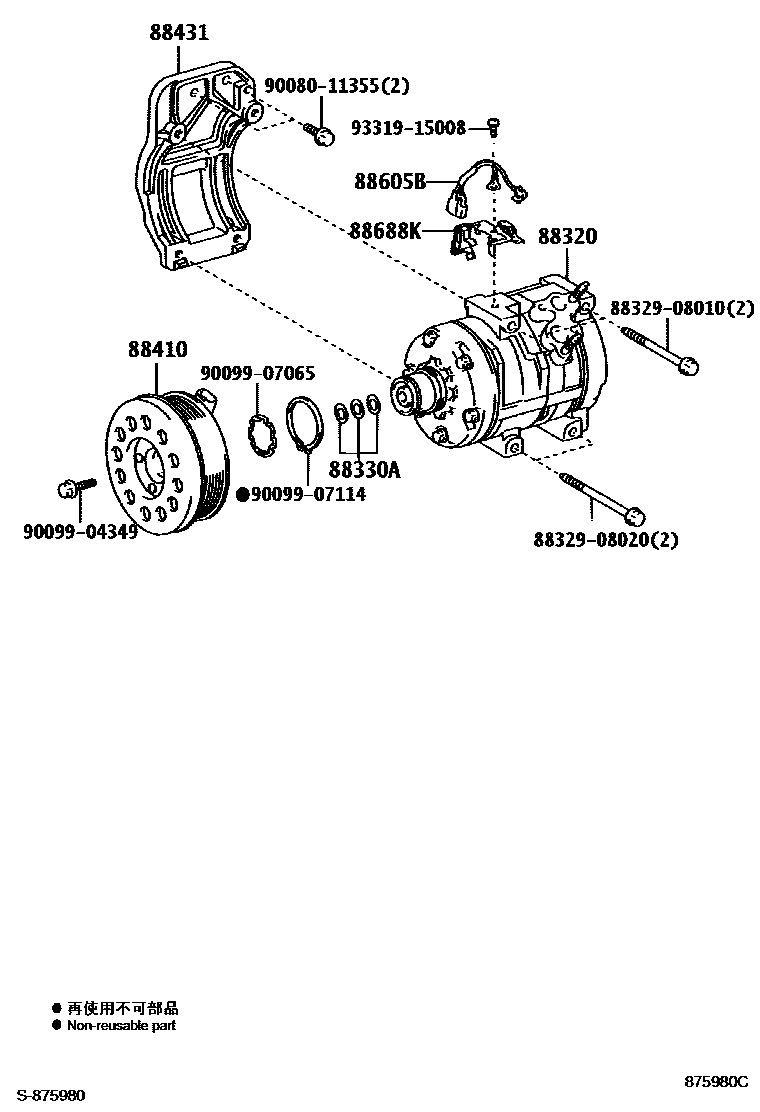

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88320COMPRESSOR ASSY, COOLER

main88320-08050iMCL2#200301-200409

main88320-08051iMCL2#200409-200509

main88320-08060iGSL2#200806

main88320-28420iGSL2#200612-200806

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMCL2#200301-200509

88410CLUTCH ASSY, MAGNET

main88410-08030iMCL2#200509-200612

main88410-33150iGSL2#200612

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-08010iMCL2#200301-200509

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-08010iMCL2#200301-200509

88688KBRACKET, COOLER COMPRESSOR

main88688-08110iMCL2#200301-200509

main88688-33460iGSL2#200612-200806

main88688-48250iGSL2#200806

8832908010PISTON SUB-ASSY, COOLER COMPRESSOR

main88329-08010

8832908020PISTON SUB-ASSY, COOLER COMPRESSOR

main88329-08020

9008011355

main90080-11355

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9331915008

main93319-15008

13 parts on this diagram · 2 diagrams in section
