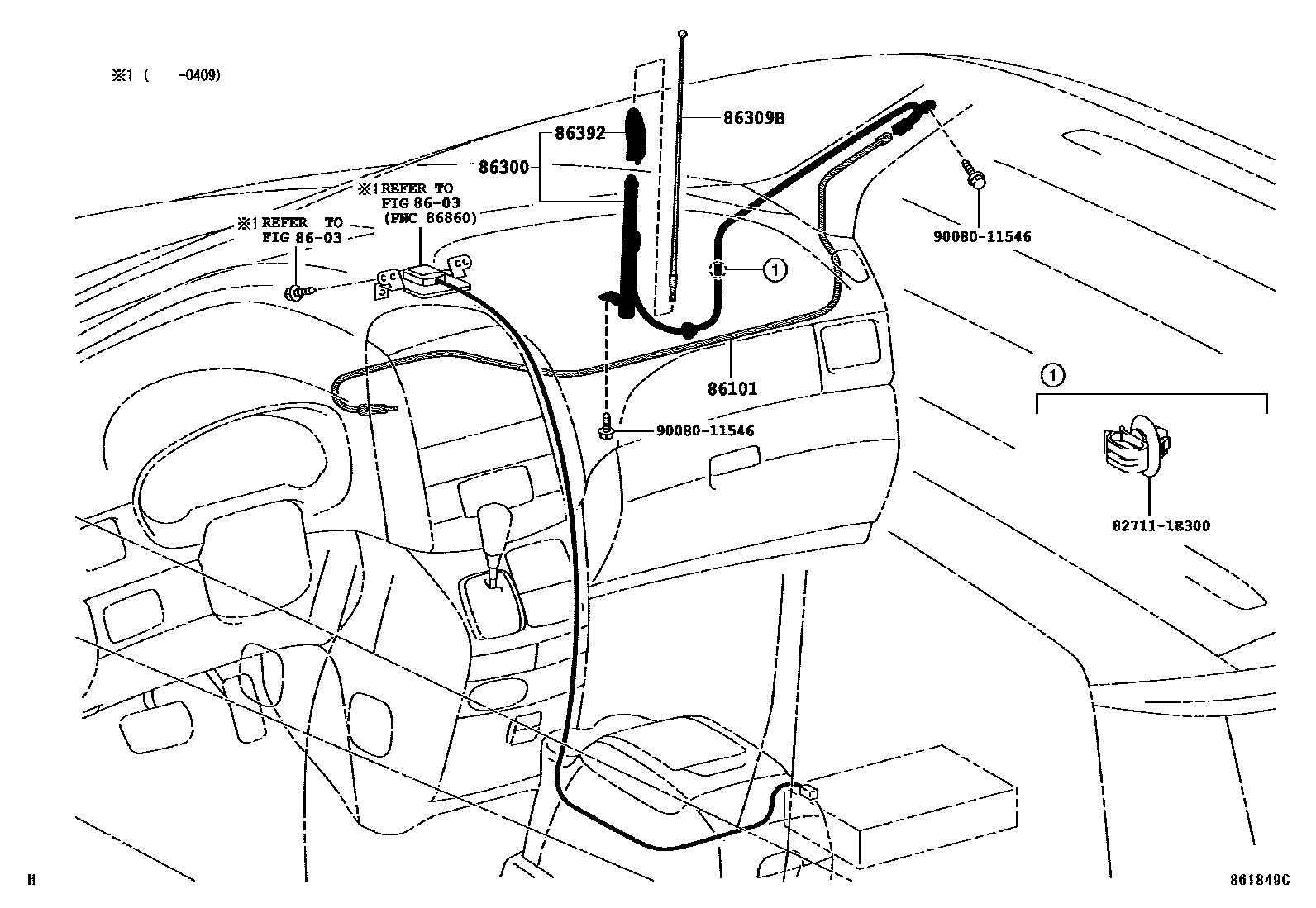

ANTENNA

8603NAVIGATION & FRONT MONITOR DISPLAY

86101CORD SUB-ASSY, ANTENNA

main86101-AE010supersedes 86101-AE020i200612

POLE ANTENNA

main86101-AE020supersedes 86101-AE010i200612-200708

QUAR. WINDOW ANTENNA

AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL),QUAR. WINDOW ANTENNA

86300ANTENNA ASSY, W/HOLDER

main86300-AE010supersedes 86300-AE021i200301-200509

AUDIO-AM/FM CST CD 6SP,POLE ANTENNA; POLE ANTENNA

main86300-AE021supersedes 86300-AE010i200612-200708

QUAR. WINDOW ANTENNA

main86300-AE020i200301-200306

AUDIO-AM/FM CST CD 10SP(JBL),QUAR. WINDOW ANTENNA; AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL),QUAR. WINDOW ANTENNA; QUAR. WINDOW ANTENNA

86309BPOLE SUB-ASSY, PULL TOP ANTENNA

main86309-AA041i200301-200509

AUDIO-AM/FM CST CD 6SP

86392ORNAMENT, ANTENNA

main86392-AE010i200301-200509

AUDIO-AM/FM CST CD 6SP

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

9008011546

7 parts on this diagram · 3 diagrams in section
