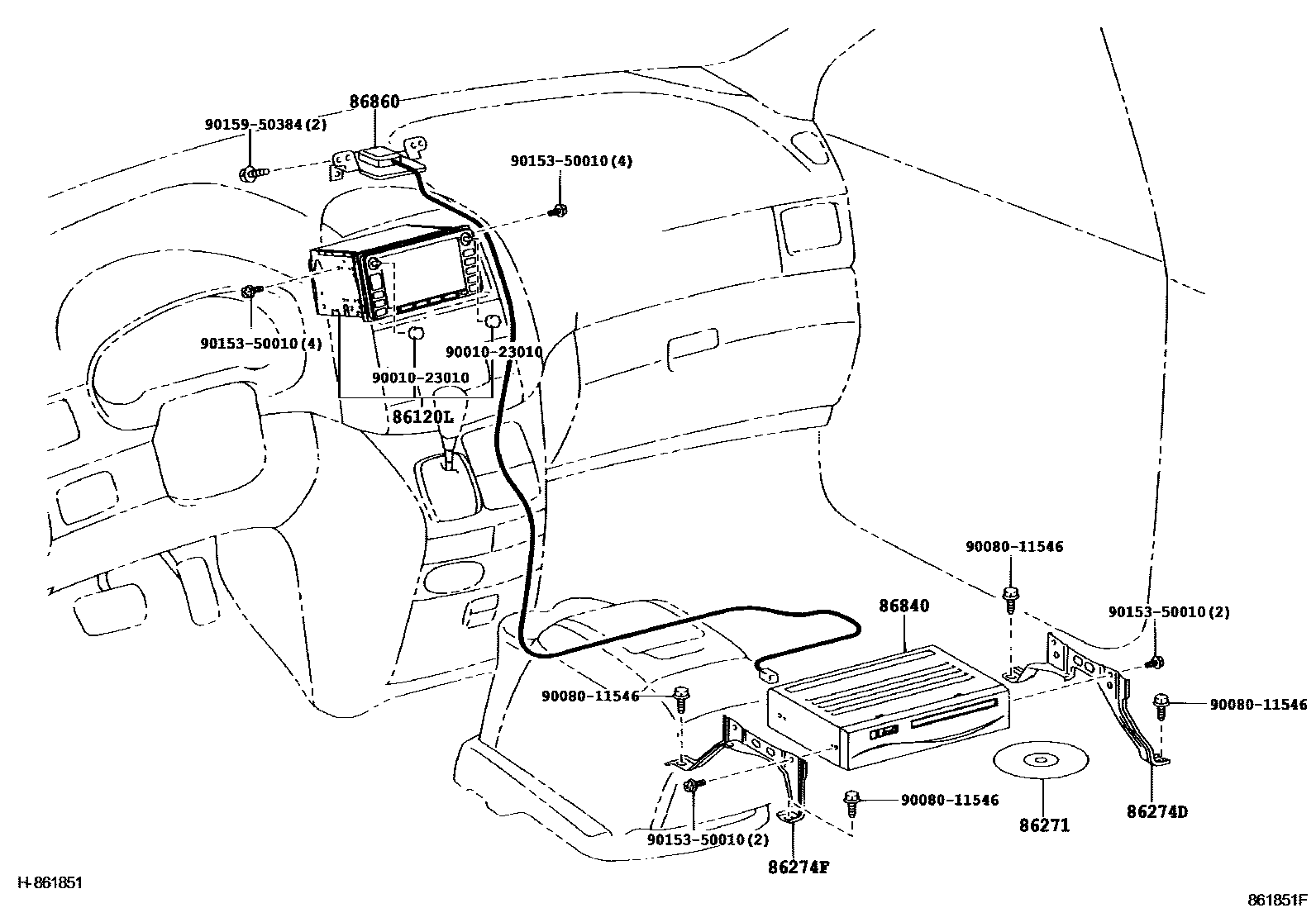

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1

86120LRECEIVER ASSY, NAVIGATION

main86120-08150iMCL20,25..XLE..USA200301-200409

FUJITSU TEN,ID=17005,EMV & NAVIGATION SYSTEM-WITH

main86120-08160iMCL20..USA;MCL25..XLE;MCL25..LE..USA;MCL20..XLE..CND200509-200606

DENSO,ID=E7007,AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)

main86120-08161iGSL20..USA;GSL25..XLE;GSL25..LE..USA;GSL20..XLE..CND200612

DENSO ID=E7007,AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)

main86120-34030iMCL20,25..XLE..USA200409-200410

DENSO,ID=E7006,EMV & NAVIGATION SYSTEM-WITH

86271DISC, DISC PLAYER

main86271-33031iMCL20,25..XLE..USA200301-200308

EMV & NAVIGATION SYSTEM-WITH

main86271-33032iMCL20,25..XLE..USA200308-200409

EMV & NAVIGATION SYSTEM-WITH

main86271-33043iMCL20,25..XLE..USA200409-200410

EMV & NAVIGATION SYSTEM-WITH

main86271-33044iMCL20,25..XLE..USA200410-200509

EMV & NAVIGATION SYSTEM-WITH

main86271-53020iMCL20..USA;MCL25..XLE;MCL25..LE..USA;MCL20..XLE..CND200509-200606

AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)

main86271-53021iGSL20..USA;GSL25..XLE;GSL25..LE..USA;GSL20..XLE..CND200612-200709

AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)

main86271-53022iGSL20..USA;GSL25..XLE;GSL25..LE..USA;GSL20..XLE..CND200710-200807

AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)

main86271-53023iGSL20..USA;GSL25..XLE;GSL25..LE..USA;GSL20..XLE..CND200808-200907

AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)

main86271-53024iGSL20..USA;GSL25..XLE;GSL25..LE..USA;GSL20..XLE..CND200908

AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)

86274DBRACKET, DISC PLAYER

main86274-45010iMCL20,25..XLE..USA200301-200409

EMV & NAVIGATION SYSTEM-WITH

86274FBRACKET, DISC PLAYER, NO.2

main86274-45020iMCL20,25..XLE..USA200301-200409

EMV & NAVIGATION SYSTEM-WITH

86840CABLE, BOND (FOR NAVIGATION COMPUTER)

main86841-45010iMCL20,25..XLE..USA200301-200409

EMV & NAVIGATION SYSTEM-WITH

86860ANTENNA ASSY, NAVIGATION

main86860-45010iMCL20,25..XLE..USA200301-200409

EMV & NAVIGATION SYSTEM-WITH

9001023010

main90010-23010

9008011546

main90080-11546

9015350010

main90153-50010

9015950384

main90159-50384

10 parts on this diagram · 4 diagrams in section
