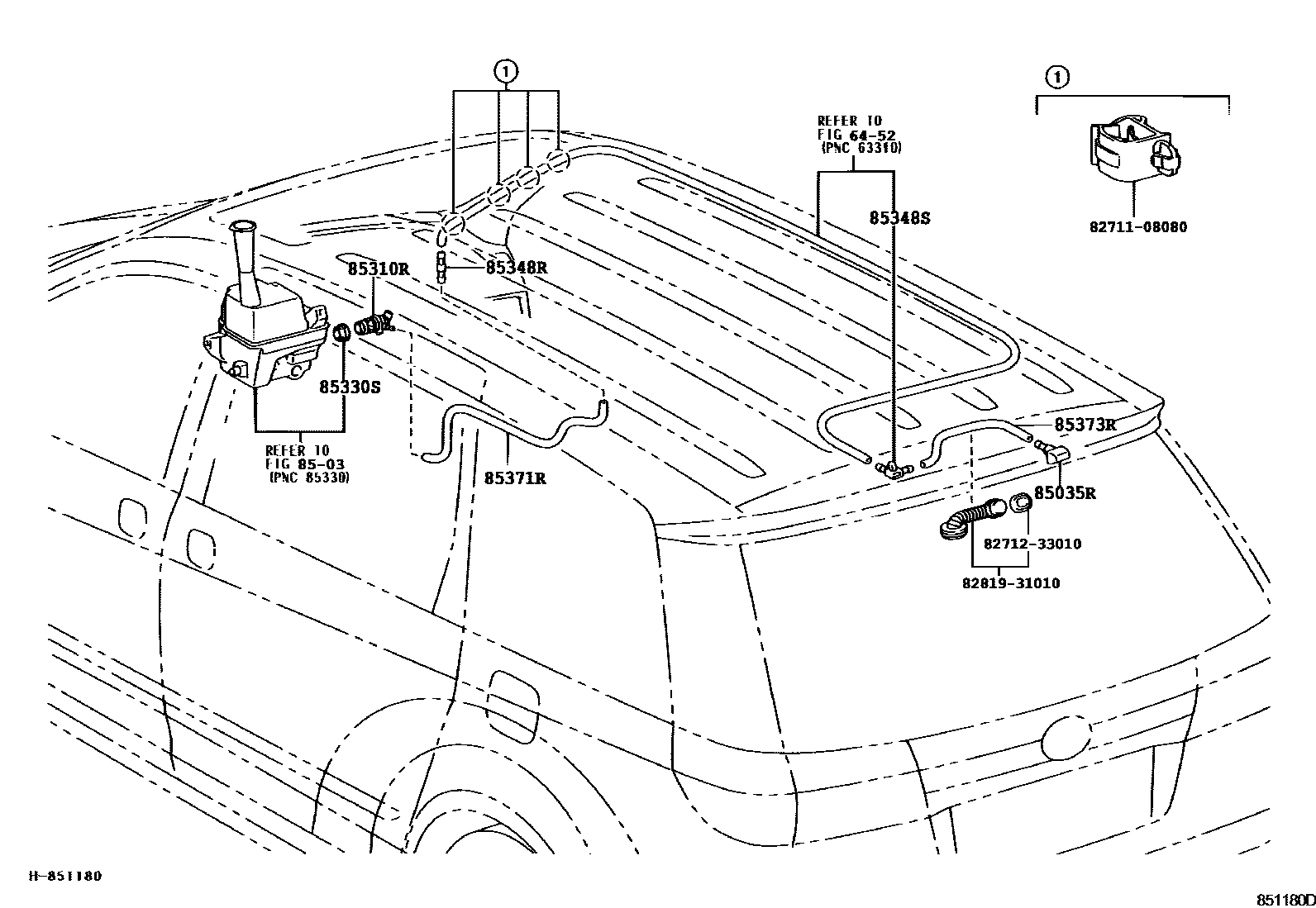

REAR WASHER

6452ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-52

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-AE010iMCL2#200301-200408

main85391-AE011iMCL2#200408-200509

85310RMOTOR ASSY, REAR WASHER

main85340-AE010iMCL2#200301-200509

85330SBUSH, REAR WASHER JAR

main85336-60300iMCL2#200301-200509

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-06020iMCL2#200301-200509

main85375-0E010iGSL2#200908

85348SJOINT, REAR WASHER ELBOW, NO.1

main85377-06020iMCL2#200301-200509

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main85374-AE060iMCL2#200301-200509

L=1500

main85374-AE061iGSL2#200908

L=1500

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90068-33035iMCL2#200301-200509

L=230

8271108080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-08080

8271233010CLAMP, WIRING HARNESS

main82712-33010

8281931010GROMMET, WIRING HARNESS

main82819-31010

12 parts on this diagram · 1 diagram in section
