OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

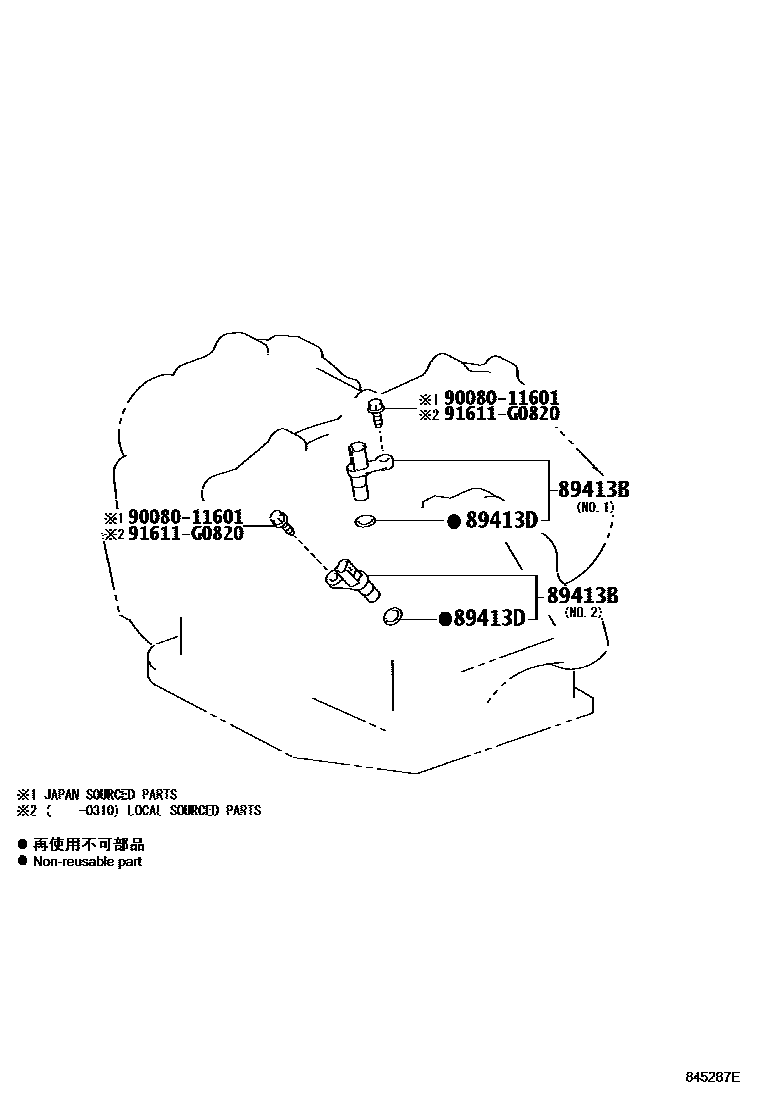

Parts diagram

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-08010i200301-200509

NO.1

main89413-08020i200509-200612

NO.2

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2i200612

9008011601

main90080-11601

91611G0820

main91611-G0820

4 parts on this diagram · 1 diagram in section
