SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1IGNITION & COMBINATION SWITCH0008 1SEAT 0009 1DOOR,ROOF,FLOOR & BACK DOOR

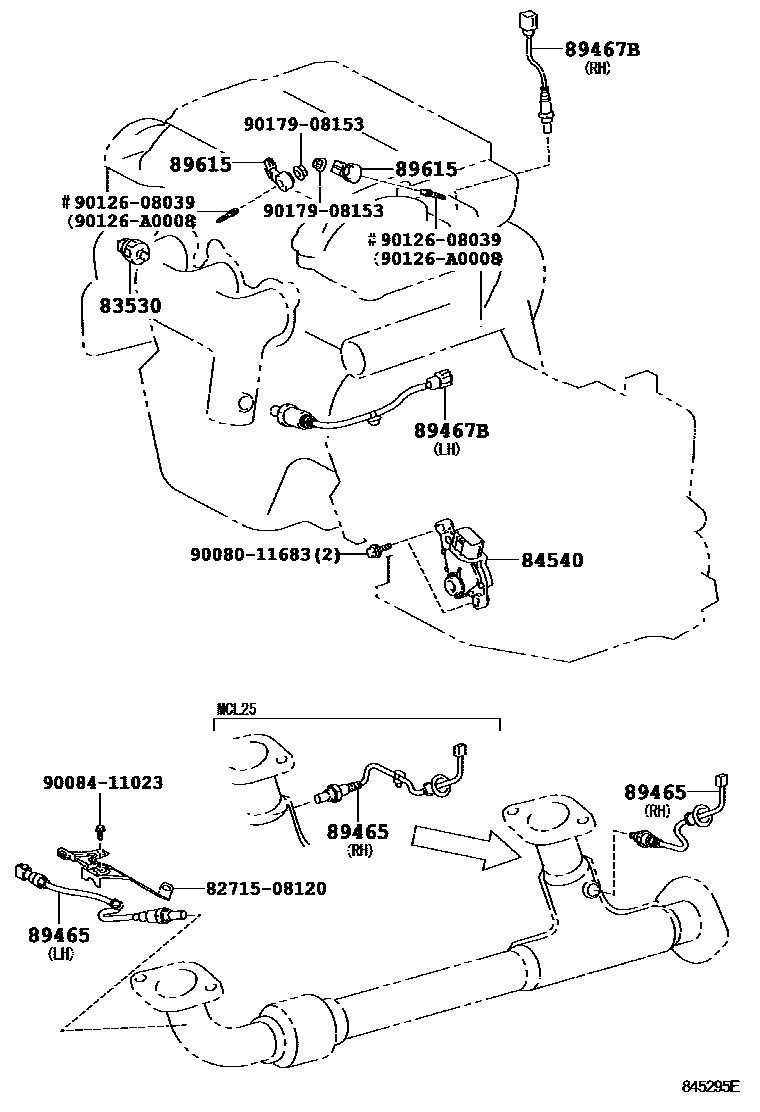

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iGSL2#200612

(L),DENSO

main83530-0E010iMCL2#200509-200612

DENSO

main83530-28020iGSL2#200612

(J),DENSO

main83530-60020iGSL2#200612

YAZAKI

main83530-AA011iMCL2#200509-200612

FASCO

sub83530-0E010

main83530-AA011iMCL2#200301-200509

sub83530-0E010

84540SWITCH ASSY, NEUTRAL START

main84540-06010iMCL2#200301-200409

main84540-0E010iMCL2#200409-200912

89465SENSOR, OXYGEN

main89465-08030iMCL20,23200301-200612

RH

main89465-08040iMCL2#200301-200612

LH

sub89465-48170

main89465-08050iMCL25200301-200408

RH

main89465-08051iMCL25200408-200612

RH

main89465-08070iGSL20,23200612

RH

main89465-08080iGSL25200612

RH

main89465-08090iGSL2#200612

LH

89467BSENSOR, AIR FUEL RATIO

main89467-08010iMCL2#200301-200612

LH

sub89467-48050

main89467-08020iGSL2#200301-200707

RH

sub89467-08040

main89467-08030iGSL2#200612-200707

LH

sub89467-08050

main89467-08040iGSL2#200708

RH

main89467-08050iGSL2#200708-200907

LH

sub89467-08070

main89467-08070iGSL2#200908

LH

89615SENSOR, KNOCK CONTROL

main89615-06010iMCL2#200412-200612

(L)

main89615-20090iMCL2#200301-200406

main89615-20090iMCL2#200406-200612

(J)

8271508120BRACKET,WIRING HARNESS CLAMP

main82715-08120

9008011683

main90080-11683

9008411023

main90084-11023

9012608039

main90126-08039

90126A0008

main90126-A0008

9017908153

main90179-08153

11 parts on this diagram · 9 diagrams in section
