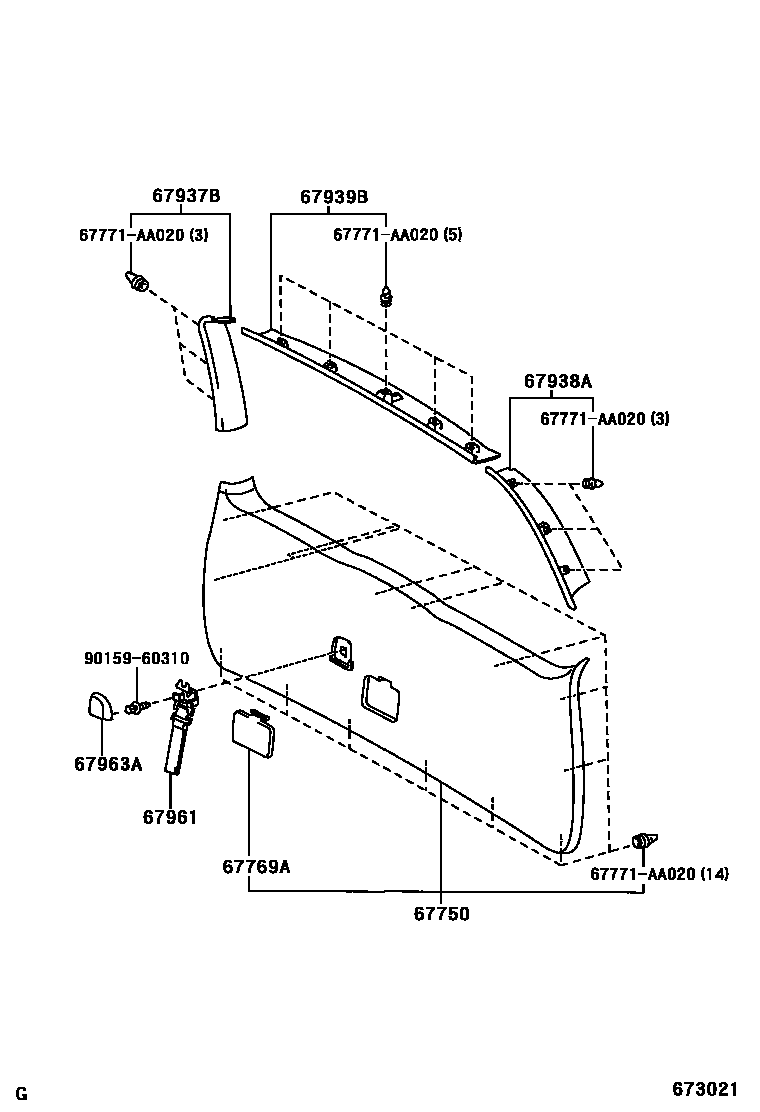

BACK DOOR PANEL & GLASS

67750BOARD ASSY, BACK DOOR TRIM

main67750-AE010-B0i200612-200912

STONE,TRIM1#

main67750-AE010-E0i200509-200612

FAWN,TRIM4#

67769APLATE, BACK DOOR SERVICE HOLE

main67807-AE010-B0i200509-200612

STONE,TRIM1#

main67807-AE010-E0i200612-200912

FAWN,TRIM4#

67937BGARNISH, BACK DOOR SIDE, RH

main67937-AE010-B0i200509-200612

STONE,TRIM1#

main67937-AE010-E0i200509-200612

FAWN,TRIM4#

67938AGARNISH, BACK DOOR SIDE, LH

main67938-AE010-B0i200612-200912

STONE,TRIM1#

main67938-AE010-E0i200301-200509

FAWN,TRIM4#

main67938-AE020-B0i200612-200912

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1#; AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR,STONE,TRIM1#

main67938-AE020-E0i200509-200612

EASY CLOSER DOOR-RH&LH SLIDE&BACK DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4#; EASY CLOSER DOOR-RH&LH SLIDE&BACK DOOR,FAWN,TRIM4#

67939BGARNISH, BACK DOOR, CENTER

main67939-AE010-B0i200612-200912

STONE,TRIM1#

main67939-AE010-E0i200612-200912

FAWN,TRIM4#

main67939-AE020-B0i200509-200601

EASY CLOSER DOOR-RH&LH SLIDE&BACK DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1#; SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1#

main67939-AE020-E0i200612-200912

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4#; SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4#

67961STRAP, BACK DOOR PULL

main67908-08011-B1i200612-200912

CHARCOAL,TRIM1#

main67908-08011-E3i200509-200612

FAWN,TRIM4#

67963ACOVER, BACK DOOR STRAP

main67963-08010-B2i200301-200509

STONE,TRIM1#

main67963-08010-E1i200612-200912

FAWN,TRIM4#

67771AA020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-AA020

9015960310

main90159-60310

9 parts on this diagram · 2 diagrams in section
