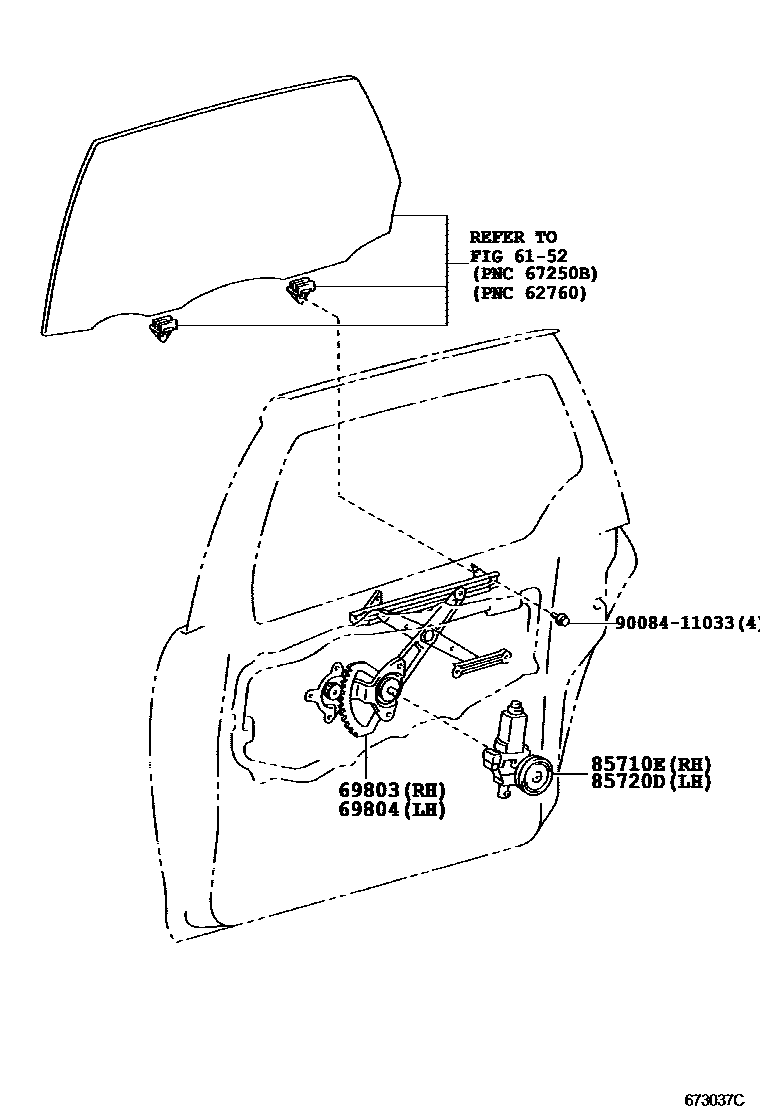

REAR DOOR WINDOW REGULATOR & HINGE

6152SIDE WINDOW

→ Go to FIG 61-52

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-08010iMCL2#200301-200509

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-08010iMCL2#200301-200509

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-08020iMCL2#200301-200509

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-08020iMCL2#200301-200509

9008411033

main90084-11033

6 parts on this diagram · 1 diagram in section
