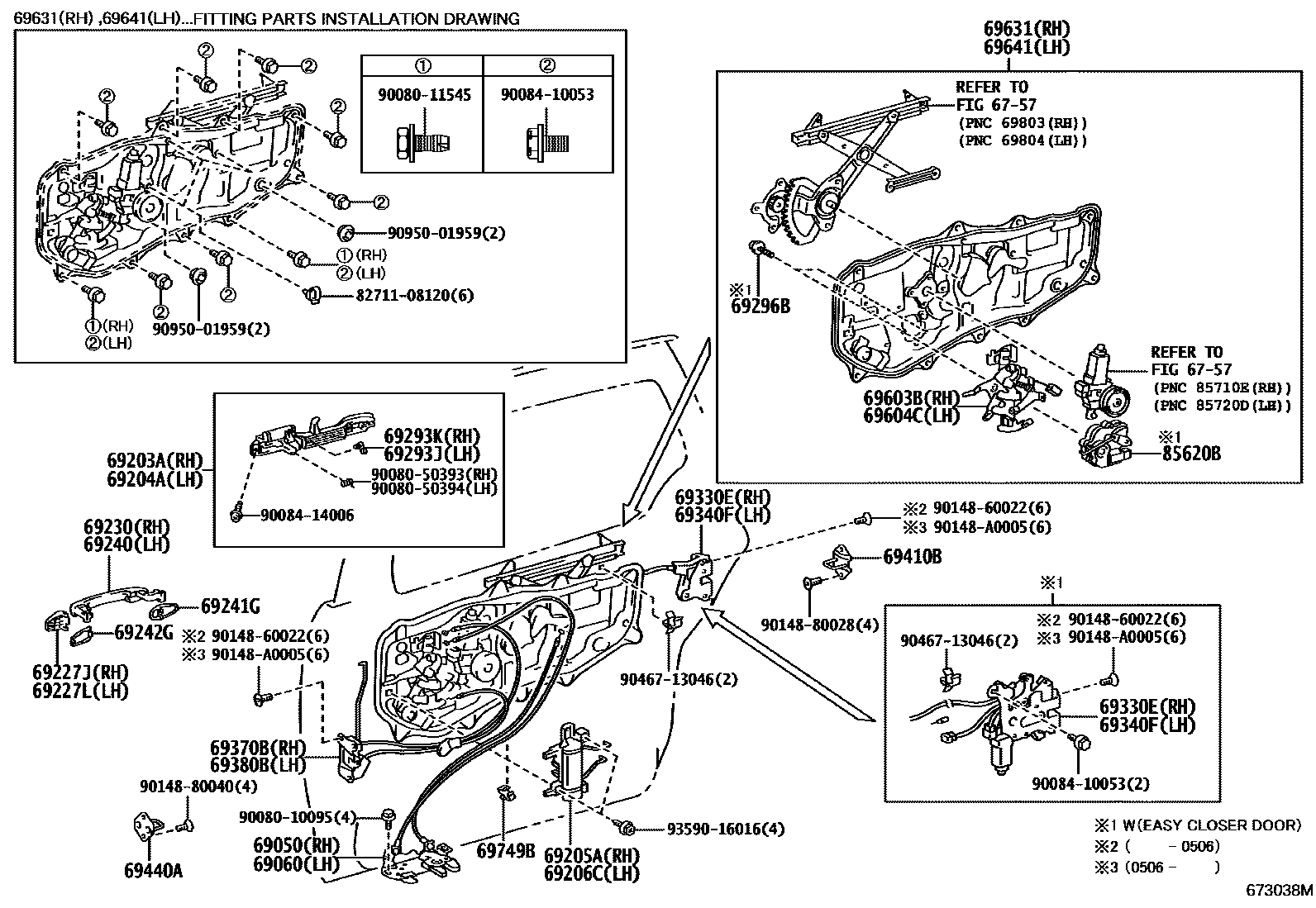

6757REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-57

69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH

main69050-08040i200612

69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH

main69060-08040i200612

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-08010i200509-200612

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-08010i200509-200612

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69207-08020-B1i200509-200612

STONE,TRIM1#

main69207-08020-E1i200509-200612

FAWN,TRIM4#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69208-08010-B1i200301-200509

STONE,TRIM1#

main69208-08010-E1i200301-200509

FAWN,TRIM4#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-08030-A0i200509-200612

DOOR OUTSIDE HANDLE-COLORED,WHITE,056; WHITE,056

main69227-08030-A1i200612-200807

DOOR OUTSIDE HANDLE-COLORED,WHITE PEARL CS.,071; WHITE PEARL CS.,071

main69227-08030-A2i200807-200912

DOOR OUTSIDE HANDLE-COLORED,SUPER WHITE 2,040; SUPER WHITE 2,040

main69227-08030-A3i200807-200912

DOOR OUTSIDE HANDLE-COLORED,WHITE PEARL CS.,070; WHITE PEARL CS.,070

main69227-08030-B0i200612-200912

DOOR OUTSIDE HANDLE-COLORED,SILVER M.M.,1D7; SILVER M.M.,1D7

main69227-08030-B1i200301-200509

DOOR OUTSIDE HANDLE-COLOR,GRAY M.M.,1E3; GRAY M.M.,1E3

main69227-08030-B2i200509-200612

DOOR OUTSIDE HANDLE-COLORED,GRAY ME.,1F9; GRAY ME.,1F9

main69227-08030-C0i200708-200912

BLACK,202; DOOR OUTSIDE HANDLE-COLORED,BLACK,202

main69227-08030-D0i200301-200509

DK. RED M.M.,3Q3; DOOR OUTSIDE HANDLE-COLOR,DK. RED M.M.,3Q3

main69227-08030-E0i200301-200509

BEIGE M. M.,4Q2; DOOR OUTSIDE HANDLE-COLOR,BEIGE M. M.,4Q2

main69227-08030-G0i200301-200509

DK. GREEN MC.,6S7; DOOR OUTSIDE HANDLE-COLOR,DK. GREEN MC.,6S7

main69227-08030-G1i200612-200912

DOOR OUTSIDE HANDLE-COLORED,LT.GREEN ME.,6U0; LT.GREEN ME.,6U0

main69227-08030-J0i200301-200509

DK.BLUE MC.,8Q0; DOOR OUTSIDE HANDLE-COLOR,DK.BLUE MC.,8Q0

main69227-08030-J1i200509-200612

BLUE ME.,8R5; DOOR OUTSIDE HANDLE-COLORED,BLUE ME.,8R5

main69227-08030-J2i200612-200708

DK.BLUE MC.,8S6; DOOR OUTSIDE HANDLE-COLORED,DK.BLUE MC.,8S6

main69227-08040i200301-200509

BLACK

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-08030-A0i200612-200807

DOOR OUTSIDE HANDLE-COLORED,WHITE,056; WHITE,056

main69227-08030-A1i200301-200509

DOOR OUTSIDE HANDLE-COLOR,WHITE PEARL CS.,071; WHITE PEARL CS.,071

main69227-08030-A2i200807-200912

DOOR OUTSIDE HANDLE-COLORED,SUPER WHITE 2,040; SUPER WHITE 2,040

main69227-08030-A3i200807-200912

DOOR OUTSIDE HANDLE-COLORED,WHITE PEARL CS.,070; WHITE PEARL CS.,070

main69227-08030-B0i200612-200912

DOOR OUTSIDE HANDLE-COLORED,SILVER M.M.,1D7; SILVER M.M.,1D7

main69227-08030-B1i200301-200509

DOOR OUTSIDE HANDLE-COLOR,GRAY M.M.,1E3; GRAY M.M.,1E3

main69227-08030-B2i200509-200612

DOOR OUTSIDE HANDLE-COLORED,GRAY ME.,1F9; GRAY ME.,1F9

main69227-08030-C0i200708-200912

BLACK,202; DOOR OUTSIDE HANDLE-COLORED,BLACK,202

main69227-08030-D0i200612-200912

DK. RED M.M.,3Q3; DOOR OUTSIDE HANDLE-COLORED,DK. RED M.M.,3Q3

main69227-08030-E0i200509-200612

BEIGE M. M.,4Q2; DOOR OUTSIDE HANDLE-COLORED,BEIGE M. M.,4Q2

main69227-08030-G0i200301-200509

DK. GREEN MC.,6S7; DOOR OUTSIDE HANDLE-COLOR,DK. GREEN MC.,6S7

main69227-08030-G1i200509-200612

DOOR OUTSIDE HANDLE-COLORED,LT.GREEN ME.,6U0; LT.GREEN ME.,6U0

main69227-08030-J0i200301-200509

DK.BLUE MC.,8Q0; DOOR OUTSIDE HANDLE-COLOR,DK.BLUE MC.,8Q0

main69227-08030-J1i200612-200912

BLUE ME.,8R5; DOOR OUTSIDE HANDLE-COLORED,BLUE ME.,8R5

main69227-08030-J2i200509-200612

DK.BLUE MC.,8S6; DOOR OUTSIDE HANDLE-COLORED,DK.BLUE MC.,8S6

main69227-08040i200301-200509

BLACK

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69213-08010-A0i200612-200807

DOOR OUTSIDE HANDLE-COLORED,WHITE,056; WHITE,056

main69213-08010-A1i200301-200509

DOOR OUTSIDE HANDLE-COLOR,WHITE PEARL CS.,071; WHITE PEARL CS.,071

main69213-08010-A2i200807-201001

DOOR OUTSIDE HANDLE-COLORED,SUPER WHITE 2,040; SUPER WHITE 2,040

main69213-08010-A3i200807-201001

DOOR OUTSIDE HANDLE-COLORED,WHITE PEARL CS.,070; WHITE PEARL CS.,070

main69213-08010-B0i200509-200612

DOOR OUTSIDE HANDLE-COLORED,SILVER M.M.,1D7; SILVER M.M.,1D7

main69213-08010-B1i200301-200509

DOOR OUTSIDE HANDLE-COLOR,GRAY M.M.,1E3; GRAY M.M.,1E3

main69213-08010-B2i200509-200612

DOOR OUTSIDE HANDLE-COLORED,GRAY ME.,1F9; GRAY ME.,1F9

main69213-08010-C0i200708-201001

BLACK,202; DOOR OUTSIDE HANDLE-COLORED,BLACK,202

main69213-08010-D0i200301-200509

DK. RED M.M.,3Q3; DOOR OUTSIDE HANDLE-COLOR,DK. RED M.M.,3Q3

main69213-08010-E0i200509-200612

BEIGE M. M.,4Q2; DOOR OUTSIDE HANDLE-COLORED,BEIGE M. M.,4Q2

main69213-08010-G0i200301-200509

DK. GREEN MC.,6S7; DOOR OUTSIDE HANDLE-COLOR,DK. GREEN MC.,6S7

main69213-08010-G1i200509-200612

DOOR OUTSIDE HANDLE-COLORED,LT.GREEN ME.,6U0; LT.GREEN ME.,6U0

main69213-08010-J0i200301-200509

DK.BLUE MC.,8Q0; DOOR OUTSIDE HANDLE-COLOR,DK.BLUE MC.,8Q0

main69213-08010-J1i200509-200612

BLUE ME.,8R5; DOOR OUTSIDE HANDLE-COLORED,BLUE ME.,8R5

main69213-08010-J2i200509-200612

DK.BLUE MC.,8S6; DOOR OUTSIDE HANDLE-COLORED,DK.BLUE MC.,8S6

main69213-08020i200301-200509

NO PAINT REQ.

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69213-08010-A0i200612-200807

DOOR OUTSIDE HANDLE-COLORED,WHITE,056; WHITE,056

main69213-08010-A1i200301-200509

DOOR OUTSIDE HANDLE-COLOR,WHITE PEARL CS.,071; WHITE PEARL CS.,071

main69213-08010-A2i200807-201001

DOOR OUTSIDE HANDLE-COLORED,SUPER WHITE 2,040; SUPER WHITE 2,040

main69213-08010-A3i200807-201001

DOOR OUTSIDE HANDLE-COLORED,WHITE PEARL CS.,070; WHITE PEARL CS.,070

main69213-08010-B0i200301-200509

DOOR OUTSIDE HANDLE-COLOR,SILVER M.M.,1D7; SILVER M.M.,1D7

main69213-08010-B1i200301-200509

DOOR OUTSIDE HANDLE-COLOR,GRAY M.M.,1E3; GRAY M.M.,1E3

main69213-08010-B2i200509-200612

DOOR OUTSIDE HANDLE-COLORED,GRAY ME.,1F9; GRAY ME.,1F9

main69213-08010-C0i200708-201001

BLACK,202; DOOR OUTSIDE HANDLE-COLORED,BLACK,202

main69213-08010-D0i200612-201001

DK. RED M.M.,3Q3; DOOR OUTSIDE HANDLE-COLORED,DK. RED M.M.,3Q3

main69213-08010-E0i200509-200612

BEIGE M. M.,4Q2; DOOR OUTSIDE HANDLE-COLORED,BEIGE M. M.,4Q2

main69213-08010-G0i200301-200509

DK. GREEN MC.,6S7; DOOR OUTSIDE HANDLE-COLOR,DK. GREEN MC.,6S7

main69213-08010-G1i200509-200612

DOOR OUTSIDE HANDLE-COLORED,LT.GREEN ME.,6U0; LT.GREEN ME.,6U0

main69213-08010-J0i200301-200509

DK.BLUE MC.,8Q0; DOOR OUTSIDE HANDLE-COLOR,DK.BLUE MC.,8Q0

main69213-08010-J1i200509-200612

BLUE ME.,8R5; DOOR OUTSIDE HANDLE-COLORED,BLUE ME.,8R5

main69213-08010-J2i200612-200708

DK.BLUE MC.,8S6; DOOR OUTSIDE HANDLE-COLORED,DK.BLUE MC.,8S6

main69213-08020i200509-200612

NO PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-AE010×2i200301-200509

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-0E010×2i200612

main69242-AE010×2i200301-200402

69293JSNAP, REAR DOOR OUTSIDE HANDLE, LH

main69293-12030i200509-200612

69293KSNAP, REAR DOOR OUTSIDE HANDLE, RH

main69293-12040i200612

69296BSCREW, DOOR INSIDE HANDLE

main69296-08030×4i200612-200912

AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY; AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR

69330ELOCK ASSY, SLIDE DOOR, RH

main69200-08010i200612-200911

AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY; AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR

main69200-08011i200912-201001

AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY; AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR

main69330-08030i200612-200911

main69330-08031i200912-201001

69340FLOCK ASSY, SLIDE DOOR, LH

main69300-08010i200612-200911

AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY; AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR

main69300-08011i200912-201001

AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY; AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR

main69340-08030i200612-200911

main69340-08031i200912-201001

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-08020i200301-200509

main69370-08021i200512-200612

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-08020i200509-200511

main69380-08021i200512-200612

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-08030×2i200612-200706

main69410-08031×2i200707

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-08020×2i200301-200306

main69440-08021×2i200612

69603BCONTROL SUB-ASSY, SLIDE DOOR LOCK REMOTE, RH

main69603-08050i200612-200912

main69603-08060i200612-200912

AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY; AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR

69604CCONTROL SUB-ASSY, SLIDE DOOR LOCK REMOTE, LH

main69604-08030i200301-200509

main69604-08040i200612-200912

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR

69631CONTROL, SLIDE DOOR ATTACHMENT, RH

main69631-08010i200509-200612

main69631-08011i200912-201001

main69631-08020i200612-200911

AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY; AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR

main69631-08021i200912-201001

AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY; AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR

69641CONTROL, SLIDE DOOR ATTACHMENT, LH

main69641-08010i200509-200612

main69641-08011i200612-200911

main69641-08012i200912-201001

main69641-08020i200612-200911

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR

main69641-08021i200912-201001

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR

69749BCLAMP, REAR DOOR LOCK LINK

main69749-08010×2i200301-200509

85620BMOTOR ASSY, SLIDE DOOR LOCK RELEASE

main85620-08060supersedes 85620-08070i200612-200705

AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY; AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR,RH; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR,RH; RH

main85620-08061i200706-200912

AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY,RH; AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR,RH; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR,RH; RH

main85620-08070i200612-200705

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR,LH; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR,LH; LH

main85620-08071i200706-200912

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR,LH; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR,LH; LH

8271108120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-08120

9008010095

main90080-10095

9008011545

main90080-11545

9008050393

main90080-50393
