5752HOLE PLUG

6152SIDE WINDOW

→ Go to FIG 61-52

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-08070i200301-200403

main67003-08071i200404-200509

main67003-08073i200509-200612

main67003-08074i200902

main67003-08080supersedes 67003-08093i200301-200403

SEAT COVER MATERIAL-LEATHER; SUN SHADE-W/SLIDE DOOR&QUARTER

main67003-08081supersedes 67003-08093i200404-200509

SEAT COVER MATERIAL-LEATHER; SUN SHADE-W/SLIDE DOOR&QUARTER

main67003-08083i200509-200612

SUN SHADE-WITH/SLIDE DOOR&QUARTER

main67003-08084i200902

SUN SHADE-WITH/SLIDE DOOR&QUARTER

main67003-08090supersedes 67003-08093i200301-200403

EASY CLOSER DOOR-RH SLIDE DOOR; EASY CLOSER DOOR-RH SLIDE&BACK DOOR; EASY CLOSER DOOR-RH&LH SLIDE DOOR; EASY CLOSER DOOR-RH&LH SLIDE&BACK DOOR

main67003-08091i200404-200509

EASY CLOSER DOOR-RH SLIDE DOOR; EASY CLOSER DOOR-RH SLIDE&BACK DOOR; EASY CLOSER DOOR-RH&LH SLIDE DOOR; EASY CLOSER DOOR-RH&LH SLIDE&BACK DOOR

main67003-08093i200509-200612

EASY CLOSER DOOR-RH SLIDE DOOR; EASY CLOSER DOOR-RH&LH SLIDE DOOR

main67003-08094i200902

AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY; AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR

main67003-08100supersedes 67003-08093i200301-200403

EASY CLOSER DOOR-RH SLIDE DOOR&SEAT COVER MATERIAL-LEATHER; EASY CLOSER DOOR-RH SLIDE&BACK DOOR&SEAT COVER MATERIAL-LEATHER; EASY CLOSER DOOR-RH SLIDE&BACK DOOR&SUN SHADE-W/SLIDE DOOR&QUARTER; EASY CLOSER DOOR-RH&LH SLIDE DOOR&SEAT COVER MATERIAL-LEATHER; EASY CLOSER DOOR-RH&LH SLIDE DOOR&SUN SHADE-W/SLIDE DOOR&QUARTER; EASY CLOSER DOOR-RH&LH SLIDE&BACK DOOR&SUN SHADE-W/SLIDE DOOR&QUARTER

main67003-08101i200404-200509

EASY CLOSER DOOR-RH SLIDE DOOR&SEAT COVER MATERIAL-LEATHER; EASY CLOSER DOOR-RH SLIDE&BACK DOOR&SEAT COVER MATERIAL-LEATHER; EASY CLOSER DOOR-RH SLIDE&BACK DOOR&SUN SHADE-W/SLIDE DOOR&QUARTER; EASY CLOSER DOOR-RH&LH SLIDE DOOR&SEAT COVER MATERIAL-LEATHER; EASY CLOSER DOOR-RH&LH SLIDE DOOR&SUN SHADE-W/SLIDE DOOR&QUARTER; EASY CLOSER DOOR-RH&LH SLIDE&BACK DOOR&SUN SHADE-W/SLIDE DOOR&QUARTER

main67003-08103supersedes 67003-08094i200612-200901

AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&SUN SHADE-WITH/SLIDE DOOR&QUARTER; AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER; SUN SHADE-WITH/SLIDE DOOR&QUARTER

main67003-08104supersedes 67003-08094i200902

AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&SUN SHADE-WITH/SLIDE DOOR&QUARTER; AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER; SUN SHADE-WITH/SLIDE DOOR&QUARTER

67003CCUSHION, REAR DOOR PANEL

main90084-54012×2i200907

main90541-09103×2i200509-200612

main90541-09117×2i200902-200906

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-08070i200301-200403

main67004-08071i200404-200509

main67004-08073i200509-200612

main67004-08074i200612-200901

main67004-08075i200902

main67004-08080i200301-200403

SEAT COVER MATERIAL-LEATHER; SUN SHADE-W/SLIDE DOOR&QUARTER

main67004-08081i200404-200509

SEAT COVER MATERIAL-LEATHER; SUN SHADE-W/SLIDE DOOR&QUARTER

main67004-08083i200509-200612

SUN SHADE-WITH/SLIDE DOOR&QUARTER

main67004-08084i200612-200901

SUN SHADE-WITH/SLIDE DOOR&QUARTER

main67004-08085i200902

SUN SHADE-WITH/SLIDE DOOR&QUARTER

main67004-08090i200301-200403

EASY CLOSER DOOR-RH&LH SLIDE DOOR; EASY CLOSER DOOR-RH&LH SLIDE&BACK DOOR

main67004-08091i200404-200509

EASY CLOSER DOOR-RH&LH SLIDE DOOR; EASY CLOSER DOOR-RH&LH SLIDE&BACK DOOR

main67004-08093i200612-200901

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR

main67004-08094i200902

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR

main67004-08100i200301-200403

EASY CLOSER DOOR-RH&LH SLIDE DOOR&SEAT COVER MATERIAL-LEATHER; EASY CLOSER DOOR-RH&LH SLIDE DOOR&SUN SHADE-W/SLIDE DOOR&QUARTER; EASY CLOSER DOOR-RH&LH SLIDE&BACK DOOR&SUN SHADE-W/SLIDE DOOR&QUARTER

main67004-08101i200404-200509

EASY CLOSER DOOR-RH&LH SLIDE DOOR&SEAT COVER MATERIAL-LEATHER; EASY CLOSER DOOR-RH&LH SLIDE DOOR&SUN SHADE-W/SLIDE DOOR&QUARTER; EASY CLOSER DOOR-RH&LH SLIDE&BACK DOOR&SUN SHADE-W/SLIDE DOOR&QUARTER

main67004-08103i200612-200901

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER; SUN SHADE-WITH/SLIDE DOOR&QUARTER

main67004-08104supersedes 67004-08094i200902

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER; AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER; SUN SHADE-WITH/SLIDE DOOR&QUARTER

67043FRAME SUB-ASSY, REAR DOOR WINDOW, RH

main67043-08010i200509-200612

67044FRAME SUB-ASSY, REAR DOOR WINDOW, LH

main67044-08010i200301-200509

67113PANEL, REAR DOOR, OUTER RH

main67113-08020i200301-200509

67114PANEL, REAR DOOR, OUTER LH

main67114-08020i200301-200509

67259BREFLECTOR, SLIDE DOOR

main67259-AE010×2i200301-200509

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-08010i200301-200509

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-08010i200301-200509

67487BSEAL, REAR DOOR DIVISION BAR, RH

main67487-08010i200301-200509

67488BSEAL, REAR DOOR DIVISION BAR, LH

main67487-08010i200509-200612

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-08020i200408-200509

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-08020i200408-200509

67871WEATHERSTRIP, REAR DOOR, RH

main67871-08020-B0i200301-200502

STONE,TRIM1#

main67871-08020-E0i200301-200502

FAWN,TRIM4#

main67871-08021-B0i200503-200509

STONE,TRIM1#

main67871-08021-E0i200509-200612

FAWN,TRIM4#

67872WEATHERSTRIP, REAR DOOR, LH

main67872-08020-B0i200301-200502

STONE,TRIM1#

main67872-08020-E0i200301-200502

FAWN,TRIM4#

main67872-08021-B0i200509-200612

STONE,TRIM1#

main67872-08021-E0i200509-200612

FAWN,TRIM4#

67927ACUSHION, REAR DOOR STIFFENER, RH

main67927-08010i200509-200612

67928ACUSHION, REAR DOOR STIFFENER, LH

main67928-08010i200301-200509

68142RUN, REAR DOOR GLASS

main68142-08010i200301-200509

68144DRUN, REAR DOOR GLASS, LOWER RH

main68144-08010i200301-200509

68145ERUN, REAR DOOR GLASS, LOWER REAR

main68145-08020i200509-200612

68152CRUN, REAR DOOR GLASS, LH

main68152-08010i200301-200509

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-08010i200509-200612

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-08010i200301-200509

7552MOULDING

→ Go to FIG 75-52

75925CTAPE, BLACK OUT, NO.3 RH

main75931-AE010i200301-200509

75926CTAPE, BLACK OUT, NO.3 LH

main75932-AE010i200509-200612

9008016084

main90080-16084

9008054039

main90080-54039

9008054040

main90080-54040

90119A0070

main90119-A0070

9015940271

main90159-40271

9017906171

main90179-06171

9018904022

main90189-04022

9018906197

main90189-06197

90189A0001

main90189-A0001

9046705075

main90467-05075

90467A0013

main90467-A0013

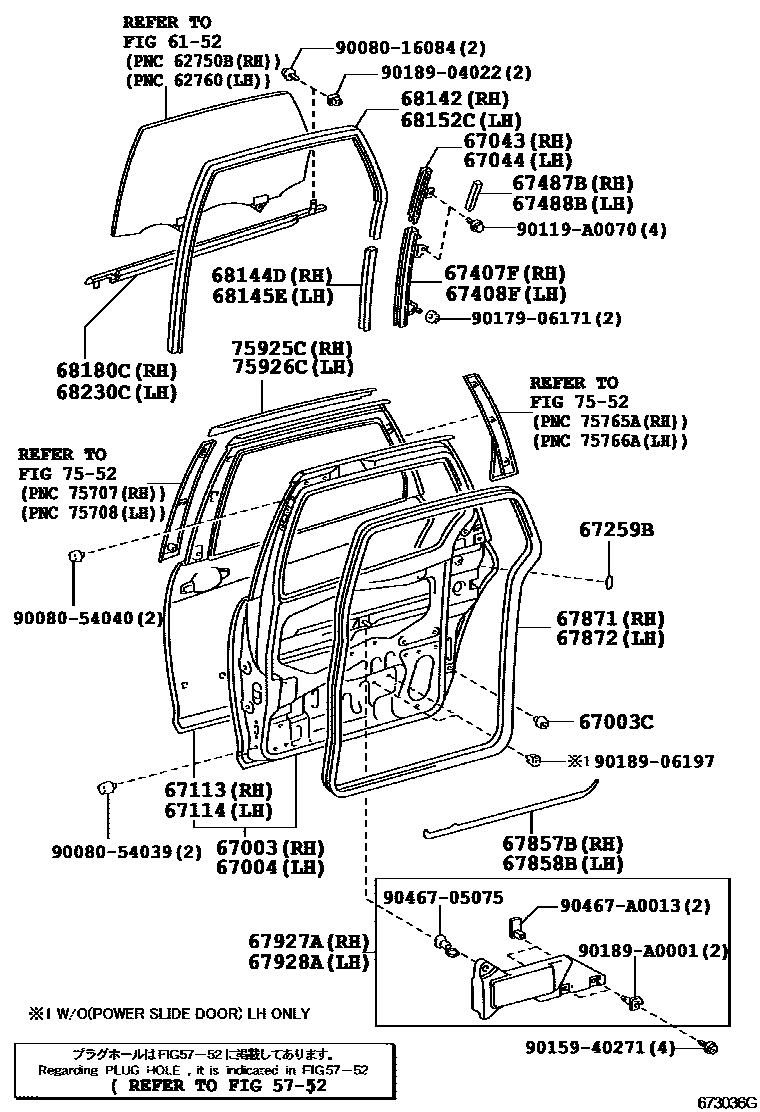

REAR DOOR PANEL & GLASS
