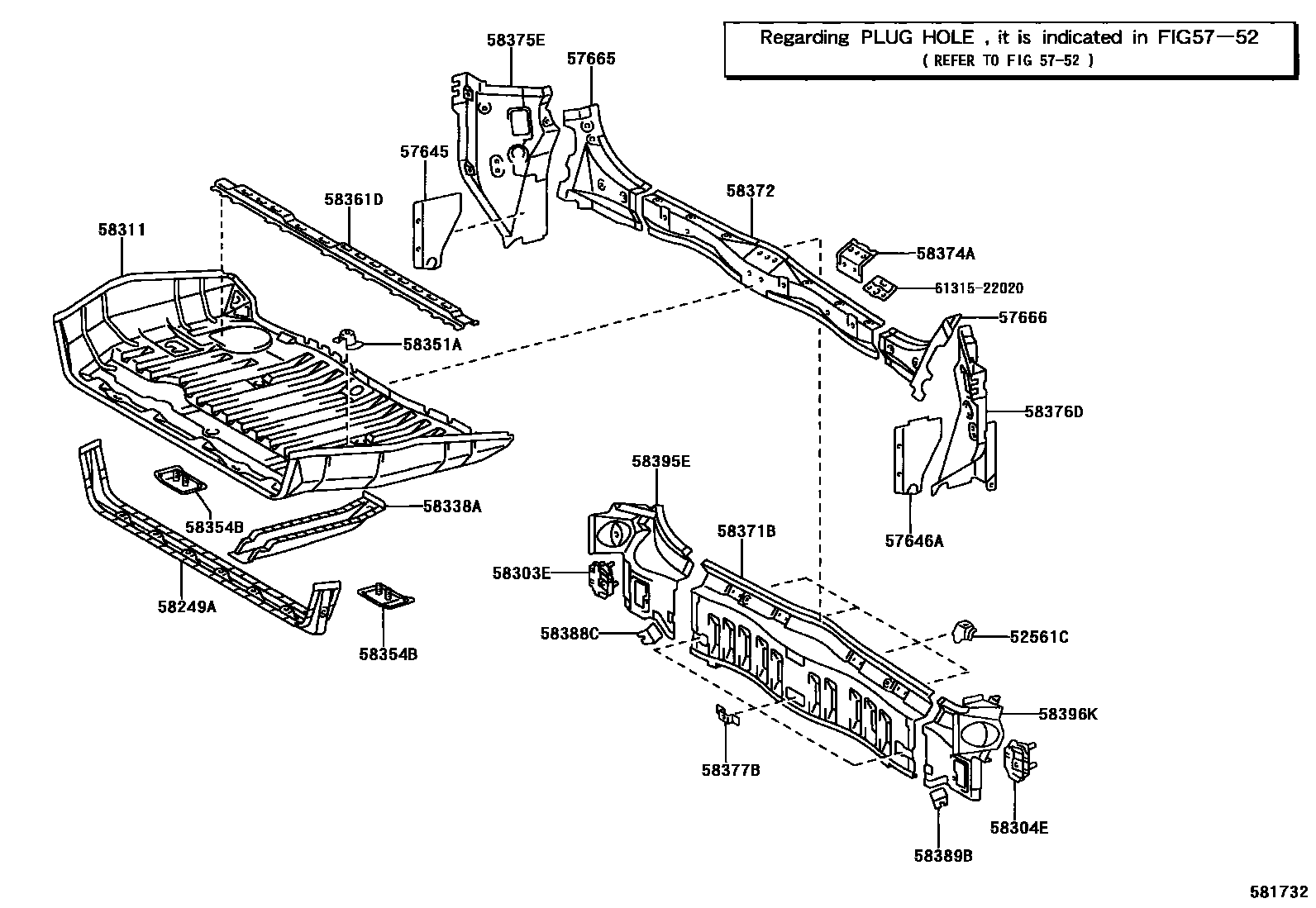

REAR FLOOR PANEL & REAR FLOOR MEMBER
52561CRETAINER, REAR BUMPER, UPPER CENTER
5752HOLE PLUG
57645REINFORCEMENT, REAR SIDE MEMBER, RH
57646AREINFORCEMENT, REAR SIDE MEMBER, LH
57665PANEL, LOWER BACK SIDE, RH
57666PANEL, LOWER BACK SIDE, LH
58249AREINFORCEMENT, REAR SEAT MOUNTING
58303EREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
58304EREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
58351ABRACKET, SPARE WHEEL CARRIER
58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4
58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH
58371BPANEL, BODY LOWER BACK, OUTER
58372PANEL, BODY LOWER BACK, INNER
58374AREINFORCEMENT, BACK DOOR LOCK STRIKER
58375EREINFORCEMENT, BODY LOWER BACK PANEL
58376DREINFORCEMENT, BODY LOWER BACK, LH
58377BRETAINER, LOWER BACK TRIM
58388CPLATE, BODY LOWER BACK REINFORCEMENT, RH
58389BPLATE, BODY LOWER BACK REINFORCEMENT, LH
58395EGUSSET, BACK DOOR OPENING, LOWER RH
58396KGUSSET, BACK DOOR OPENING, LOWER LH
6131522020RETAINER, DOOR LOCK STRIKER PLATE
main61315-22020
25 parts on this diagram · 5 diagrams in section
