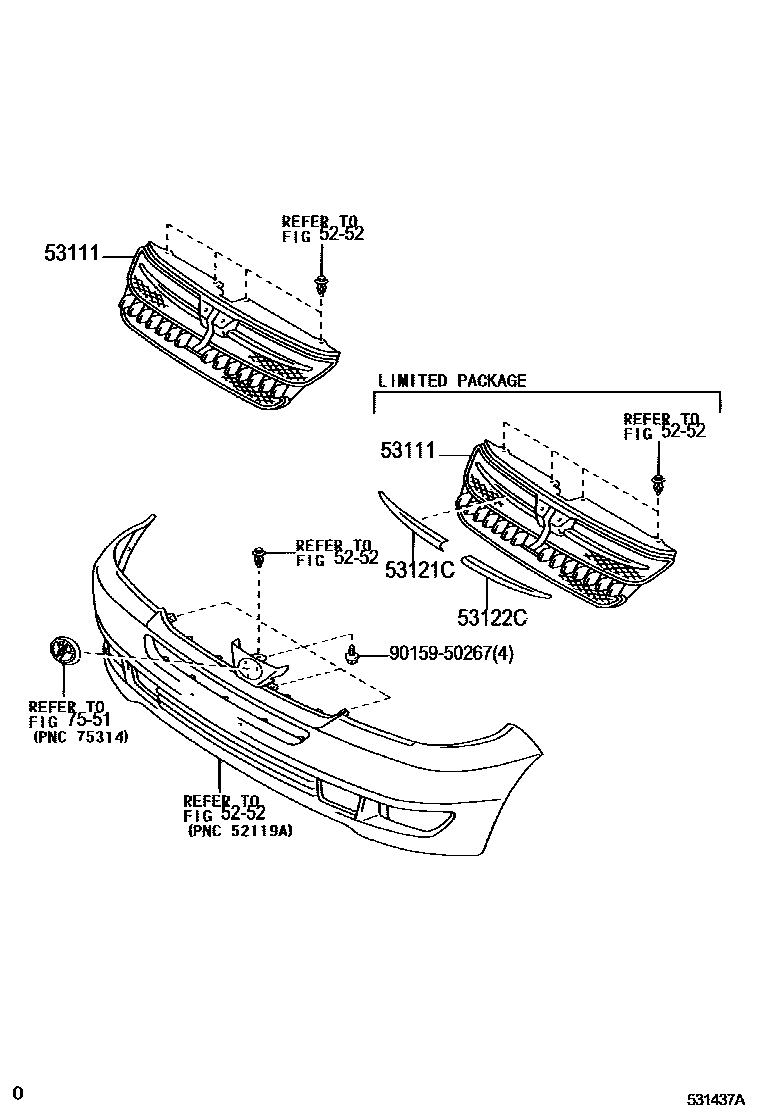

Toyota SIENNA — RADIATOR GRILLE

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

53111GRILLE, RADIATOR

53111-AE010

53111-AE020

53111-AE030

53121CPLATE, RADIATOR GRILLE FINISH, RH

53122CPLATE, RADIATOR GRILLE FINISH, LH

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

9015950267

90159-50267

6 parts on this diagram · 2 diagrams in section

RADIATOR GRILLE for Toyota SIENNA

This section contains 10 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota SIENNA. Key components include: FRONT BUMPER & BUMPER STAY, GRILLE SUB-ASSY, RADIATOR, GRILLE, RADIATOR, GRILLE, RADIATOR, UPPER, PLATE, RADIATOR GRILLE FINISH, RH.
