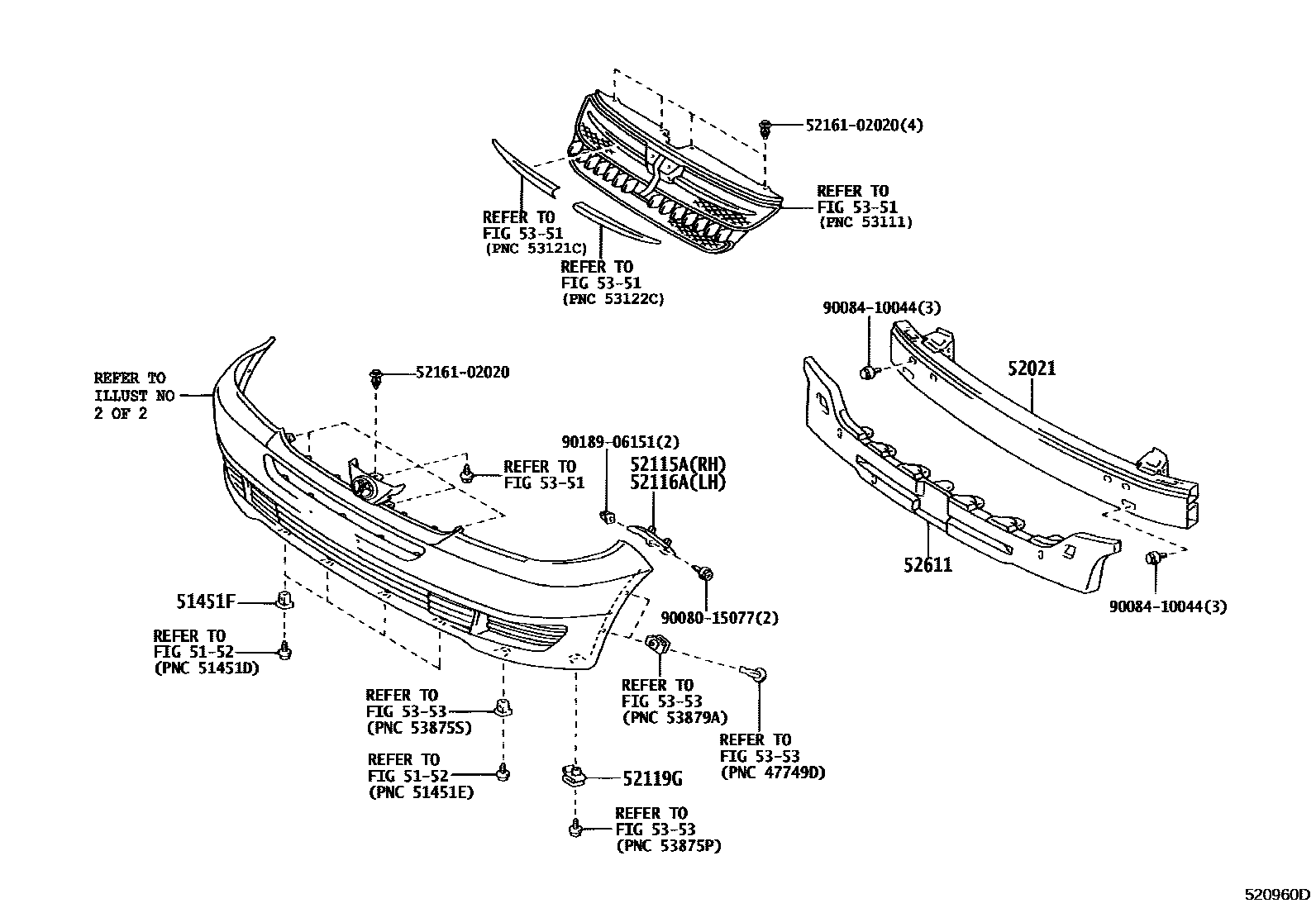

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

51451FGROMMET, NO.1

main90189-06193×4iGSL2#200612-201001

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-AE010iGSL2#200612-201001

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-AE010iGSL2#200612

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-AE010iGSL2#200612

52119GCLIP, NO.1

main90467-05114×2iMCL2#200301-200509

52611ABSORBER, FRONT BUMPER ENERGY

main52611-AE010iMCL2#200301-200509

main52611-AE020iGSL2#200612

5351RADIATOR GRILLE

→ Go to FIG 53-51

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

5216102020CUSHION, REAR BUMPER GUARD, NO.1

main52161-02020

9008015077

main90080-15077

9008410044

main90084-10044

9018906151

main90189-06151

13 parts on this diagram · 4 diagrams in section
