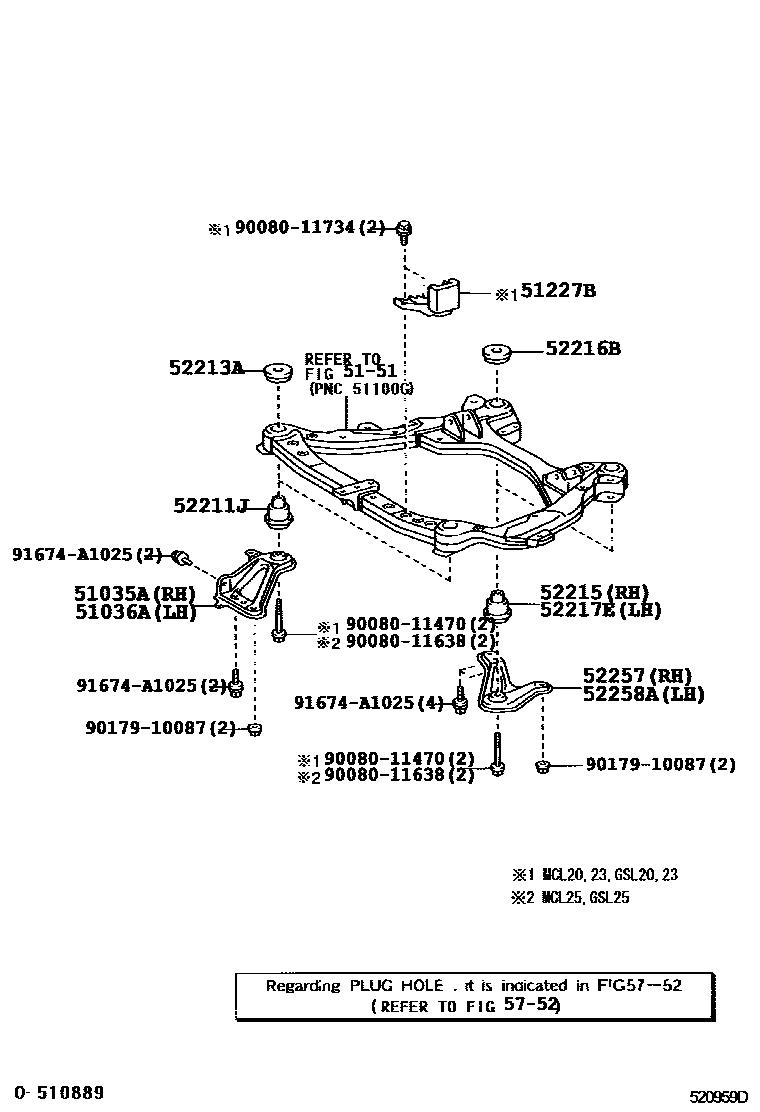

CAB MOUNTING & BODY MOUNTING

51035APLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-08010iMCL20,23200301-200509

main51035-08020iMCL25200509-200612

51036APLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-08010iMCL20,23200509-200612

main51036-08020iMCL25200301-200509

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-08010iMCL20,23200301-200509

5151FRAME

→ Go to FIG 51-51

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06030×2iMCL20,23200301-200509

main52211-08020×2iMCL25200509-200612

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06030×2iGSL20,23200612

main52213-58010×2iMCL25200509-200612

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06030iMCL20,23200301-200509

main52215-08020iMCL25200301-200509

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06030×2iMCL20,23200301-200509

main52216-08020×2iMCL25200301-200509

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06010iMCL20,23200301-200509

main52217-08010iMCL25200509-200612

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-08010iMCL20,23200301-200509

main51023-08020iMCL25200509-200612

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-08010iGSL20,23200612

main51024-08020iMCL25200509-200612

5752HOLE PLUG

→ Go to FIG 57-52

9008011470

main90080-11470

9008011638

main90080-11638

9008011734

main90080-11734

9017910087

main90179-10087

91674A1025

main91674-A1025

17 parts on this diagram · 1 diagram in section
