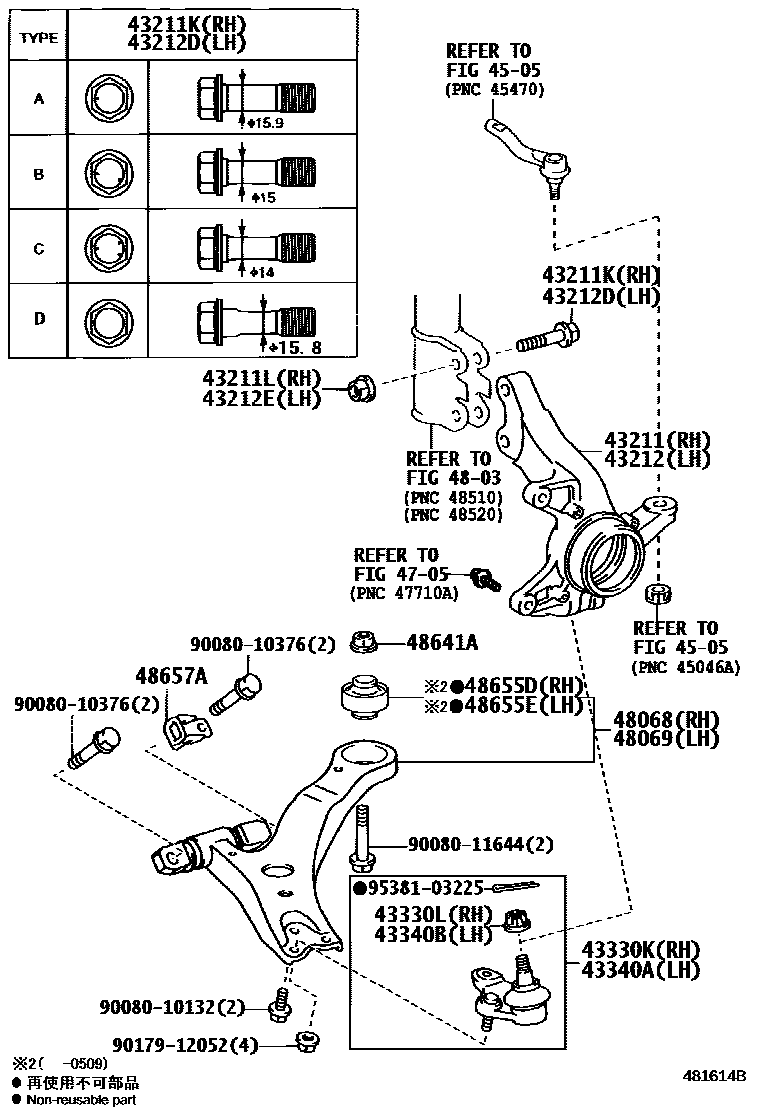

FRONT AXLE ARM & STEERING KNUCKLE
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=15.8,TYPE D:REFER ILLUST.
OD=15.9,TYPE A:REFER ILLUST.
OD=15,TYPE B:REFER ILLUST.
OD=14,TYPE C:REFER ILLUST.
43211LNUT (FOR STEERING KNUCKLE RH)
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=15.8,TYPE D:REFER ILLUST.
OD=15.9,TYPE A:REFER ILLUST.
OD=15,TYPE B:REFER ILLUST.
OD=14,TYPE C:REFER ILLUST.
43212ENUT (FOR STEERING KNUCKLE LH)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
4505FRONT STEERING GEAR & LINK
4705FRONT DISC BRAKE CALIPER & DUST COVER
4803FRONT SPRING & SHOCK ABSORBER
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
48657ASTOPPER, FRONT LOWER ARM BUSH
(J)
9008010132
main90080-10132
9008010376
main90080-10376
9008011644
main90080-11644
9017912052
main90179-12052
9538103225
main95381-03225
24 parts on this diagram · 1 diagram in section
