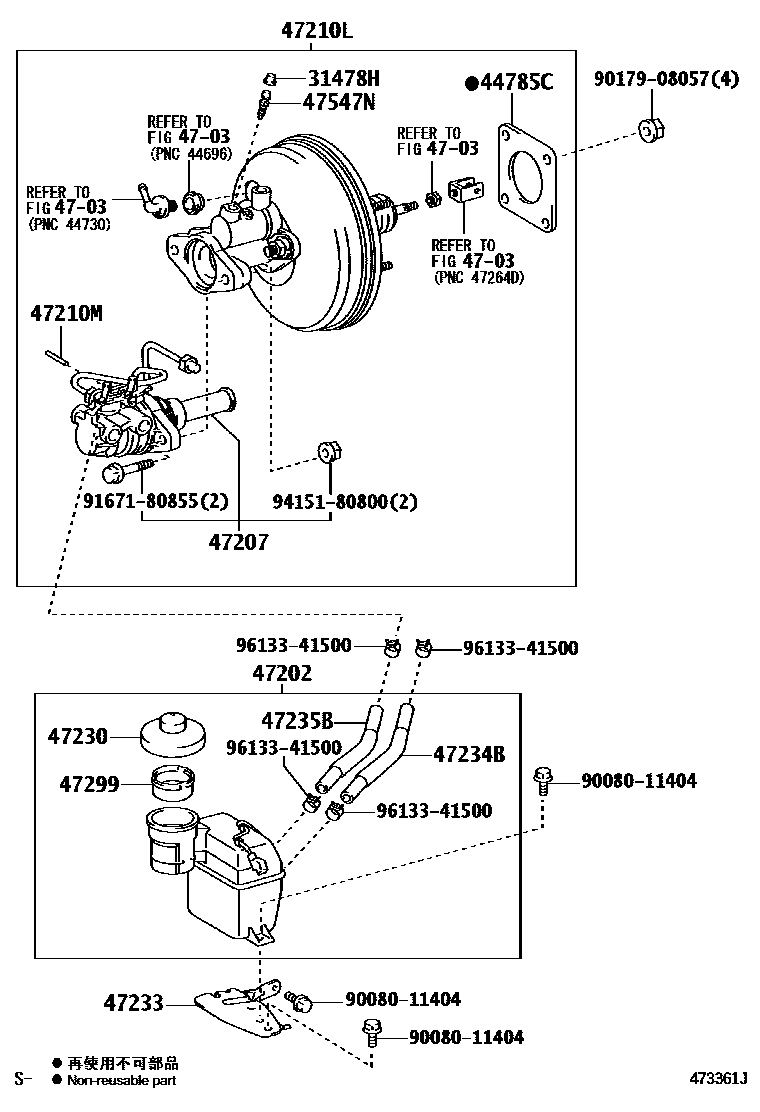

BRAKE MASTER CYLINDER

31478HCAP, BLEEDER PLUG(FOR BRAKE MASTER CYLINDER)

main31478-30010iGSL2#200612

44785CGASKET, BRAKE BOOSTER

main44785-08020iGSL2#200612

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-08030iMCL2#200509-200612

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-08010iMCL20; MCL25200406-200509

VSC-WITH

main47207-08011supersedes 47207-08020iGSL25200612

main47207-08020iMCL20,23200509-200612

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47200-08070iMCL20; MCL25200301-200509

VSC-WITH

main47200-08071supersedes 47200-08081iGSL25200612

main47200-08080iMCL20,23200301-200509

main47200-08081iGSL23200612

47210MPIN, RING(FOR BRAKE MASTER CYLINDER)

main90029-15803iMCL2#200509-200612

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iMCL2#200310-200509

main47230-12040iMCL2#200301-200310

47233BRACKET, RESERVOIR

main47233-08010iGSL2#200612

47234BTUBE, RESERVOIR, NO.1

main47234-08020iMCL2#200301-200509

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-08010iMCL2#200301-200509

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMCL2#200301-200509

47547NPLUG, BLEEDER(FOR BRAKE MASTER CLYINDER)

main47547-20010iMCL2#200301-200509

9008011404

main90080-11404

9017908057

main90179-08057

9167180855

main91671-80855

9415180800

main94151-80800

9613341500

main96133-41500

18 parts on this diagram · 1 diagram in section
