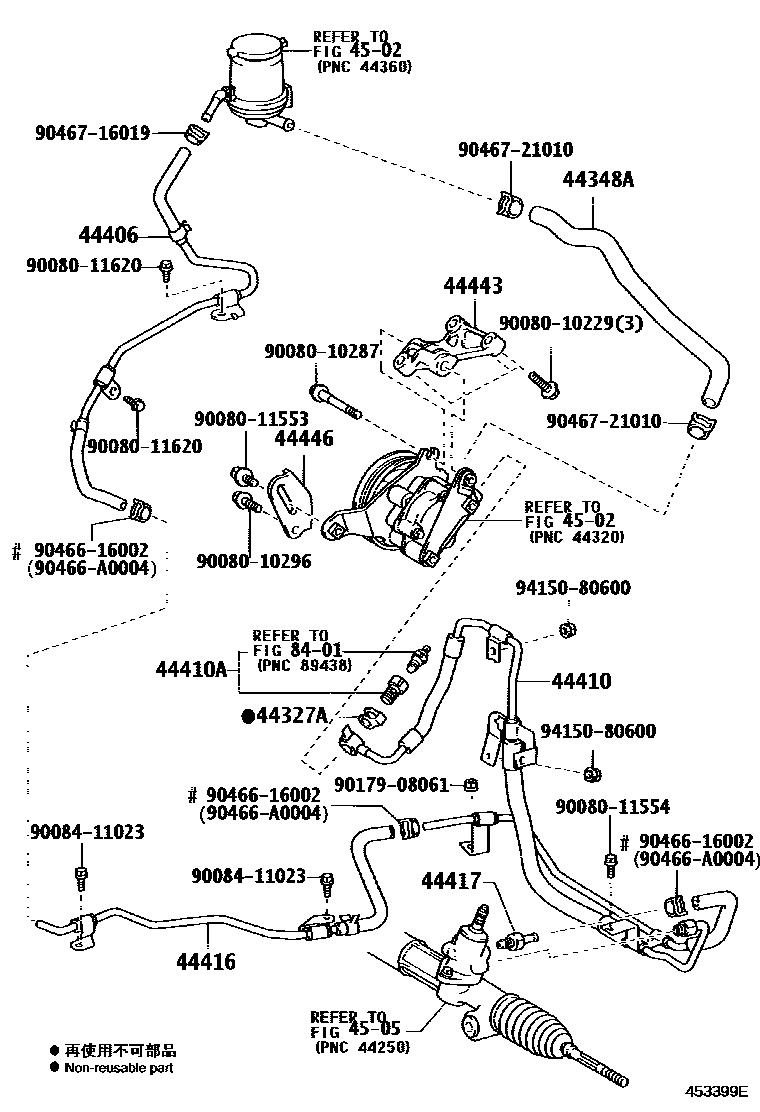

POWER STEERING TUBE

0001 1 0002 1 0003 1TOWING PACKAGE 0004 1TOWING PACKAGE 0005 1 0006 1 0007 1 0008 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iMCL2#200301-200509

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-08020iMCL2#200301-200509

main44348-08030iGSL20,23200612

main44348-08040iGSL25200612

44406TUBE SUB-ASSY, RETURN

main44406-08020iMCL2#200301-200412

main44406-08021iMCL2#200412-200509

main44406-08031iMCL2#200509-200612

main44406-08041iGSL2#200612

main44406-08030iMCL20,25200301-200411

TOWING PACKAGE-FOR 3500LBS

44410TUBE ASSY, PRESSURE FEED

main44410-08040iMCL20,23200301-200403

main44410-08041iMCL20,23200403-200412

main44410-08042iMCL20,23200412-200509

main44410-08050iMCL25200301-200403

main44410-08051iMCL25200403-200412

main44410-08052iMCL25200509-200612

main44410-08081iGSL20,23200612-200703

main44410-08082iGSL20,23200704

main44410-08091iGSL25200612-200703

main44410-08092iGSL25200704

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-08010iMCL2#200301-200509

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-08020iMCL2#200301-200403

main44416-08021iMCL2#200403-200412

main44416-08022iMCL2#200509-200612

main44416-08041iGSL2#200612

44417TUBE, RETURN, NO.2

main44417-08010iMCL2#200301-200509

main44417-08021iGSL2#200612

44443BRACKET, PUMP

main44443-33041iMCL2#200301-200509

44446STRUT, ADJUSTING

main44446-28030iMCL2#200301-200509

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008010229

main90080-10229

9008010287

main90080-10287

9008010296

main90080-10296

9008011553

main90080-11553

9008011554

main90080-11554

9008011620

main90080-11620

9008411023

main90084-11023

9017908061

main90179-08061

9046616002

main90466-16002

90466A0004

main90466-A0004

9046716019

main90467-16019

9046721010

main90467-21010

9415080600

main94150-80600

25 parts on this diagram · 8 diagrams in section
