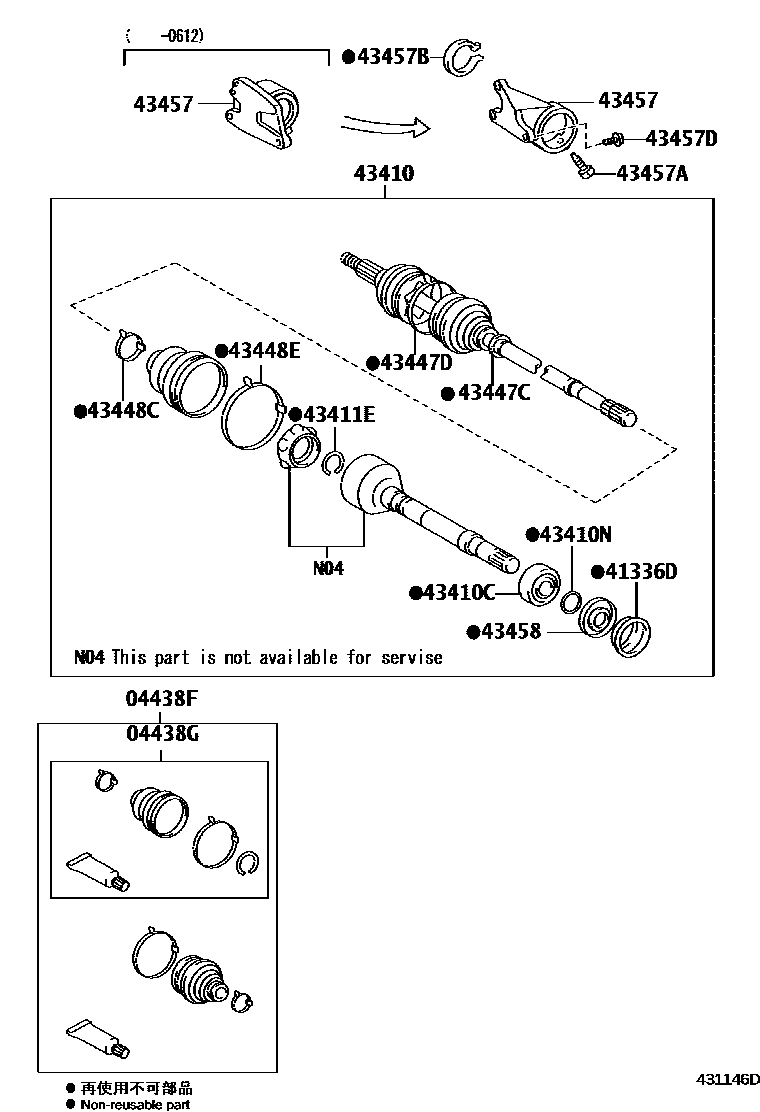

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-08060iMCL20,23200509-200612

main04438-08070iMCL25200301-200509

main04438-0E040iGSL25200612

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-08010iMCL20,23200301-200509

main04438-08030iMCL25200301-200509

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iMCL20,23200301-200509

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-08030iMCL20,23200301-200509

main43410-08041iMCL25200301-200509

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36133iMCL20,23200509-200612

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-08060iMCL25200301-200509

main90080-52013iMCL20,23200301-200509

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-08040iMCL20,23200509-200612

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iMCL25200301-200509

main42345-08090iGSL20,23200612

sub42345-08080

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06080iGSL25200612

main42345-08100iGSL20,23200612

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07020iMCL25200301-200509

main42345-08070iMCL20,23200301-200509

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07010iMCL25200301-200509

main42345-08060iMCL20,23200301-200509

43457BRACKET, DRIVE SHAFT BEARING

main43457-07010iGSL20,23200612

main43457-08010iMCL20,23200509-200612

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iMCL20,23200301-200509

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iMCL20,23200301-200509

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90080-10087×3iMCL20,23200301-200509

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iMCL20,23200301-200509

main43458-08010iMCL25200301-200509

16 parts on this diagram · 4 diagrams in section
