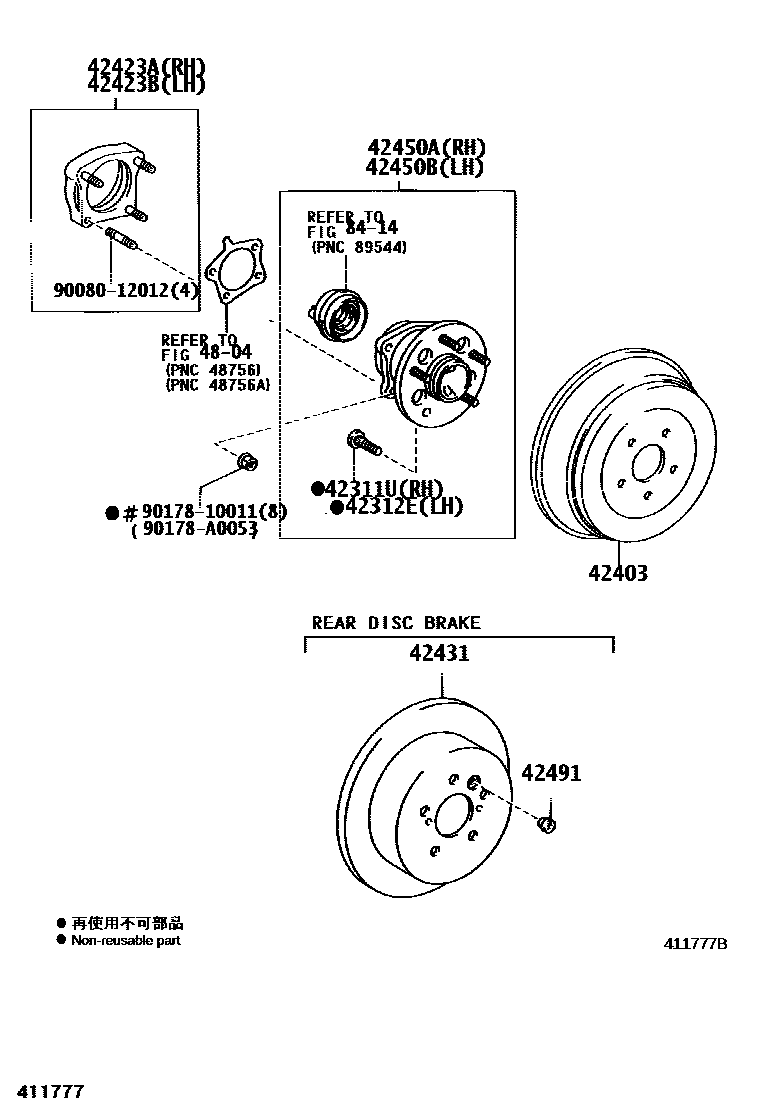

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iMCL2#200301-200509

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iMCL2#200301-200509

42403DRUM SUB-ASSY, REAR BRAKE

main42431-08020×2iMCL20,23200301-200302

main42431-08021×2iMCL20,23200302-200509

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42423-08010iMCL20,23200301-200509

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42423-08010iMCL20,23200301-200509

42431DISC, REAR

main42431-08030×2iMCL20; MCL25200301-200509

REAR WHEEL BRAKE-DISK 15/12S

main42431-08040×2iMCL20; MCL25200509-200612

REAR WHEEL BRAKE-DISK 15INCH 12S

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-08020iMCL20,23200301-200509

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-08020iMCL20,23200301-200509

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iMCL20; MCL25200301-200509

REAR WHEEL BRAKE-DISK 15/12S

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8414ABS & VSC

→ Go to FIG 84-14

9008012012

main90080-12012

9017810011

main90178-10011

90178A0053

main90178-A0053

14 parts on this diagram · 3 diagrams in section
