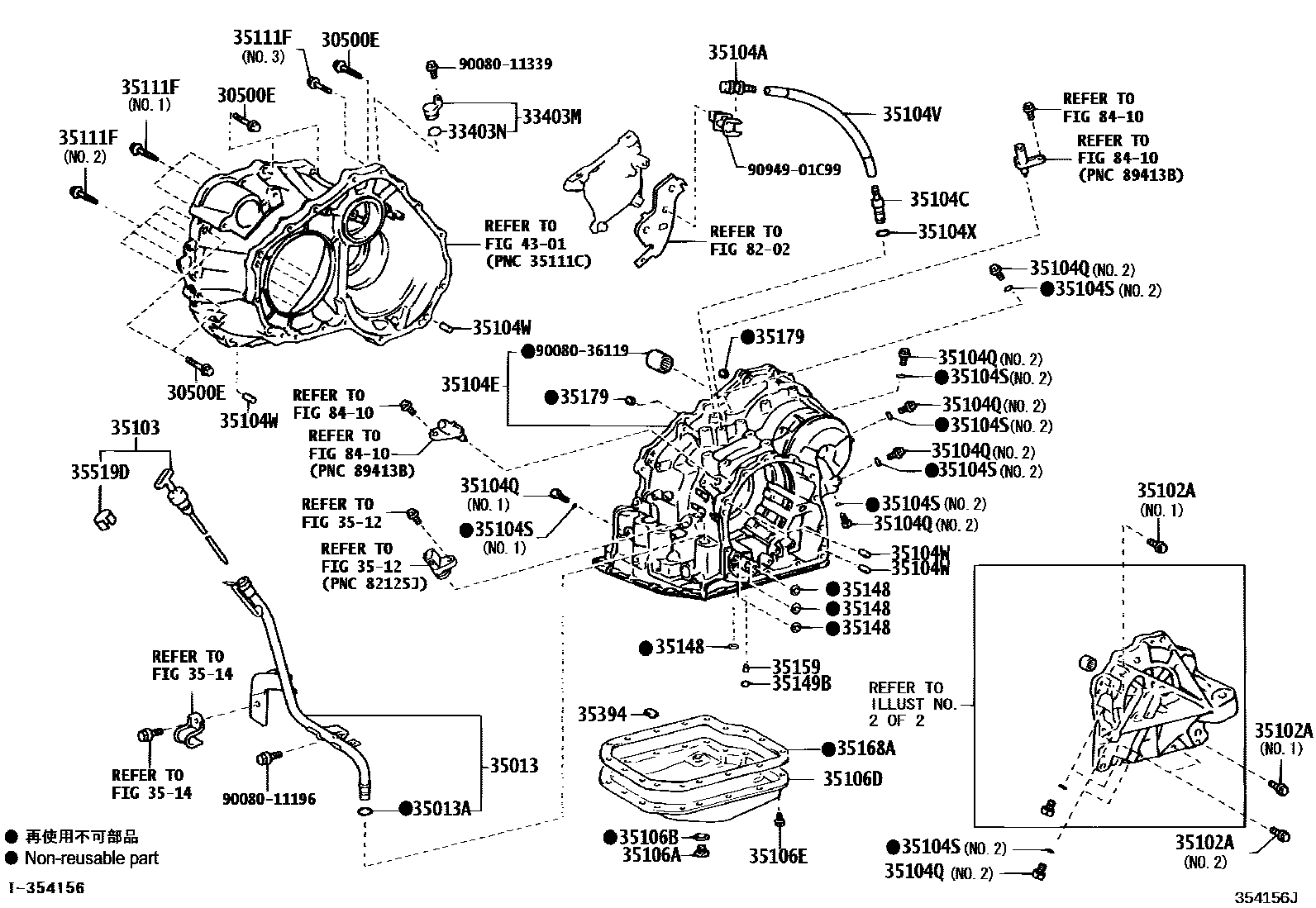

TRANSMISSION CASE & OIL PAN (ATM)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX55-30
*10-1.25PX41-30
*12-1.25PX55-30
*12-1.25PX65-30
*12-1.25PX50-30
*12-1.25PX50-30
33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013ARING, O(FOR TRANSMISSION OIL FILLER TUBE)
35102COVER SUB-ASSY, TRANSAXLE REAR
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX30-27.5,NO.1; *8-1.25PX30-27.5,NO.2
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35104APLUG, AUTOMATIC TRANSMISSION CASE
35104CPLUG, BREATHER, NO.2 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
NO.1,(L)
NO.1,(J); NO.2
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
NO.1,(L)
NO.2
NO.1,(J)
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
35104XRING, O (FOR BREATHER PLUG)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
(L)
(J)
35106EBOLT (FOR TRANSAXLE OIL PAN)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*8-1.25PX42-30,NO.3
*8-1.25PX50-30,NO.1; *8-1.25PX50-30,NO.2
*8-1.25PX50-30,NO.1,(J); *8-1.25PX50-30,NO.2,(J)
*6-1.00PX50-25,NO.4
3512VALVE BODY & OIL STRAINER (ATM)
3514OIL COOLER & TUBE (ATM)
35148GASKET, GOVERNOR APPLY, NO.1
35149BGASKET, TRANSAXLE CASE 2ND BRAKE
35159GASKET, BRAKE DRUM
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35179GASKET, OVERDRIVE BRAKE
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
(L)
(J)
35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION
4301FRONT AXLE HOUSING & DIFFERENTIAL
8202WIRING & CLAMP
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9008011196
main90080-11196
9008011339
main90080-11339
9008036119
main90080-36119
9094901C99
main90949-01C99
37 parts on this diagram · 3 diagrams in section
