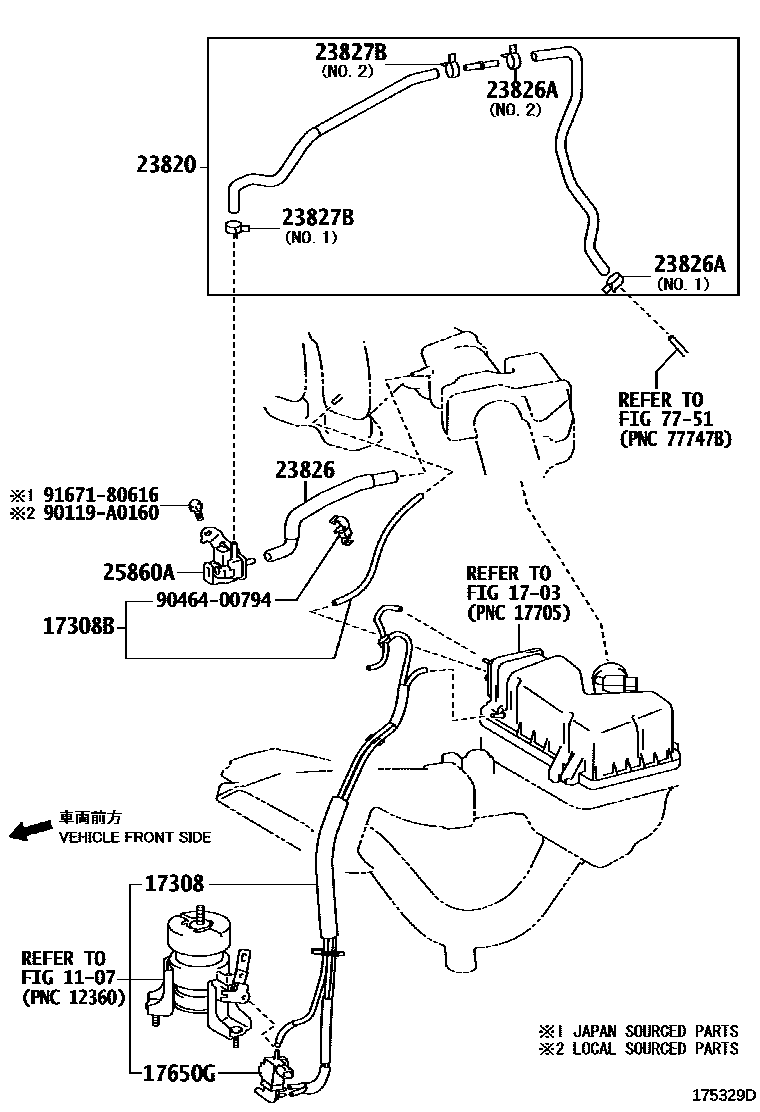

VACUUM PIPING

0001 1 0002 1

1107MOUNTING

→ Go to FIG 11-07

1703AIR CLEANER

→ Go to FIG 17-03

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-0A050i3MZFE..MCL2#200509

main17308-0P030i2GRFE..GSL2#200612

17308BHOSE SUB-ASSY, VACUUM

main17308-0A060i3MZFE..MCL2#200301-200509

main17308-31020i2GRFE..GSL2#200612

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12204i2GRFE..GSL2#200612

main90910-12259i3MZFE..MCL2#200509

MARK 90910-12259

main90910-12272i3MZFE..MCL2#200310-200509

MARK 90910-12272

23820HOSE ASSY, FUEL VAPOR FEED

main23820-0P100i2GRFE..GSL2#200612-200912

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0P100i2GRFE..GSL2#200612

main23826-AA010i3MZFE..MCL2#200301-200509

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90080-46347i2GRFE..GSL2#200612

NO.2

main90466-11003i2GRFE..GSL2#200612

NO.1

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90080-46347i2GRFE..GSL2#200612

NO.2

main90466-11003i2GRFE..GSL2#200612

NO.1

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-62010i3MZFE..MCL2#200301-200509

25860AVALVE, VACUUM SWITCHING, NO.1

main25860-31070i2GRFE..GSL2#200612

7751FUEL TANK & TUBE

→ Go to FIG 77-51

90119A0160

main90119-A0160

9046400794

main90464-00794

9167180616

main91671-80616

15 parts on this diagram · 2 diagrams in section
