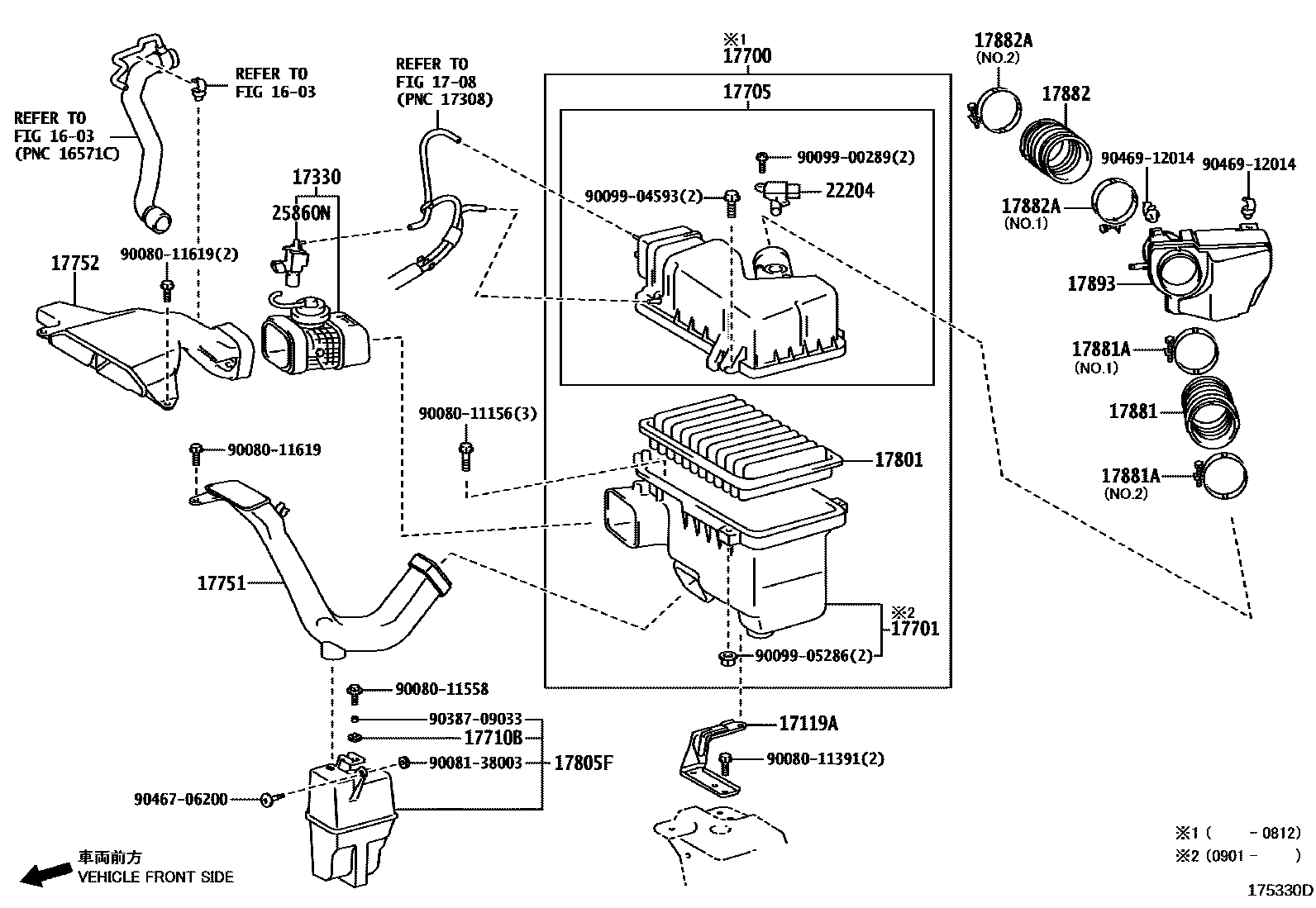

AIR CLEANER

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1708VACUUM PIPING

→ Go to FIG 17-08

17119ABRACKET, AIR CLEANER

main17119-AA020i3MZFE..MCL2#200509

17330VALVE ASSY, INTAKE AIR CONTROL, NO.3

main17330-0A010i3MZFE..MCL2#200301-200509

17700CLEANER ASSY, AIR

main17700-0A210i3MZFE..MCL2#200301-200406

main17700-0A230i3MZFE..MCL2#200406-200509

main17700-0P070i2GRFE..GSL2#200612-200701

main17700-0P071i2GRFE..GSL2#200702-200812

17701CASE SUB-ASSY, AIR CLEANER

main17701-0A100i2GRFE..GSL2#200901

17705CAP SUB-ASSY, AIR CLEANER

main17705-0A170i3MZFE..MCL2#200301-200406

main17705-0A190i3MZFE..MCL2#200406-200509

main17705-0P060i2GRFE..GSL2#200612-200702

main17705-0P061i2GRFE..GSL2#200702-200812

main17705-0P062i2GRFE..GSL2#200901-201003

17710BGROMMET

main90480-17013i3MZFE..MCL2#200301-200509

17751INLET, AIR CLEANER, NO.1

main17751-0P070i2GRFE..GSL2#200612

main17751-AA020i3MZFE..MCL2#200509

17752INLET, AIR CLEANER, NO.2

main17752-0P050i2GRFE..GSL2#200612

main17752-AA020i3MZFE..MCL2#200509

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0H010i3MZFE..MCL2#200301-200509

main17801-20040i2GRFE..GSL2#200612

(J)

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-0A051i3MZFE..MCL2#200509

17881HOSE, AIR CLEANER, NO.1

main17881-0P060i2GRFE..GSL2#200612

main17881-AA020i3MZFE..MCL2#200509

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-88008i3MZFE..MCL2#200509

NO.1

main90460-93002i2GRFE..GSL2#200612

NO.2

main96111-10880i3MZFE..MCL2#200509

NO.2

main96111-10900i2GRFE..GSL2#200612

NO.1

17882HOSE, AIR CLEANER, NO.2

main17882-0P050i2GRFE..GSL2#200612

main17882-AA020i3MZFE..MCL2#200509

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-88008i3MZFE..MCL2#200301-200509

NO.1

main90460-93002i2GRFE..GSL2#200612

NO.2

main96111-10880i3MZFE..MCL2#200509

NO.2

main96111-10900i2GRFE..GSL2#200612

NO.1

17893RESONATOR, INTAKE AIR

main17893-0P050i2GRFE..GSL2#200612

main17893-AA010i3MZFE..MCL2#200509

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0D030i3MZFE..MCL2#200301-200509

main22204-0H010i2GRFE..GSL2#200901

(L)

main22204-31010i2GRFE..GSL2#200612-200702

main22204-31020i2GRFE..GSL2#200702-200901

25860NVALVE ASSY, VACUUM SWITCHING

main25860-0A010i3MZFE..MCL2#200301-200509

9008011156

main90080-11156

9008011391

main90080-11391

9008011558

main90080-11558

9008011619

main90080-11619

9008138003

main90081-38003

9009900289

main90099-00289

9009904593

main90099-04593

9009905286

main90099-05286

9038709033

main90387-09033

9046706200

main90467-06200

9046912014

main90469-12014

30 parts on this diagram · 2 diagrams in section
