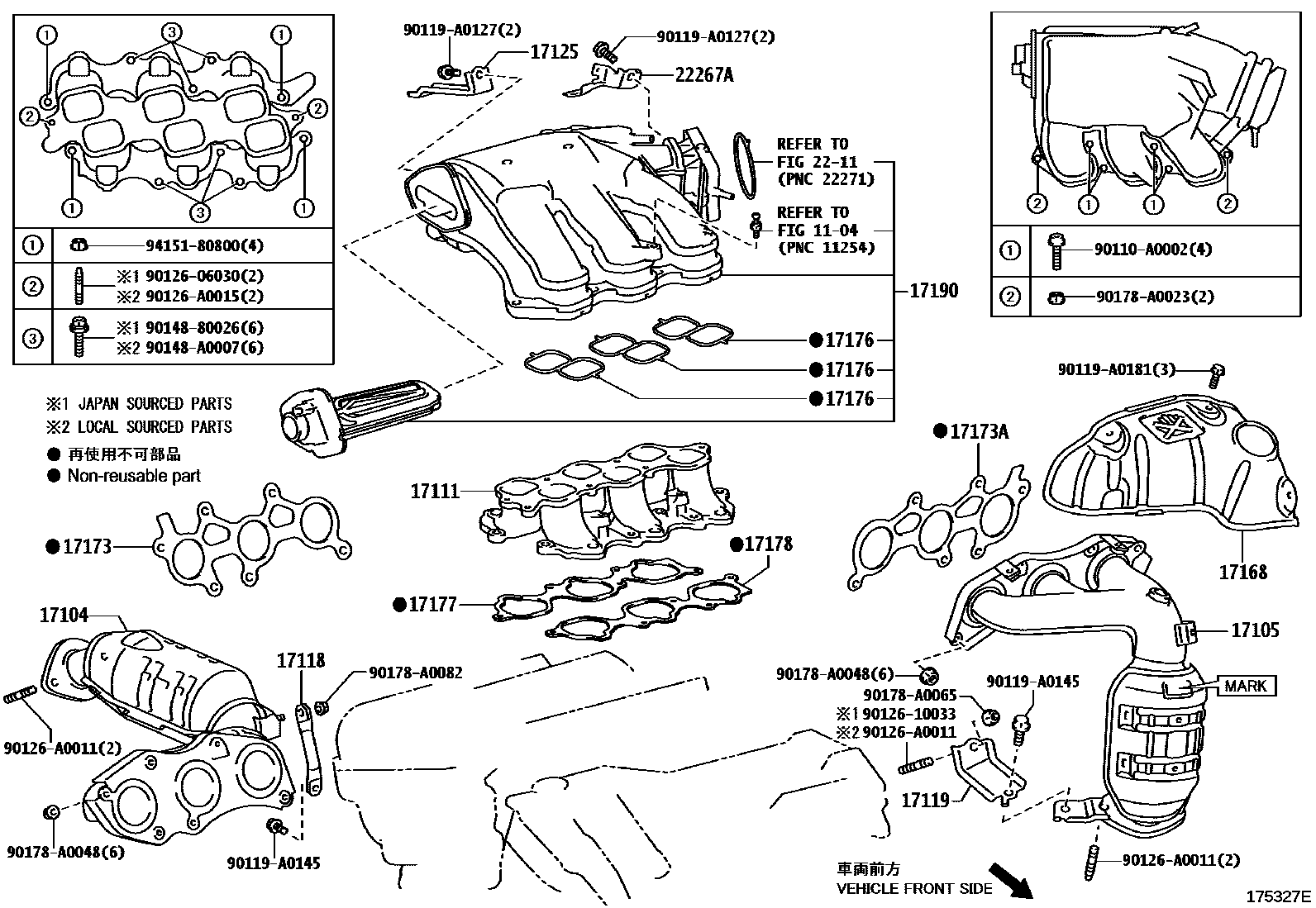

MANIFOLD

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17140-0P080i2GRFE..GSL25200612

(L)

main17140-0P090i2GRFE..GSL20,23200612

main17140-20030i3MZFE..MCL20,23200301-200509

main17140-31200i2GRFE..GSL25200701

*114=TOYOTA/R31200/Y,(J)

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17150-0P090i2GRFE..GSL2#200612-200701

main17150-0P200i2GRFE..GSL2#200906

MARK L0P200

main17150-31270i2GRFE..GSL2#200701-200905

*114=TOYOTA/L31270/Y,MARK L31270

main17150-31650i2GRFE..GSL2#200906

MARK L31650

17111MANIFOLD, INTAKE

main17101-0A050i3MZFE..MCL2#200406-200509

main17111-0P030i2GRFE..GSL2#200612

*185

main17111-31141i2GRFE..GSL2#200612-200901

*132

17118STAY, MANIFOLD

main17118-20060i3MZFE..MCL20,23200301-200311

main17118-20070i3MZFE..MCL20,23200408-200509

main17118-31070i2GRFE..GSL2#200612

17119STAY, MANIFOLD, NO.2

main17119-0P030i2GRFE..GSL2#200612

17125STAY, SURGE TANK, NO.1

main17125-0P020i2GRFE..GSL2#200612

main17125-20020i3MZFE..MCL2#200301-200509

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-20070i3MZFE..MCL2#200301-200509

main17168-31020i2GRFE..GSL2#200612-200703

main17168-31021i2GRFE..GSL2#200704-200905

main17168-31050i2GRFE..GSL2#200906

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0P020i2GRFE..GSL2#200612

main17173-20030i3MZFE..MCL2#200301-200509

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-0P020i2GRFE..GSL2#200612

main17173-20030i3MZFE..MCL2#200301-200509

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-0P020×3i2GRFE..GSL2#200612

main17176-20020i3MZFE..MCL2#200301-200509

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0P020i2GRFE..GSL2#200612

(L)

main17177-20020i3MZFE..MCL2#200509

main17177-31040i2GRFE..GSL2#200612-200901

(J)

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-0P020i2GRFE..GSL2#200612

(L)

main17178-20020i3MZFE..MCL2#200509

main17178-31030i2GRFE..GSL2#200612-200901

(J)

17190TANK ASSY, INTAKE AIR SURGE

main17190-0P041i2GRFE..GSL2#200612-200709

main17190-0P060i2GRFE..GSL2#200710

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22267ABRACKET, THROTTLE BODY

main22267-0P030i2GRFE..GSL2#200612

90110A0002

main90110-A0002

90119A0127

main90119-A0127

90119A0145

main90119-A0145

90119A0181

main90119-A0181

9012606030

main90126-06030

9012610033

main90126-10033

90126A0011

main90126-A0011

90126A0015

main90126-A0015

9014880026

main90148-80026

90148A0007

main90148-A0007

90178A0023

main90178-A0023

90178A0048

main90178-A0048

90178A0065

main90178-A0065

90178A0082

main90178-A0082

9415180800

main94151-80800

31 parts on this diagram · 2 diagrams in section
