ENGINE OVERHAUL GASKET KIT

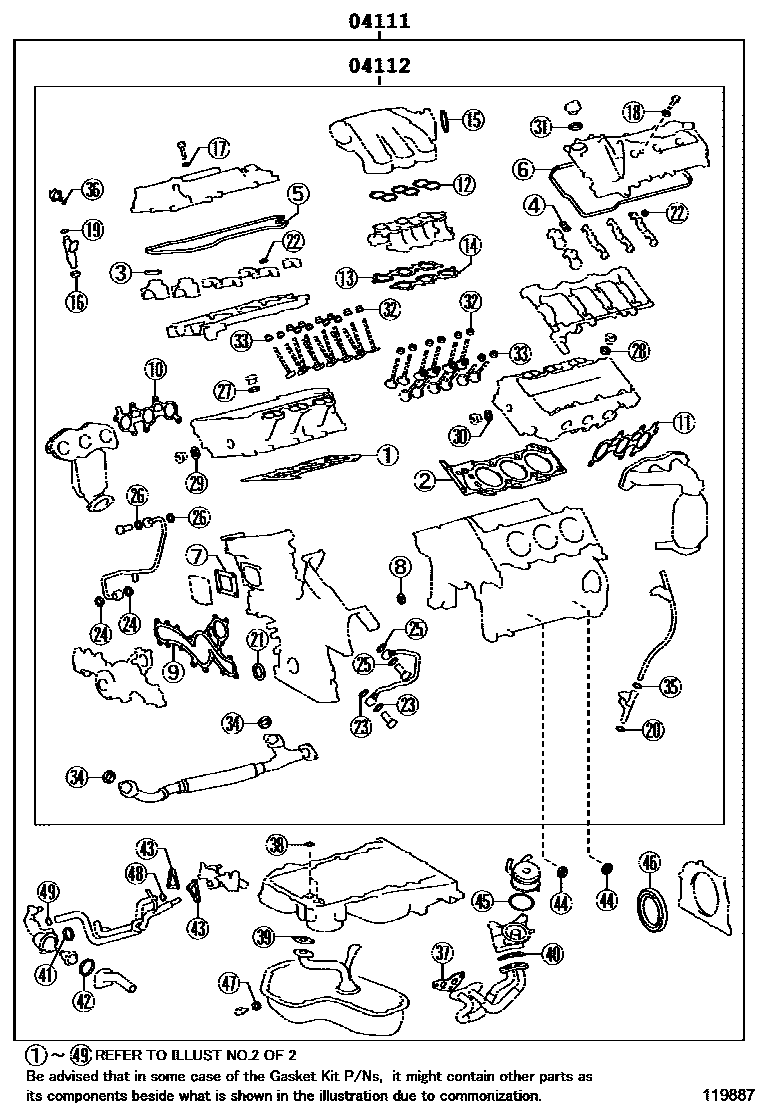

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0A060i200301-200509

main04111-0A121i200509-200607

main04111-0A122i200607

main04111-0P062i200903-200911

MEXICO SPEC; MEXICO SPEC&TOWING PACKAGE-FOR 3500LBS; TOWING PACKAGE-FOR 3500LBS

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0A060i200301-200509

main04112-0A131i200509-200607

main04112-0A132i200607

main04112-0P050i200612-200804

main04112-0P051i200804-200903

main04112-0P052i200903-200911

main04112-0P053i200911

2 parts on this diagram · 10 diagrams in section
