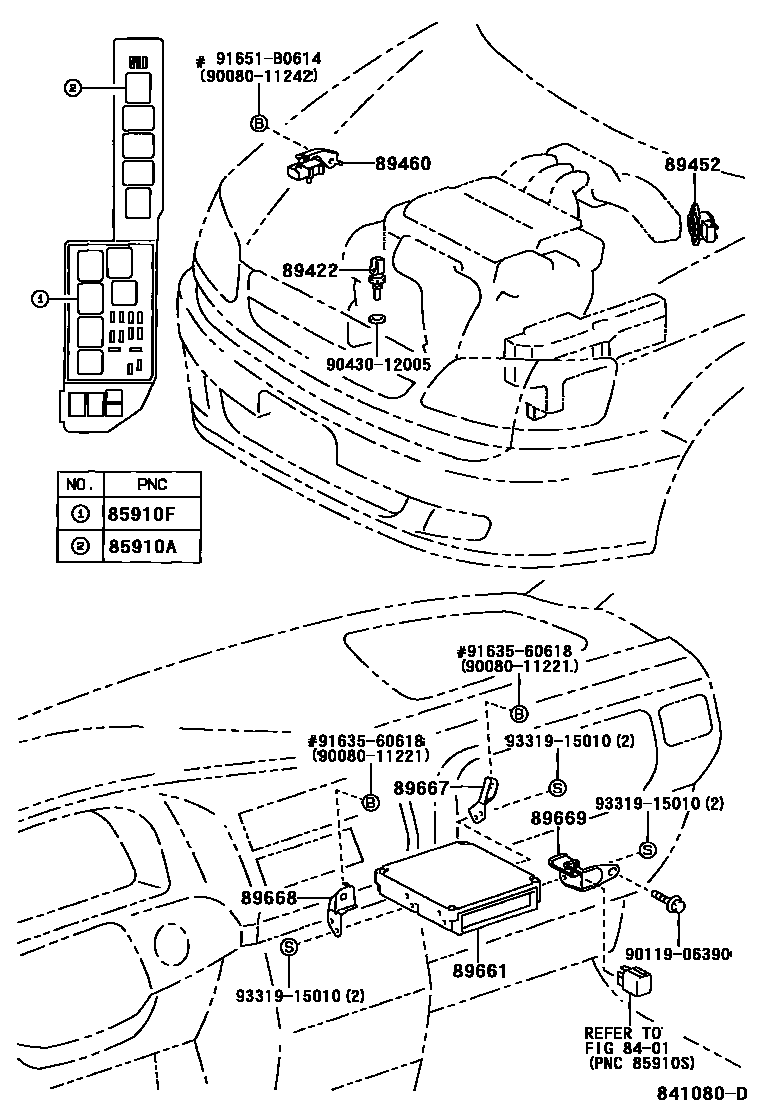

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90084-98031iMCL10199708

NIPPONDENSO USA

main90987-02012iMCL10199708

NIPPONDENSO JAPAN

85910FRELAY, COMPUTER (FOR EFI)

main90084-98031iMCL10199708

NIPPONDENSO USA

main90987-02012iMCL10199708

NIPPONDENSO JAPAN

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iMCL10199708

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-06020iMCL10199708

89460SENSOR ASSY, VAPOR PRESSURE

main89460-08020iMCL10199708-200008

main89461-0C010iMCL10200008

89661COMPUTER, ENGINE CONTROL

main89661-08010iMCL10199708-199802

main89661-08011iMCL10199802-199808

main89661-08020iMCL10..USA199808-199906

CALIFORNIA SPEC

main89661-08030iMCL10199808-199906

main89661-08040iMCL10..USA199906-200008

CALIFORNIA SPEC

main89661-08050iMCL10199906-200008

main89661-08060iMCL10200008-200010

main89661-08061iMCL10200010-200107

main89661-08070iMCL10200107-200207

main89661-08080iMCL10200207

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-08010iMCL10199708-200008

main89667-08020iMCL10200008

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-08010iMCL10199708

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-08010iMCL10199708-199808

main89669-08020iMCL10199808-200008

main89669-08030iMCL10200008

9008011221

main90080-11221

9008011242

main90080-11242

9011906390

main90119-06390

9043012005

main90430-12005

9163560618

main91635-60618

91651B0614

main91651-B0614

9331915010

main93319-15010

17 parts on this diagram · 2 diagrams in section
