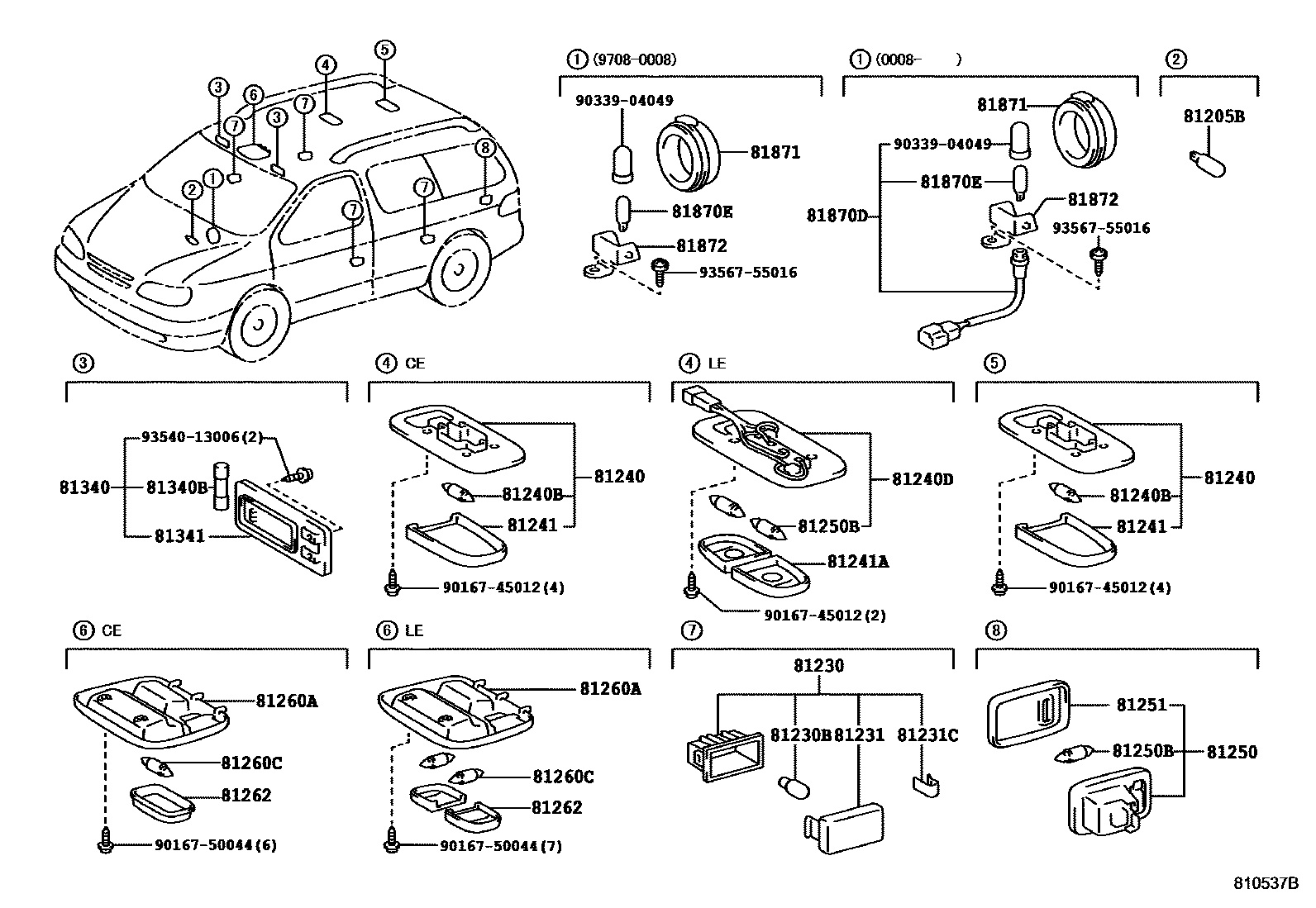

INTERIOR LAMP
81205BBULB, ASH RECEPTACLE LAMP
14V 1.4W
81230LAMP ASSY, COURTESY
W(POWER WINDOW)
81230BBULB(FOR COURTESY LAMP)
12V 3.8W; 12V 3.8W,W(POWER WINDOW)
81231LENS, COURTESY LAMP
W(POWER WINDOW)
81231CCLIP, COURTESY LAMP
W(POWER WINDOW)
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM1#,4#; IVORY,TRIM4#
GRAY,TRIM11,41; GRAY,TRIM41
IVORY,TRIM1#,4#,DONNELLY; IVORY,TRIM4#,DONNELLY
LT.BLUISH GRAY,TRIM11,41,DONNELLY; LT.BLUISH GRAY,TRIM41,DONNELLY
81240BBULB, ROOM LAMP, NO.1
12V 8W
12V 8W,DONNELLY
81240DLAMP ASSY, ROOM, NO.2
IVORY,TRIM4#
LT.BLUISH GRAY,TRIM1#
81241LENS, ROOM LAMP, NO.1
II STANLEY
DONNELLY
81241ALENS, ROOM LAMP, NO.2
81250LAMP ASSY, ROOM, NO.2
81251LENS, ROOM LAMP, NO.2
81260ALAMP ASSY, MAP
W(MOON ROOF)
81260CBULB(FOR MAP LAMP)
12V 8W
81340LAMP ASSY, VANITY
IVORY,TRIM4#
LT.BLUISH GRAY,TRIM1#
81340BBULB (FOR VANITY LAMP)
81341LENS, VANITY LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
81871LENS, KEY ILLUMINATION
W(IMMOBILIZER)
W(IMMOBILIZER)
81872HOUSING, KEY CYLINDER LAMP
9016745012
main90167-45012
9016750044
main90167-50044
9033904049
main90339-04049
9354013006
main93540-13006
9356755016
main93567-55016
28 parts on this diagram · 1 diagram in section
