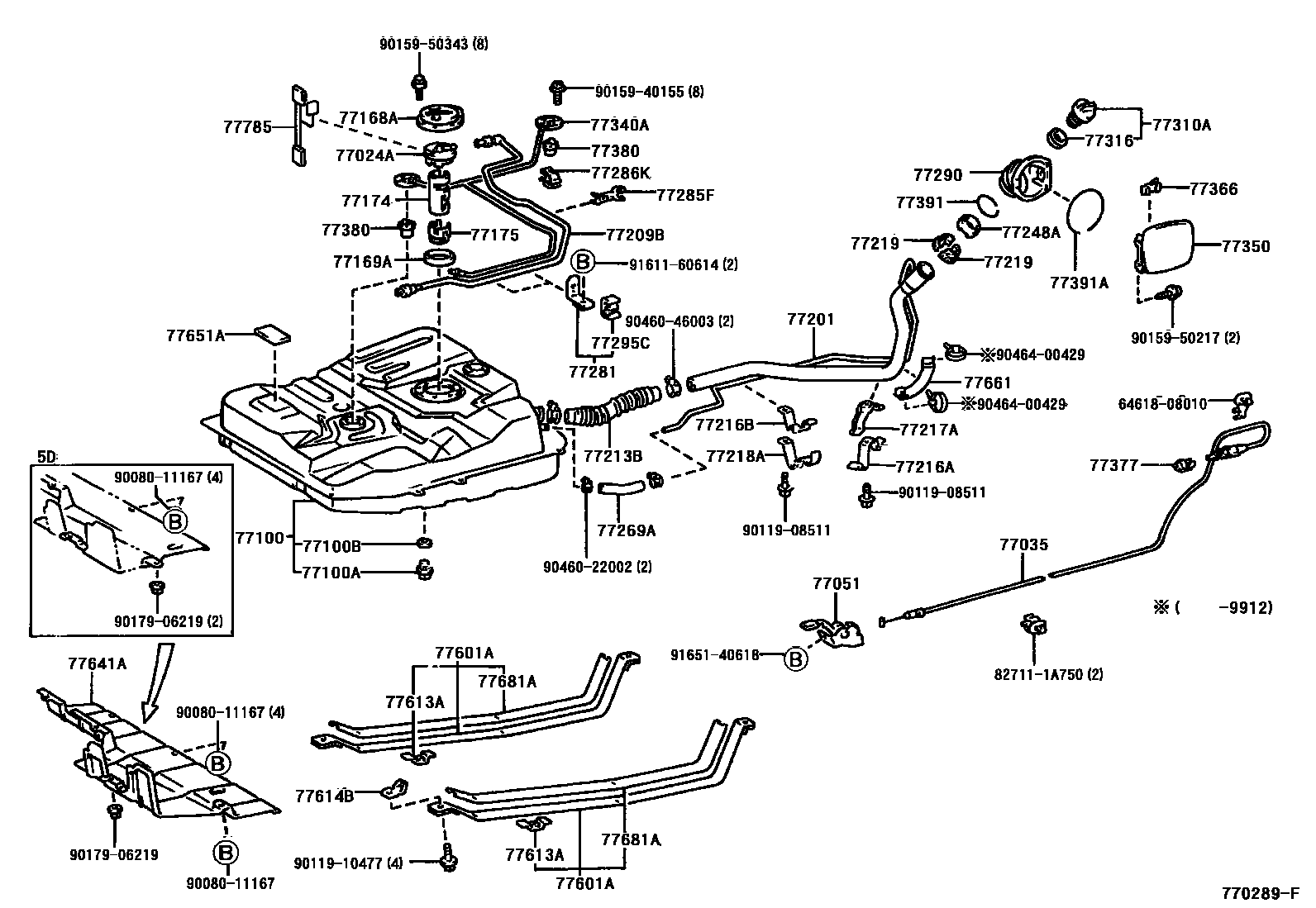

FUEL TANK & TUBE
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77051LEVER SUB-ASSY, FUEL LID OPEN
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77201PIPE SUB-ASSY, FUEL TANK INLET
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77219COVER, FUEL TANK FILLER PIPE
77248AHOLDER, FUEL TANK FILLER PIPE COVER
77269AHOSE, FUEL TANK BREATHER
77281BRACKET, FUEL MAIN TUBE, NO.1
77285FCLAMP, FUEL TUBE, NO.1
NO.1
NO.2
NO.3
NO.4
NO.5
NO.6
NO.7
NO.8
NO.9
NO.10
77286KCLAMP, FUEL TUBE, NO.2
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77295CGROMMET, FUEL TUBE
77310ACAP ASSY, FUEL TANK
W(TETHER),(L)
W(TETHER),(J)
(L)
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77613ABRACKET, FUEL TANK BAND, NO.1
77614BBRACKET, FUEL TANK BAND, NO.2
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77661COVER, FUEL INLET PIPE
77681ASEAT, FUEL TANK BAND
6461808010CLAMP, LUGGAGE LOCK CONTROL CABLE
main64618-08010
827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A750
9008011167
main90080-11167
9011908511
main90119-08511
9011910477
main90119-10477
9015940155
main90159-40155
9015950217
main90159-50217
9015950343
main90159-50343
9017906219
main90179-06219
9046022002
main90460-22002
9046046003
main90460-46003
9046400429
main90464-00429
9161160614
main91611-60614
9165140618
main91651-40618
56 parts on this diagram · 4 diagrams in section
