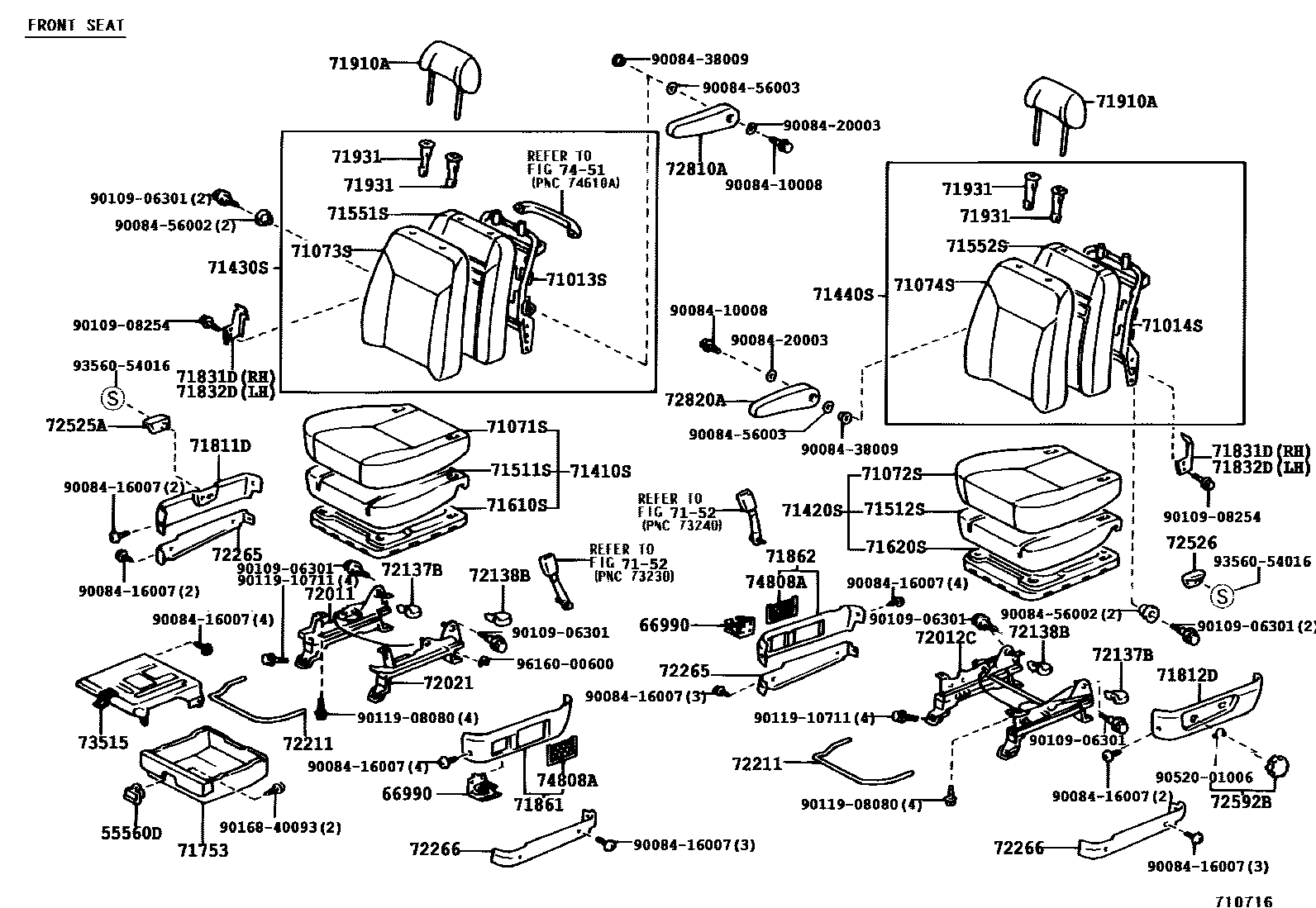

SEAT & SEAT TRACK

0001 1 0002 1 0003 1W(POWER SEAT) 0004 1W(POWER SEAT) 0005 1BENCH SEAT 0006 1BENCH SEAT (CHILD RESTRAINT S0007 1BENCH SEAT 0008 1BENCH SEAT (CHILD RESTRAINT S0009 1CAPTAIN SEAT 0010 1CAPTAIN SEAT 0011 1 0012 1 0013 1

55560DLOCK ASSY, SEAT UNDER TRAY

main55560-95J00-C0iMCL10..WG..4D199708-200008

BLACK,TRIM1#,4#

66990HOLDER ASSY, CUP

main66990-AE010-B0×2iMCL10..WG199708

LT.BLUISH GRAY,TRIM1#

main66990-AE010-E0iMCL10..WG..4D199803-199808

W(CHILD RESTRAINT SYSTEM),MD.OAK,TRIM4#

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-AE010iMCL10199708

main71013-AE020iMCL10200008

W(*80,SIDE)

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-AE010iMCL10..4D199708-200008

main71014-AE020iMCL10..5D199708

main71014-AE030iMCL10200008

W(*80,SIDE)

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-AE010-B0iMCL10..WG..CE199708-200008

LT. BLUISH GRAY,TRIM1#

main71071-AE010-E1iMCL10..CE199708-200008

MEDIUM OAK,TRIM4#

main71071-AE020-B0iMCL10..LE199708-200008

LT. BLUISH GRAY,TRIM1#

main71071-AE020-E1iMCL10..LE199708-200008

MEDIUM OAK,TRIM4#

main71071-AE030-B1iMCL10..LE..USA200008

W(LEATHER SEAT),LT. BLUISH GRAY,TRIM1#

main71071-AE030-E1iMCL10..LE..USA200008

W(LEATHER SEAT),MEDIUM OAK,TRIM4#

main71071-AE040-B0iMCL10..CE200008

BLUISH GRAY-CONFETTI,TRIM1#

main71071-AE040-E0iMCL10..CE200008

OAK,TRIM4#

main71071-AE050-B0iMCL10..LE200008

SEAT = TYPE A-*104,BLUISH GRAY -METROPO,TRIM1#

main71071-AE050-E0iMCL10..LE200008

SEAT = TYPE A-*104,OAK - METROPOLIS,TRIM4#

main71071-AE060-B0iMCL10..LE200008

W(SEAT HEATER & LEATHER SEAT),LT. BLUISH GRAY,TRIM1#

main71071-AE060-E0iMCL10..LE200008

W(SEAT HEATER & LEATHER SEAT),MEDIUM OAK,TRIM4#

main71071-AE070-B1iMCL10..LE..USA200107

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71071-AE070-E1iMCL10..LE..USA200107

SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-AE010-B0iMCL10..WG..CE199708-200008

LT. BLUISH GRAY,TRIM1#

main71071-AE010-E1iMCL10..CE199708-200008

MEDIUM OAK,TRIM4#

main71071-AE020-B0iMCL10..LE199708-200008

LT. BLUISH GRAY,TRIM1#

main71071-AE020-E1iMCL10..LE199708-200008

MEDIUM OAK,TRIM4#

main71071-AE040-B0iMCL10..CE200008

BLUISH GRAY-CONFETTI,TRIM1#

main71071-AE040-E0iMCL10..CE200008

OAK,TRIM4#

main71071-AE050-B0iMCL10..LE200008

SEAT = TYPE A-*104,BLUISH GRAY -METROPO,TRIM1#

main71071-AE050-E0iMCL10..LE200008

SEAT = TYPE A-*104,OAK - METROPOLIS,TRIM4#

main71071-AE070-B1iMCL10..LE..USA200107

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71071-AE070-E1iMCL10..LE..USA200107

SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#

main71072-AE010-B0iMCL10..LE..USA200008

W(LEATHER SEAT),LT. BLUISH GRAY,TRIM1#

main71072-AE010-E0iMCL10..LE..USA200008

W(LEATHER SEAT),MEDIUM OAK,TRIM4#

main71072-AE020-B0iMCL10..LE200008

W(SEAT HEATER & LEATHER SEAT),LT. BLUISH GRAY,TRIM1#

main71072-AE020-E0iMCL10..LE200008

W(SEAT HEATER & LEATHER SEAT),MEDIUM OAK,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-AE010-B0iMCL10..WG..CE199708-200008

LT. BLUISH GRAY,TRIM1#

main71073-AE010-E1iMCL10..CE199708-200008

MEDIUM OAK,TRIM4#

main71073-AE020-B1iMCL10..LE199708-200008

LT. BLUISH GRAY,TRIM1#

main71073-AE020-E2iMCL10..LE199708-200008

MEDIUM OAK,TRIM4#

main71073-AE030-B0iMCL10..LE199708-200008

W(LEATHER SEAT),LT. BLUISH GRAY,TRIM1#

main71073-AE030-E1iMCL10..LE199708-200008

W(LEATHER SEAT),MEDIUM OAK,TRIM4#

main71073-AE040-B0iMCL10..CE200008

BLUISH GRAY-CONFETTI,TRIM1#

main71073-AE040-E0iMCL10..CE200008

OAK,TRIM4#

main71073-AE050-B0iMCL10..LE200008

SEAT = TYPE A-*104,BLUISH GRAY -METROPO,TRIM1#

main71073-AE050-E0iMCL10..LE200008

SEAT = TYPE A-*104,OAK - METROPOLIS,TRIM4#

main71073-AE060-B0iMCL10..CE200008

W(*80,SIDE),BLUISH GRAY-CONFETTI,TRIM1#

main71073-AE060-E0iMCL10..CE200008

W(*80,SIDE),OAK,TRIM4#

main71073-AE070-B0iMCL10..LE200008

SEAT = TYPE A-*104 & W(SIDE AIR BAG),BLUISH GRAY -METROPO,TRIM1#

main71073-AE070-E0iMCL10..LE200008

SEAT = TYPE A-*104 & W(SIDE AIR BAG),OAK - METROPOLIS,TRIM4#

main71073-AE080-B0iMCL10..LE..USA200008

W(*80,SIDE & LEATHER SEAT),LT. BLUISH GRAY,TRIM1#

main71073-AE080-E0iMCL10..LE..USA200008

W(*80,SIDE & LEATHER SEAT),MEDIUM OAK,TRIM4#

main71073-AE090-B0iMCL10..LE200008

W(LEATHER SEAT & SEAT HEATER),LT. BLUISH GRAY,TRIM1#

main71073-AE090-E0iMCL10..LE200008

W(LEATHER SEAT & SEAT HEATER),MEDIUM OAK,TRIM4#

main71073-AE100-B0iMCL10..LE200008

W(*80,SIDE & LEATHER SEAT & SEAT HEATER),LT. BLUISH GRAY,TRIM1#

main71073-AE100-E0iMCL10..LE200008

W(*80,SIDE & LEATHER SEAT & SEAT HEATER),MD.OAK,TRIM4#

main71073-AE110-B0iMCL10..LE..USA200008

W(LEATHER SEAT),LT. BLUISH GRAY,TRIM1#

main71073-AE110-E0iMCL10..LE..USA200008

W(LEATHER SEAT),MEDIUM OAK,TRIM4#

main71073-AE120-B1iMCL10..LE..USA200107

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71073-AE120-E1iMCL10..LE..USA200107

SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#

main71073-AE130-B1iMCL10..LE..USA200107

SEAT = TYPE B-*104 & W(SIDE AIR BAG),BLUISH GRAY,TRIM1#

main71073-AE130-E1iMCL10..LE..USA200107

SEAT = TYPE B-*104 & W(SIDE AIR BAG),MEDIUM OAK,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-AE010-B0iMCL10..WG..4D..CE199708-200008

LT. BLUISH GRAY,TRIM1#

main71074-AE010-E1iMCL10..4D..CE199708-200008

MEDIUM OAK,TRIM4#

main71074-AE020-B0iMCL10..5D..CE199708-200008

LT. BLUISH GRAY,TRIM1#

main71074-AE020-E1iMCL10..5D..CE199708-200008

MEDIUM OAK,TRIM4#

main71074-AE030-B1iMCL10..4D..LE199708-200008

LT. BLUISH GRAY,TRIM1#

main71074-AE030-E2iMCL10..4D..LE199708-200008

MEDIUM OAK,TRIM4#

main71074-AE040-B1iMCL10..5D..LE199708-200008

LT. BLUISH GRAY,TRIM1#

main71074-AE040-E2iMCL10..5D..LE199708-200008

MEDIUM OAK,TRIM4#

main71074-AE050-B0iMCL10..4D..LE199708-200008

W(LEATHER SEAT),LT. BLUISH GRAY,TRIM1#

main71074-AE050-E1iMCL10..4D..LE199708-200008

W(LEATHER SEAT),MEDIUM OAK,TRIM4#

main71074-AE060-B0iMCL10..5D..LE199708-200008

W(LEATHER SEAT),LT. BLUISH GRAY,TRIM1#

main71074-AE060-E1iMCL10..5D..LE199708-200008

W(LEATHER SEAT),MEDIUM OAK,TRIM4#

main71074-AE070-B0iMCL10..CE200008

BLUISH GRAY-CONFETTI,TRIM1#

main71074-AE070-E0iMCL10..CE200008

OAK,TRIM4#

main71074-AE080-B0iMCL10..LE200008

SEAT = TYPE A-*104,BLUISH GRAY -METROPO,TRIM1#

main71074-AE080-E0iMCL10..LE200008

SEAT = TYPE A-*104,OAK - METROPOLIS,TRIM4#

main71074-AE090-B0iMCL10..CE200008

W(*80,SIDE),BLUISH GRAY-CONFETTI,TRIM1#

main71074-AE090-E0iMCL10..CE200008

W(*80,SIDE),OAK,TRIM4#

main71074-AE100-B0iMCL10..LE200008

SEAT = TYPE A-*104 & W(SIDE AIR BAG),BLUISH GRAY -METROPO,TRIM1#

main71074-AE100-E0iMCL10..LE200008

SEAT = TYPE A-*104 & W(SIDE AIR BAG),OAK - METROPOLIS,TRIM4#

main71074-AE110-B0iMCL10..LE..USA200008

W(*80,SIDE & LEATHER SEAT),LT. BLUISH GRAY,TRIM1#

main71074-AE110-E0iMCL10..LE..USA200008

W(*80,SIDE & LEATHER SEAT),MEDIUM OAK,TRIM4#

main71074-AE120-B0iMCL10..LE200008

W(LEATHER SEAT & SEAT HEATER),LT. BLUISH GRAY,TRIM1#

main71074-AE120-E0iMCL10..LE200008

W(LEATHER SEAT & SEAT HEATER),MEDIUM OAK,TRIM4#

main71074-AE130-B0iMCL10..LE200008

W(*80,SIDE & LEATHER SEAT & SEAT HEATER),LT. BLUISH GRAY,TRIM1#

main71074-AE130-E0iMCL10..LE200008

W(*80,SIDE & LEATHER SEAT & SEAT HEATER),MEDIUM OAK,TRIM4#

main71074-AE140-B0iMCL10..LE..USA200008

W(LEATHER SEAT),LT. BLUISH GRAY,TRIM1#

main71074-AE140-E0iMCL10..LE..USA200008

W(LEATHER SEAT),MEDIUM OAK,TRIM4#

main71074-AE150-B1iMCL10..LE..USA200107

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71074-AE150-E1iMCL10..LE..USA200107

SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#

main71074-AE160-B1iMCL10..LE..USA200107

SEAT = TYPE B-*104 & W(SIDE AIR BAG),BLUISH GRAY,TRIM1#

main71074-AE160-E1iMCL10..LE..USA200107

SEAT = TYPE B-*104 & W(SIDE AIR BAG),MEDIUM OAK,TRIM4#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-AE010-B1iMCL10..WG..CE199708-199808

BLUISH GRAY,TRIM1#

main71410-AE010-E1iMCL10..CE199708-199808

OAK,TRIM4#

main71410-AE020-B1iMCL10..LE199708-199808

BLUISH GRAY,TRIM1#

main71410-AE020-E1iMCL10..LE199708-199808

OAK,TRIM4#

main71410-AE030-B1iMCL10..LE199708-199808

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main71410-AE030-E1iMCL10..LE199708-199808

W(LEATHER SEAT),OAK,TRIM4#

main71410-AE040-B0iMCL10..WG..4D..CE199808-200008

BLUISH GRAY,TRIM1#

main71410-AE040-E0iMCL10..4D..CE199808-200008

OAK,TRIM4#

main71410-AE050-B0iMCL10..4D..LE199808-200008

BLUISH GRAY,TRIM1#

main71410-AE050-E0iMCL10..4D..LE199808-200008

OAK.,TRIM4#

main71410-AE060-B0iMCL10..4D..LE199808-200008

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main71410-AE060-E0iMCL10..4D..LE199808-200008

W(LEATHER SEAT),OAK.,TRIM4#

main71410-AE070-B0iMCL10..5D..CE199808-200008

BLUISH GRAY,TRIM1#

main71410-AE070-E0iMCL10..5D..CE199808-200008

OAK.,TRIM4#

main71410-AE080-B0iMCL10..5D..LE199808-200008

BLUISH GRAY,TRIM1#

main71410-AE080-E0iMCL10..5D..LE199808-200008

OAK.,TRIM4#

main71410-AE090-B0iMCL10..5D..LE199808-200008

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main71410-AE090-E0iMCL10..5D..LE199808-200008

W(LEATHER SEAT),OAK.,TRIM4#

main71410-AE100-B0iMCL10..CE200008

BLUISH GRAY,TRIM1#

main71410-AE100-E0iMCL10..CE200008

OAK,TRIM4#

main71410-AE120-B0iMCL10..LE200008

SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#

main71410-AE120-E0iMCL10..LE200008

SEAT = TYPE A-*104,OAK,TRIM4#

main71410-AE140-B0iMCL10..LE200008

W(SEAT HEATER & LEATHER SEAT),BLUISH GRAY,TRIM1#

main71410-AE140-E0iMCL10..LE200008

W(SEAT HEATER & LEATHER SEAT),OAK,TRIM4#

main71410-AE150-B0iMCL10..LE..USA200008

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main71410-AE150-E0iMCL10..LE..USA200008

W(LEATHER SEAT),OAK,TRIM4#

main71410-AE160-B1iMCL10..LE..USA200107

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71410-AE160-E1iMCL10..LE..USA200107

SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71410-AE010-B1iMCL10..WG..CE199708-200008

BLUISH GRAY,TRIM1#

main71410-AE010-E1iMCL10..CE199708-200008

OAK,TRIM4#

main71410-AE020-B1iMCL10..LE199708-200008

BLUISH GRAY,TRIM1#

main71410-AE020-E1iMCL10..LE199708-200008

OAK,TRIM4#

main71410-AE110-B0iMCL10..CE200008

BLUISH GRAY,TRIM1#

main71410-AE110-E0iMCL10..CE200008

OAK,TRIM4#

main71410-AE130-B0iMCL10..LE200008

SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#

main71410-AE130-E0iMCL10..LE200008

SEAT = TYPE A-*104,OAK,TRIM4#

main71410-AE170-B1iMCL10..LE..USA200107

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71410-AE170-E1iMCL10..LE..USA200107

SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#

main71420-AE010-B0iMCL10..LE..USA200008

W(LEATHER SEAT),LT. BLUISH GRAY,TRIM1#

main71420-AE010-E0iMCL10..LE..USA200008

W(LEATHER SEAT),MEDIUM OAK,TRIM4#

main71420-AE030-B0iMCL10..LE200008

W(SEAT HEATER & LEATHER SEAT),BLUISH GRAY,TRIM1#

main71420-AE030-E0iMCL10..LE200008

W(SEAT HEATER & LEATHER SEAT),OAK,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-AE010-B1iMCL10..WG..CE199708-200008

BLUISH GRAY,TRIM1#

main71430-AE010-E1iMCL10..CE199708-200008

OAK,TRIM4#

main71430-AE020-B1iMCL10..LE199708-200008

BLUISH GRAY,TRIM1#

main71430-AE020-E1iMCL10..LE199708-200008

OAK,TRIM4#

main71430-AE030-B1iMCL10..LE199708-200008

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main71430-AE030-E1iMCL10..LE199708-200008

W(LEATHER SEAT),OAK,TRIM4#

main71430-AE040-B0iMCL10..CE200008

BLUISH GRAY,TRIM1#

main71430-AE040-E0iMCL10..CE200008

OAK,TRIM4#

main71430-AE050-B0iMCL10..LE200008

SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#

main71430-AE050-E0iMCL10..LE200008

SEAT = TYPE A-*104,OAK,TRIM4#

main71430-AE060-B0iMCL10..CE200008

W(*80,SIDE),BLUISH GRAY,TRIM1#

main71430-AE060-E0iMCL10..CE200008

W(*80,SIDE),OAK,TRIM4#

main71430-AE070-B0iMCL10..LE200008

SEAT = TYPE A-*104 & W(SIDE AIR BAG),BLUISH GRAY,TRIM1#

main71430-AE070-E0iMCL10..LE200008

SEAT = TYPE A-*104 & W(SIDE AIR BAG),OAK,TRIM4#

main71430-AE080-B0iMCL10..LE..USA200008

W(*80,SIDE & LEATHER SEAT),BLUISH GRAY,TRIM1#

main71430-AE080-E0iMCL10..LE..USA200008

W(*80,SIDE & LEATHER SEAT),OAK,TRIM4#

main71430-AE090-B0iMCL10..LE200008

W(SEAT HEATER & LEATHER SEAT),BLUISH GRAY,TRIM1#

main71430-AE090-E0iMCL10..LE200008

W(SEAT HEATER & LEATHER SEAT),OAK,TRIM4#

main71430-AE100-B0iMCL10..LE200008

W(*80,SIDE & LEATHER SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#

main71430-AE100-E0iMCL10..LE200008

W(*80,SIDE & LEATHER SEAT & SEAT HEATER),OAK,TRIM4#

main71430-AE110-B0iMCL10..LE..USA200008

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main71430-AE110-E0iMCL10..LE..USA200008

W(LEATHER SEAT),OAK,TRIM4#

main71430-AE120-B1iMCL10..LE..USA200107

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71430-AE120-E1iMCL10..LE..USA200107

SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#

main71430-AE130-B1iMCL10..LE..USA200107

SEAT = TYPE B-*104 & W(SIDE AIR BAG),BLUISH GRAY,TRIM1#

main71430-AE130-E1iMCL10..LE..USA200107

SEAT = TYPE B-*104 & W(SIDE AIR BAG),MEDIUM OAK,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-AE010-B1iMCL10..WG..4D..CE199708-200008

BLUISH GRAY,TRIM1#

main71440-AE010-E1iMCL10..4D..CE199708-200008

OAK,TRIM4#

main71440-AE020-B1iMCL10..5D..CE199708-200008

BLUISH GRAY,TRIM1#

main71440-AE020-E1iMCL10..5D..CE199708-200008

OAK,TRIM4#

main71440-AE030-B1iMCL10..4D..LE199708-200008

BLUISH GRAY,TRIM1#

main71440-AE030-E1iMCL10..4D..LE199708-200008

OAK,TRIM4#

main71440-AE040-B1iMCL10..5D..LE199708-200008

BLUISH GRAY,TRIM1#

main71440-AE040-E1iMCL10..5D..LE199708-200008

OAK,TRIM4#

main71440-AE050-B1iMCL10..4D..LE199708-200008

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main71440-AE050-E1iMCL10..4D..LE199708-200008

W(LEATHER SEAT),OAK,TRIM4#

main71440-AE060-B1iMCL10..5D..LE199708-200008

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main71440-AE060-E1iMCL10..5D..LE199708-200008

W(LEATHER SEAT),OAK,TRIM4#

main71440-AE070-B0iMCL10..CE200008

BLUISH GRAY,TRIM1#

main71440-AE070-E0iMCL10..CE200008

OAK,TRIM4#

main71440-AE080-B0iMCL10..LE200008

SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#

main71440-AE080-E0iMCL10..LE200008

SEAT = TYPE A-*104,OAK,TRIM4#

main71440-AE090-B0iMCL10..CE200008

W(*80,SIDE),BLUISH GRAY,TRIM1#

main71440-AE090-E0iMCL10..CE200008

W(*80,SIDE),OAK,TRIM4#

main71440-AE100-B0iMCL10..LE200008

SEAT = TYPE A-*104 & W(SIDE AIR BAG),BLUISH GRAY,TRIM1#

main71440-AE100-E0iMCL10..LE200008

SEAT = TYPE A-*104 & W(SIDE AIR BAG),OAK,TRIM4#

main71440-AE110-B0iMCL10..LE..USA200008

W(*80,SIDE & LEATHER SEAT),BLUISH GRAY,TRIM1#

main71440-AE110-E0iMCL10..LE..USA200008

W(*80,SIDE & LEATHER SEAT),OAK,TRIM4#

main71440-AE120-B0iMCL10..LE200008

W(SEAT HEATER & LEATHER SEAT),BLUISH GRAY,TRIM1#

main71440-AE120-E0iMCL10..LE200008

W(SEAT HEATER & LEATHER SEAT),OAK,TRIM4#

main71440-AE130-B0iMCL10..LE200008

W(*80,SIDE & LEATHER SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#

main71440-AE130-E0iMCL10..LE200008

W(*80,SIDE & LEATHER SEAT & SEAT HEATER),OAK,TRIM4#

main71440-AE140-B0iMCL10..LE..USA200008

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main71440-AE140-E0iMCL10..LE..USA200008

W(LEATHER SEAT),OAK,TRIM4#

main71440-AE150-B1iMCL10..LE..USA200107

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71440-AE150-E1iMCL10..LE..USA200107

SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#

main71440-AE160-B1iMCL10..LE..USA200107

SEAT = TYPE B-*104 & W(SIDE AIR BAG),BLUISH GRAY,TRIM1#

main71440-AE160-E1iMCL10..LE..USA200107

SEAT = TYPE B-*104 & W(SIDE AIR BAG),MEDIUM OAK,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71051-AE010iMCL10..4D199808-200008

main71051-AE020iMCL10..5D199808-200008

main71051-AE030iMCL10200008

main71051-AE040iMCL10..LE200008

W(SEAT HEATER)

main71511-AE010iMCL10199708-199808

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-AE010iMCL10199708

7152SEAT BELT

→ Go to FIG 71-52

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-AE010iMCL10199708

main71551-AE020iMCL10200008

W(*80,SIDE)

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-AE010iMCL10..4D199708-200008

main71552-AE020iMCL10..5D199708

main71552-AE030iMCL10200008

W(*80,SIDE)

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-AE010iMCL10199708

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-AE010iMCL10199708

71753TRAY, FRONT SEAT UNDER

main71753-AE010iMCL10..WG..4D199708-200008

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-AE010-B0iMCL10..WG199708

LT.BLUISH GRAY,TRIM1#

main71811-AE010-E0iMCL10199708

MD.OAK,TRIM4#

main71811-AE020-B1iMCL10200008

W(*80,SIDE),LT. BLUISH GRAY,TRIM1#

main71811-AE020-E1iMCL10200008

W(*80,SIDE),MD.OAK,TRIM4#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-AE010-B0iMCL10..WG199708

BLUISH GRAY,TRIM1#

main71812-AE010-E0iMCL10199708

OAK,TRIM4#

main71812-AE020-B0iMCL10..LE199708

W(POWER SEAT),LT.BLUISH GRAY,TRIM1#

main71812-AE020-E0iMCL10..LE199708

W(POWER SEAT),MD.OAK,TRIM4#

main71812-AE030-B1iMCL10200008

W(*80,SIDE),LT. BLUISH GRAY,TRIM1#

main71812-AE030-E1iMCL10200008

W(*80,SIDE),MD.OAK,TRIM4#

main71812-AE040-B1iMCL10..LE200008

W(*80,SIDE & POWER SEAT),LT. BLUISH GRAY,TRIM1#

main71812-AE040-E1iMCL10..LE200008

W(*80,SIDE & POWER SEAT),MD.OAK,TRIM4#

71831DCOVER, FRONT SEAT HINGE, RH

main71831-AA010×2iMCL10199708

71832DCOVER, FRONT SEAT HINGE, LH

main71832-AA010×2iMCL10199708

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-AE010-B0iMCL10..WG199708

LT.BLUISH GRAY,TRIM1#

main71861-AE010-E0iMCL10199708

MD.OAK,TRIM4#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-AE010-B0iMCL10..WG199708

LT.BLUISH GRAY,TRIM1#

main71862-AE010-E0iMCL10199708

MD.OAK,TRIM4#

main71862-AE020-B0iMCL10..LE199708

W(POWER SEAT),LT.BLUISH GRAY,TRIM1#

main71862-AE020-E0iMCL10..LE199708

W(POWER SEAT),MD.OAK,TRIM4#

71910AHEADREST ASSY, FRONT SEAT

main71910-AE010-B1×2iMCL10..WG..CE199708-199811

BLUISH GRAY,TRIM1#

main71910-AE010-E1×2iMCL10..CE199708-199811

OAK,TRIM4#

main71910-AE011-B1×2iMCL10..WG..CE199811-200008

BLUISH GRAY,TRIM1#

main71910-AE011-E1×2iMCL10..CE199811-200008

OAK,TRIM4#

main71910-AE020-B1×2iMCL10..LE199708-200008

BLUISH GRAY,TRIM1#

main71910-AE020-E1×2iMCL10..LE199708-200008

OAK,TRIM4#

main71910-AE030-B1×2iMCL10..LE199708

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main71910-AE030-E1×2iMCL10..LE199708

W(LEATHER SEAT),OAK,TRIM4#

main71910-AE040-B0×2iMCL10..CE200008

BLUISH GRAY,TRIM1#

main71910-AE040-E0×2iMCL10..CE200008

OAK,TRIM4#

main71910-AE050-B0×2iMCL10..LE200008

SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#

main71910-AE050-E0×2iMCL10..LE200008

SEAT = TYPE A-*104,OAK,TRIM4#

main71910-AE070-B1×2iMCL10..LE..USA200107

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71910-AE070-E1×2iMCL10..LE..USA200107

SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-44010-B7×2iMCL10..WG199708

W(LOCK),LT.BLUISH GRAY,TRIM1#

main71930-44010-E3×2iMCL10199708

W(LOCK),MD.OAK,TRIM4#

main71931-32020-E6×2iMCL10199708

W/O(LOCK),MD.OAK,TRIM4#

main71931-32020-P4×2iMCL10..WG199708

W/O(LOCK),LT.BLUISH GRAY,TRIM1#

72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

main72011-08010iMCL10199708

72012CADJUSTER SUB-ASSY, FRONT SEAT, LH

main72020-08010iMCL10..LE199708

W(POWER SEAT)

main72020-08020iMCL10199708

72021ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

main72021-08010iMCL10199708

72137BCOVER, SEAT TRACK, RH

main72137-AE010-B0×2iMCL10..WG199708

LT.BLUISH GRAY,TRIM1#

main72137-AE010-E0×2iMCL10199708

MD.OAK,TRIM4#

72138BCOVER, SEAT TRACK, LH

main72137-AE010-B0×2iMCL10..WG199708

LT.BLUISH GRAY,TRIM1#

main72137-AE010-E0×2iMCL10199708

MD.OAK,TRIM4#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-08010iMCL10; MCL10..LE199708

W(POWER SEAT)

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-AE010-B0iMCL10..LE; MCL10..WG199708

LT.BLUISH GRAY,TRIM1#; W(POWER SEAT),LT.BLUISH GRAY,TRIM1#,RH

main72265-AE010-E0iMCL10; MCL10..LE199708

MD.OAK,TRIM4#; W(POWER SEAT),MD.OAK,TRIM4#,RH

main72265-AE020-B0iMCL10..LE199708

W(POWER SEAT),LT.BLUISH GRAY,TRIM1#,LH

main72265-AE020-E0iMCL10..LE199708

W(POWER SEAT),MD.OAK,TRIM4#,LH

72266COVER, SEAT TRACK UPPER RAIL, LH

main72266-AE010-B0iMCL10..WG199708

LT.BLUISH GRAY,TRIM1#,RH

main72266-AE010-E0iMCL10..LE200008

W(POWER SEAT),MD.OAK,TRIM4#,RH

main72266-AE020-B0iMCL10..LE199708

W(POWER SEAT),LT.BLUISH GRAY,TRIM1#,LH

main72266-AE020-E0iMCL10..LE199708

W(POWER SEAT),MD.OAK,TRIM4#,LH

main72266-AE030-B0iMCL10..WG199708

LT.BLUISH GRAY,TRIM1#,LH

main72266-AE030-E0iMCL10199708

MD.OAK,TRIM4#,LH

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-AA010-B1iMCL10..WG199708

LT.BLUISH GRAY,TRIM1#

main72525-AA010-E0iMCL10199708

MD.OAK,TRIM4#

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-AA010-B1iMCL10..WG199708

LT.BLUISH GRAY,TRIM1#

main72526-AA010-E0iMCL10199708

MD.OAK,TRIM4#

72592BKNOB,RECLINING ADJUSTER, LH

main72457-AA010-B1iMCL10..WG199708

LT.BLUISH GRAY,TRIM1#

main72457-AA010-E0iMCL10199708

MD.OAK,TRIM4#

72810AARMREST ASSY, SEAT, RH

main72820-AE010-B2iMCL10..WG199708-200008

BLUISH GRAY,TRIM1#

main72820-AE010-B4iMCL10200008

BLUISH GRAY,TRIM1#

main72820-AE010-E2iMCL10199708-200008

OAK,TRIM4#

main72820-AE010-E4iMCL10200008

OAK,TRIM4#

main72820-AE020-B1iMCL10..LE199708

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main72820-AE020-E1iMCL10..LE199708

W(LEATHER SEAT),OAK,TRIM4#

72820AARMREST ASSY, SEAT, LH

main72810-AE010-B3iMCL10..WG199708-200008

BLUISH GRAY,TRIM1#

main72810-AE010-B5iMCL10200008

BLUISH GRAY,TRIM1#

main72810-AE010-E3iMCL10199708-200008

OAK,TRIM4#

main72810-AE010-E5iMCL10200008

OAK,TRIM4#

main72810-AE020-B1iMCL10..LE199708

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main72810-AE020-E1iMCL10..LE199708

W(LEATHER SEAT),OAK,TRIM4#

73515RAIL, FRONT SEAT UNDER TRAY, NO.1

main73507-AE010iMCL10..WG..4D199708-199808

7451ARMREST & VISOR

→ Go to FIG 74-51

74808ABOX SUB-ASSY, SEAT TRASH

main74808-AE010-B0×2iMCL10..WG199708

LT.BLUISH GRAY,TRIM1#

main74808-AE010-E0×2iMCL10199708

MD.OAK,TRIM4#

9008410008

main90084-10008

9008416007

main90084-16007

9008420003

main90084-20003

9008438009

main90084-38009

9008456002

main90084-56002

9008456003

main90084-56003

9010906301

main90109-06301

9010908254

main90109-08254

9011908080

main90119-08080

9011910711

main90119-10711

9016840093

main90168-40093

9052001006

main90520-01006

9356054016

main93560-54016

9616000600

main96160-00600

58 parts on this diagram · 13 diagrams in section
